FMAM63005

Overview

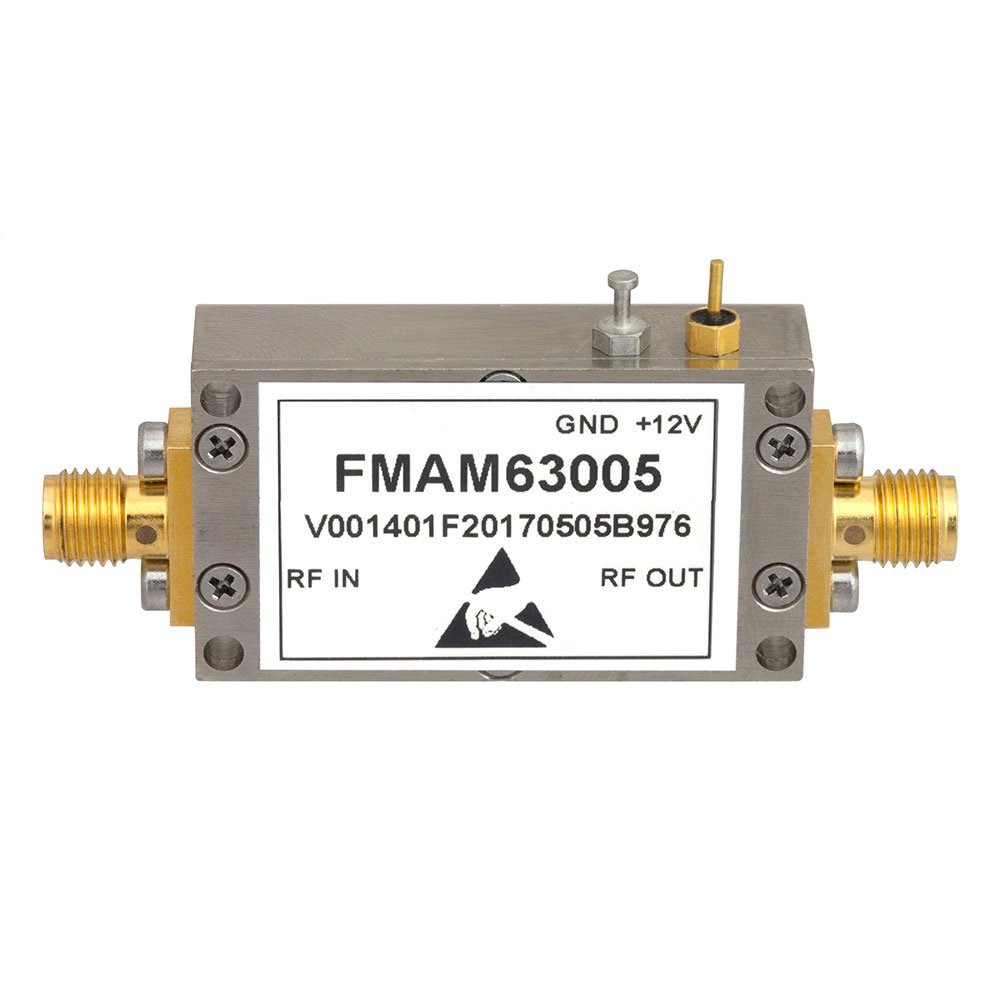

The FMAM63005 is an input-protected low noise RF coaxial amplifier manufactured by Fairview Microwave. It operates within a frequency range of 900 MHz to 1.2 GHz and features a typical noise figure of 1.2 dB. The component utilizes SMA connectors for signal interfacing. Designed for general-purpose applications, it provides stable amplification characteristics suitable for sensitive radio frequency measurement systems and communication equipment requiring minimal signal degradation.

Feature Summary

• Input protection circuitry integrated to safeguard against reverse polarity or overvoltage conditions
• Low noise figure specification optimized for preserving weak signal integrity in the operating band

Applications

• RF signal chain conditioning in test and measurement instruments
• Communication system front-end amplification
• General purpose low noise amplification modules

Procurement Notes

Verify the specific datasheet version provided by Fairview Microwave to confirm exact gain and power specifications not detailed in summary listings. Ensure interface compatibility with existing SMA connector systems. Confirm operational temperature ranges align with intended deployment environments before finalizing procurement decisions.

Selection Notes

Select this model when a low noise figure near 1.2 dB is required within the 900 MHz to 1.2 GHz spectrum. Consider the input protection feature for environments prone to electrical anomalies. Compare against other Fairview models like the FMAM63012 if broader frequency coverage up to 1 GHz is needed, noting that FMAM63005 targets a slightly higher upper frequency limit.

Part Context

This component belongs to Fairview Microwave's line of RF amplifiers designed for signal conditioning. It complements their portfolio of filters, cables, and calibration kits. The FMAM63005 specifically addresses needs for low-noise amplification in the UHF to lower microwave range, differing from their higher frequency synthesizers or cavity filters.

Replacement Considerations

No direct public substitute part numbers are confirmed in available documentation. Evaluate the FMAM63012 for similar low-noise requirements if frequency overlap is acceptable, though its range differs. Consult manufacturer documentation for any updated series replacements.
