FMAM63006

Overview

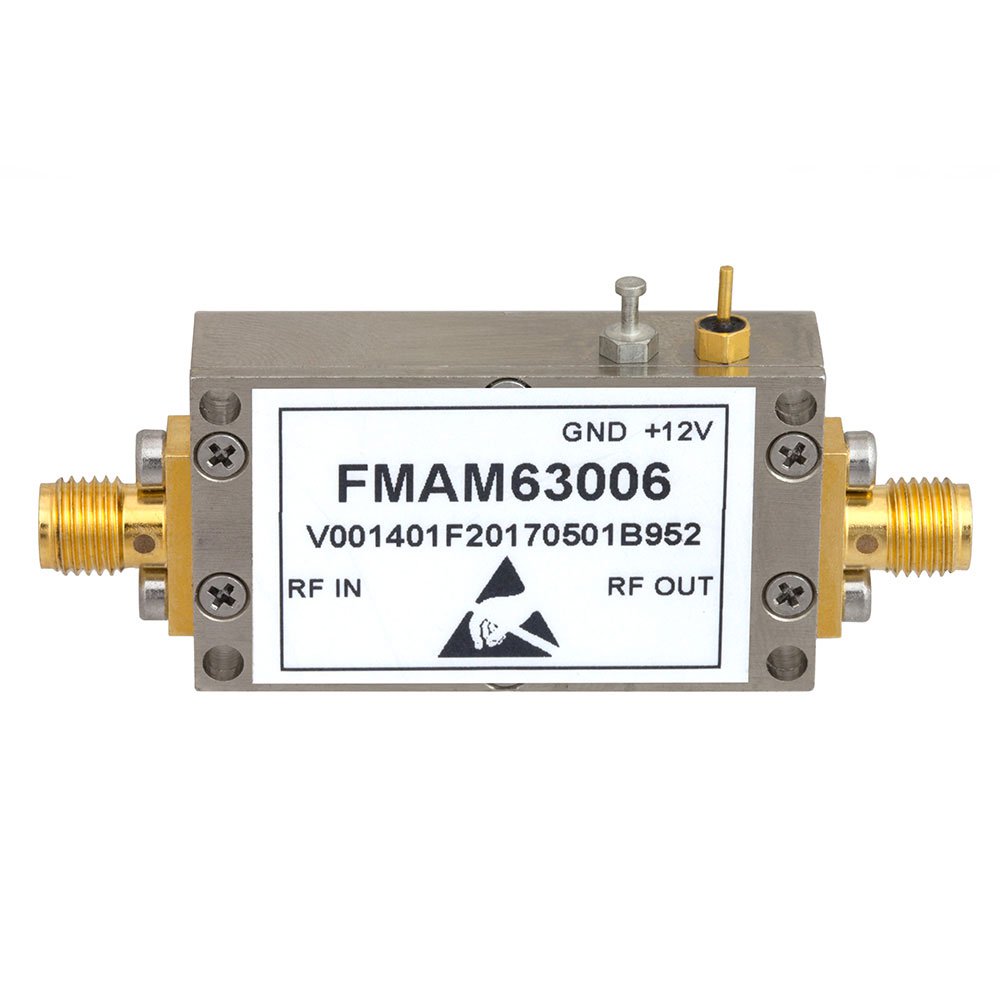

The FMAM63006 is a low noise amplifier manufactured by Fairview Microwave. It operates within a frequency range of 1 GHz to 1.4 GHz. The device provides a gain of 30 dB and features an input protection mechanism. Key electrical specifications include a noise figure of 1.2 dB, a P1dB compression point of 10 dBm, and an SMA connector interface.

Feature Summary

• Input protected low noise amplifier design
• SMA connector interface
• Operating frequency range from 1 GHz to 1.4 GHz

Applications

• RF signal amplification in communication systems
• Low noise applications requiring high gain
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet for the FMAM63006 model to confirm current availability and technical specifications. Ensure that the operating conditions match the required frequency range and power levels. Check for any regional distribution restrictions or supply limitations before placing orders. Confirm connector types and package details align with system requirements.

Selection Notes

Select the FMAM63006 when a low noise amplifier is needed for the 1 GHz to 1.4 GHz band. Consider its 30 dB gain and 1.2 dB noise figure for sensitive receiver stages. Verify that the input protection feature meets system safety needs. Compare performance against other models like FMAM63002 if different frequency ranges are required.

Part Context

This component belongs to the Fairview Microwave RF Amplifier product line. It is categorized under Wireless & RF Integrated Circuits. The manufacturer specializes in RF cable assemblies and amplifiers. This specific model is designed for low noise applications with defined gain characteristics.

Replacement Considerations

FMAM63002 offers similar low noise amplifier functionality but operates in a different frequency range (30 MHz to 1.5 GHz). Verify frequency compatibility and gain requirements when considering substitutes. Other models may have different noise figures or power handling capabilities.
