FMAM63011

Overview

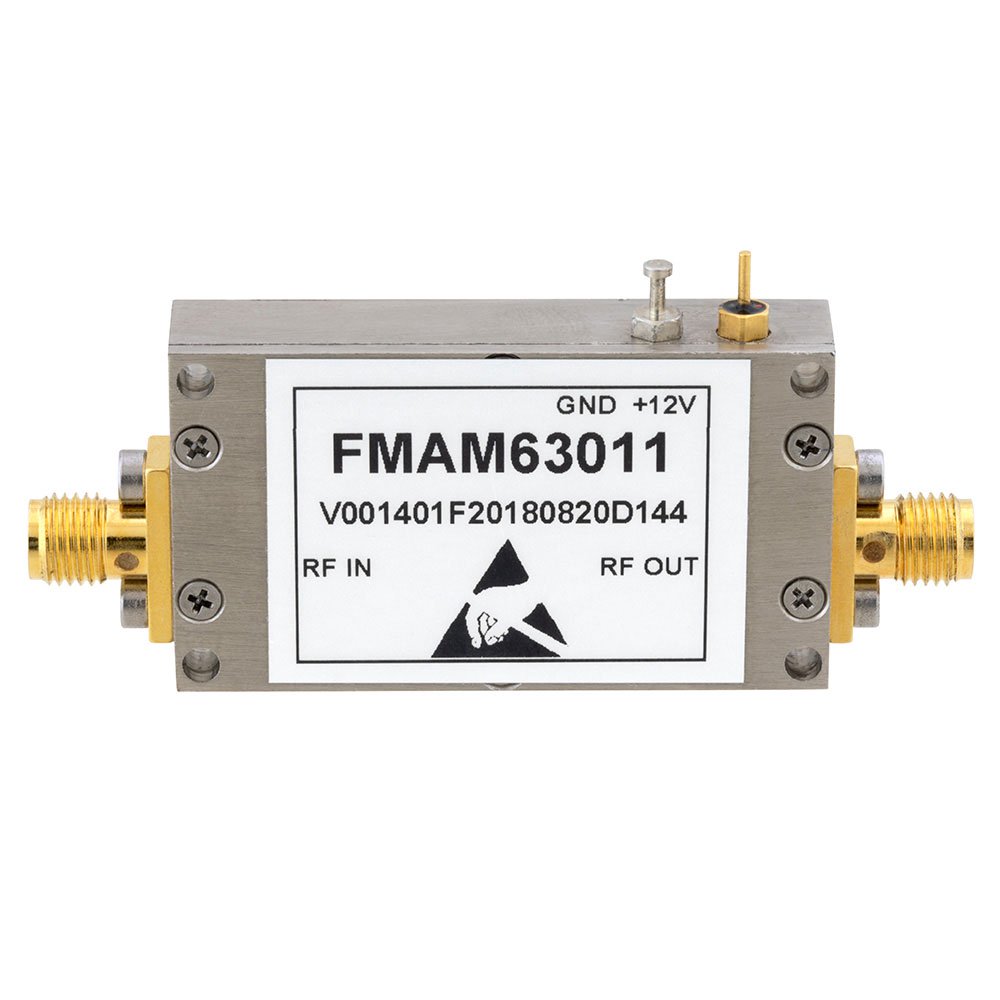

The FMAM63011 is a millimeter-wave broadband low noise amplifier module manufactured by Fairview Microwave. Designed for radar applications, it operates within the frequency range of 3.1 GHz to 3.5 GHz. The component provides a gain of 35 dB with a noise figure of 0.85 dB and a P1dB output power of 13 dBm.

Feature Summary

• Broadband amplification capability optimized for millimeter-wave radar systems
• Low noise figure performance ensuring high signal integrity in sensitive reception chains
• Integrated module design simplifying integration into RF front-end architectures

Applications

• Radar receiver front-ends
• Millimeter-wave communication systems
• Test and measurement equipment requiring low noise amplification

Procurement Notes

Verify the specific operating frequency range and electrical parameters against the official Fairview Microwave datasheet before procurement. Confirm interface compatibility and thermal management requirements for your specific application environment. Ensure that the supplier provides authentic components with traceable documentation to guarantee performance reliability.

Selection Notes

Select this module when a compact solution is required for X-band radar or similar millimeter-wave applications. Consider the 0.85 dB noise figure for sensitivity-critical designs. Evaluate the 35 dB gain against system link budget requirements. Ensure the 13 dBm P1dB meets linearity needs without excessive compression.

Part Context

Fairview Microwave specializes in RF and microwave components, including amplifiers and cable assemblies. The FMAM63011 belongs to their portfolio of integrated RF modules designed for specialized industrial and defense applications. It complements other wideband amplifiers in their lineup, offering a balance of gain and noise performance for specific frequency bands.

Replacement Considerations

No direct public substitute part numbers are confirmed for the FMAM63011. Engineers should evaluate alternative low noise amplifiers from Fairview Microwave or other manufacturers that match the 3.1–3.5 GHz frequency range, 35 dB gain, and 0.85 dB noise figure specifications.
