FMAM63013

Overview

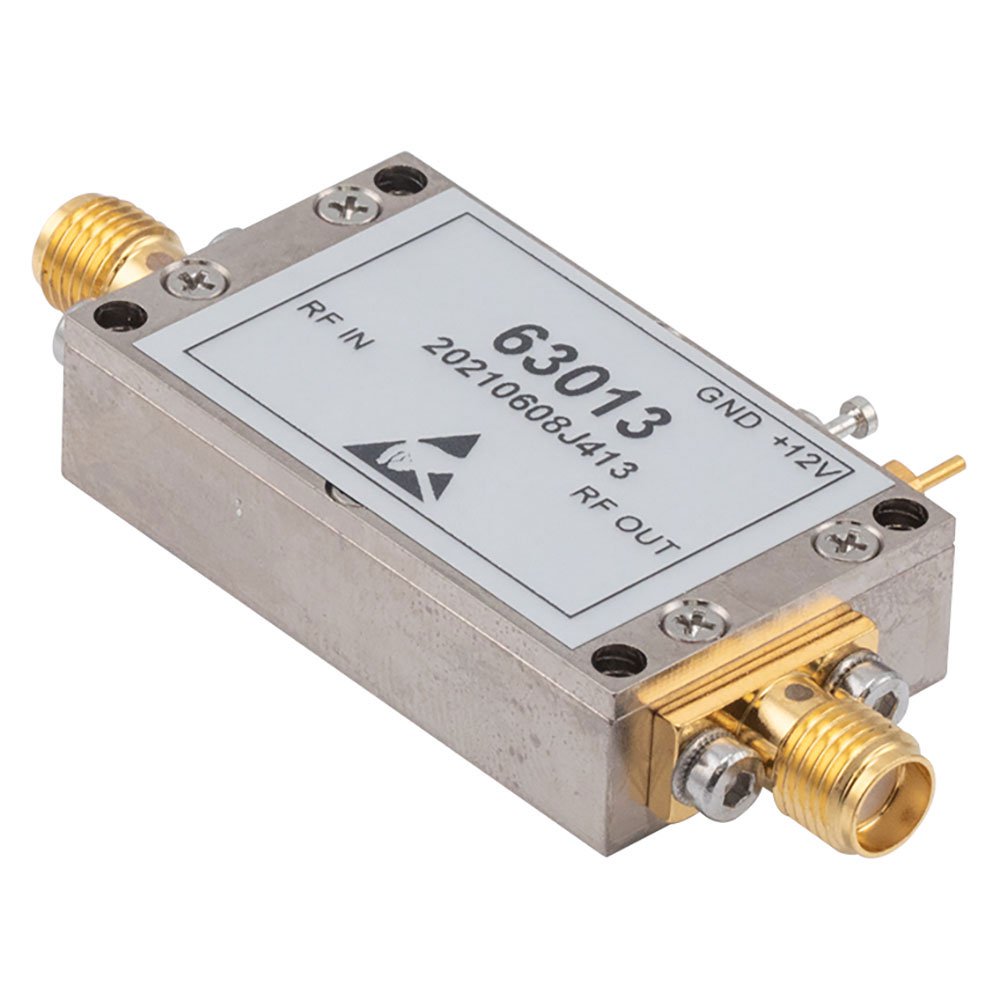

The FMAM63013 is a low noise amplifier module manufactured by Fairview Microwave. It utilizes GaAs technology and operates within a frequency range of 0.001 MHz to 1 GHz. The device provides 40 dB gain with a 1 dB noise figure. It features input protection and delivers 15 dBm P1dB output power. Electrical requirements include a supply voltage of 15.5 V and a current draw of 900 mA. The unit is equipped with SMA connectors for input and output interfaces.

Feature Summary

• Integrated input protection circuitry
• Low noise figure performance
• High gain amplification capability

Applications

• Radar systems
• Wireless communication infrastructure
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for the FMAM63013 before integration, as manufacturer documentation may vary. Confirm that the required operating voltage and current specifications align with your system power design. Ensure SMA connector compatibility with existing PCB layouts or cable assemblies. Review thermal management requirements for continuous operation at specified power levels.

Selection Notes

Select this component when a wideband low noise solution is required up to 1 GHz. The integrated input protection offers robustness against signal anomalies. Compare the 40 dB gain and 1 dB noise figure against alternative modules to ensure it meets system sensitivity targets. Verify that the physical dimensions and mounting style fit the available enclosure space.

Part Context

This part belongs to Fairview Microwave's RF amplifier module series. These modules are designed for ease of integration into larger RF front-end architectures. The product line focuses on providing reliable performance in demanding wireless environments. The FMAM63013 specifically addresses applications requiring high gain and low noise over a broad frequency span.
