FMAM63020

Overview

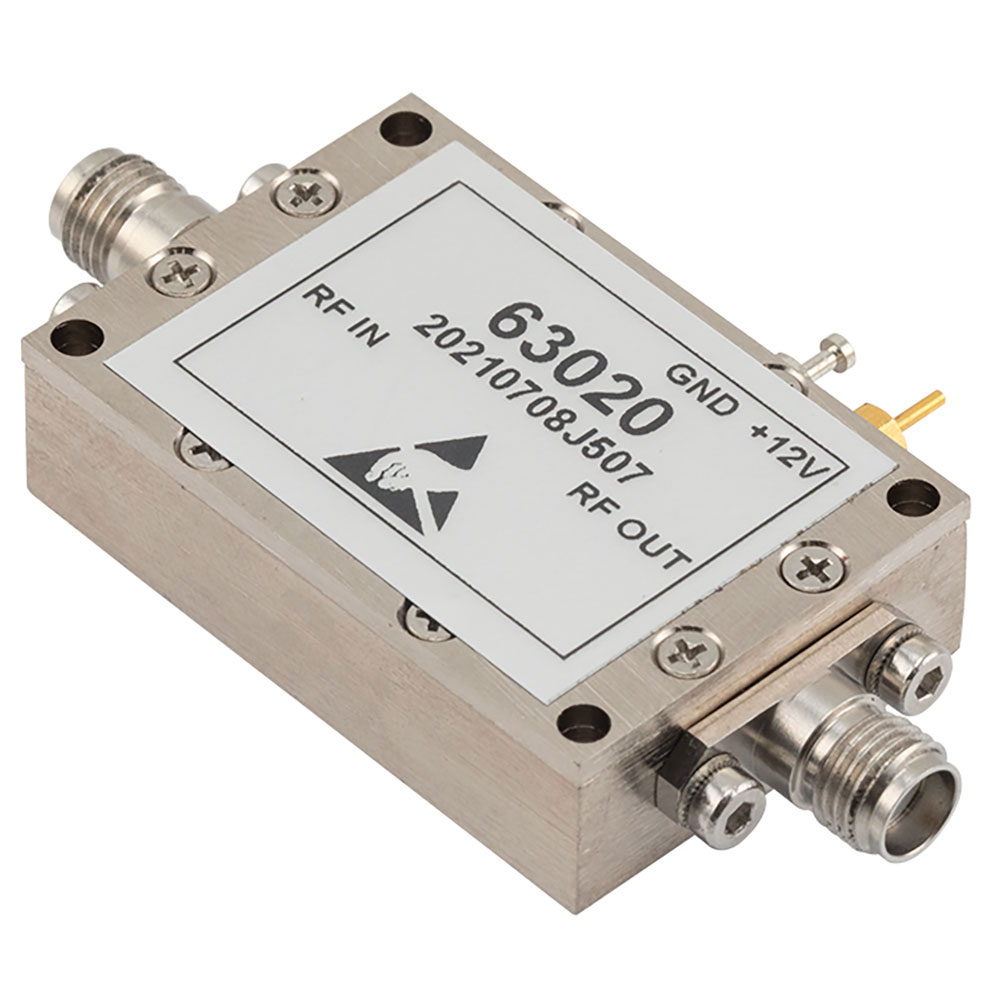

The FMAM63020 is a low noise amplifier manufactured by Fairview Microwave, designed for RF signal processing within the frequency range of 100 MHz to 18 GHz. It provides a gain of 33 dB and features a noise figure of 3.5 dB. The unit delivers a saturated output power (Psat) of 25 dBm and includes input protection mechanisms. It utilizes SMA connectors for interfacing and is packaged in a bag.

Feature Summary

• Low noise amplification with 3.5 dB noise figure
• Input protection circuitry integrated
• Broadband operation from 100 MHz to 18 GHz

Applications

• RF signal chain conditioning
• Test and measurement instrumentation
• Communication system front-ends

Procurement Notes

Verify the specific datasheet version and connector type compatibility before integration. Confirm that the SMA interface matches your system requirements. Check for any regional distribution restrictions or limited availability status as indicated by current supplier listings. Ensure environmental conditions align with operational specifications.

Selection Notes

Select this component when high linearity and low noise are required across a wide microwave bandwidth. The 33 dB gain suits applications needing significant signal boost without excessive noise degradation. Input protection adds robustness against potential source mismatches or overloads in sensitive RF environments.

Part Context

This model belongs to Fairview Microwave's RF amplifier portfolio, specifically targeting broadband low-noise performance. It complements other models like the FMAM63002 and FMAM63026, which cover different frequency ranges and noise characteristics, providing options for diverse RF design needs.

Replacement Considerations

Consider the FMAM63002 for lower frequency applications up to 1.5 GHz with similar gain but higher noise. For ultra-wideband needs extending to 40 GHz, evaluate the FMAM63026, though it differs significantly in frequency coverage and connector type.
