FMAM7009

Overview

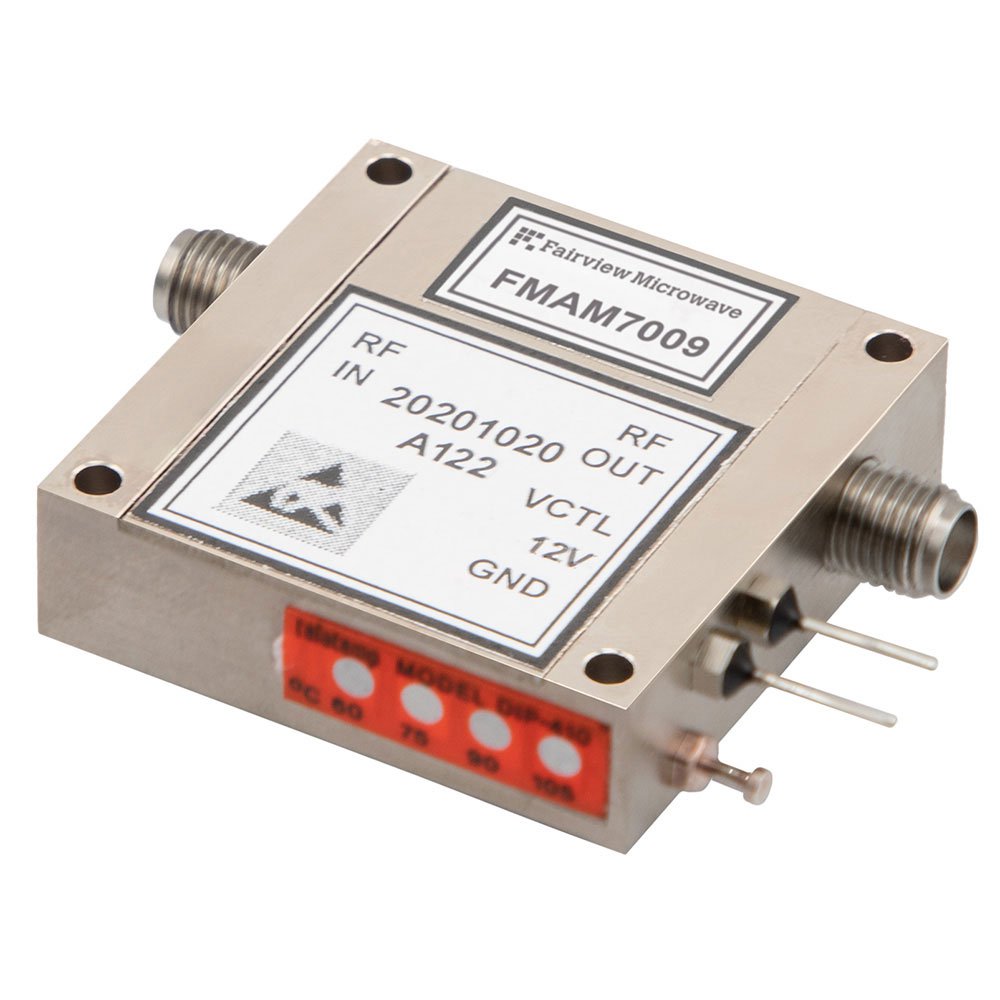

The FMAM7009 is a variable gain control amplifier manufactured by Fairview Microwave, utilizing GaAs FET technology. It operates within a frequency range of 1 GHz to 18 GHz and provides a nominal gain of 40 dB with a 20 dB variable gain control range. The device features a P1dB compression point of +15 dBm and requires a supply voltage between 12 V and 16 V, drawing approximately 315 mA of current. It utilizes SMA connectors for input and output interfaces.

Feature Summary

• Incorporates GaAs FET technology for high-frequency performance across the 1 GHz to 18 GHz spectrum.
• Provides adjustable signal amplification through a 20 dB variable gain control mechanism while maintaining a base gain of 40 dB.
• Designed with SMA connectors for straightforward integration into RF test and measurement setups.

Applications

• RF test and measurement instrumentation
• Wireless communication system prototyping
• Signal conditioning in laboratory environments

Procurement Notes

Verify component authenticity through official Fairview Microwave channels or authorized distributors. Confirm that the specific unit matches the FMAM7009 designation and includes necessary documentation. Ensure compatibility with required voltage levels and connector types before finalizing acquisition. Check for any regional distribution restrictions or availability updates from the manufacturer.

Selection Notes

Select this component when a wideband variable gain solution is required between 1 GHz and 18 GHz. Consider the GaAs FET technology for its performance characteristics in this frequency range. Evaluate the 20 dB control range against system dynamic requirements. Ensure the SMA interface aligns with existing circuit board or cable infrastructure.

Part Context

This part belongs to Fairview Microwave's portfolio of radio frequency amplifiers, specifically designed for variable gain applications. It complements other fixed-gain and low-noise amplifiers in their lineup, offering tunable amplification capabilities for diverse RF engineering needs.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Fairview Microwave directly for potential cross-reference options or updated product line replacements.
