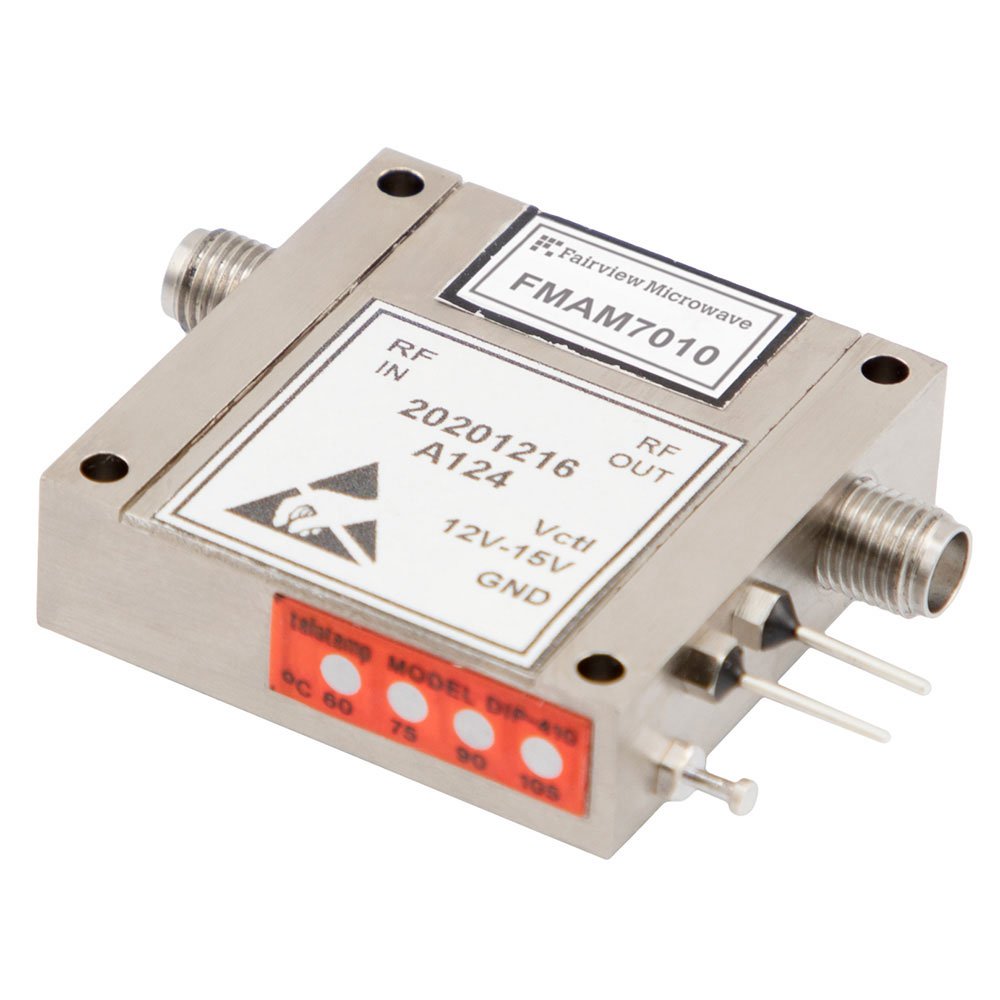

FMAM7010

$3,881.63

Description：VAR GAIN AMP SMA 1-26.5 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:45c4728117fd Category: RF Amplifiers Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：VAR GAIN AMP SMA 1-26.5 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency：1GHz ~ 26.5GHz
P1dB：8dBm
Gain：43dB
Noise Figure：5.5dB
RF Type：General Purpose
Voltage - Supply：12V ~ 16V
Current - Supply：350mA
Test Frequency：-
Mounting Type：Chassis Mount
Package / Case：Module, SMA Connectors
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FMAM7010

Overview

The FMAM7010 is a variable gain control amplifier manufactured by Fairview Microwave, utilizing GaAs FET technology. It operates within a frequency range of 1 GHz to 26.5 GHz and features SMA connectors. The device provides a nominal gain of 40 dB with 20 dB of variable gain control capability. Key performance metrics include a +13 dBm P1dB output power level. This component is designed for applications requiring precise signal amplitude adjustment across microwave frequencies.

Feature Summary

Utilizes GaAs FET technology for reliable microwave operation
Provides 20 dB of variable gain control capability
Features SMA connector interface for easy integration

Applications

Microwave communication systems
Signal processing equipment
Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet version and connector orientation before procurement. Confirm that the SMA interface matches your system requirements. Ensure operating conditions align with the specified frequency and power limits. Check for any recent manufacturing updates or pinout changes in official documentation.

Selection Notes

Select this component when variable gain control is required between 1 GHz and 26.5 GHz. Consider the GaAs FET technology for its performance characteristics at these frequencies. Evaluate the 40 dB nominal gain against system link budget requirements. Ensure the SMA interface compatibility with existing RF infrastructure.

Part Context

Fairview Microwave produces specialized RF components for high-frequency applications. The FMAM7010 belongs to their variable gain amplifier series, designed for precision signal control. These amplifiers are typically used in systems requiring dynamic range adjustment. The product line focuses on reliability and performance in microwave environments.
