FMANMOB1007-RSP is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is ANTENNA SMA144 MHZ-430 MHZ. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for FMANMOB1007-RSP
- Description：ANTENNA SMA144 MHZ-430 MHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- RF Family/Standard：WiFi
- Frequency Group：Wide Band
- Frequency (Center/Band)：287MHz
- Frequency Range：144MHz ~ 430MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：5.5dBi
- Features：Cable - 3.05m
- Termination：RP-SMA
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Base Mount
- Height (Max)：34.400" (873.76mm)
- Applications：Wi-Fi, WLAN
- Power - Max：50 W
Antennas RF datasheet and documents for FMANMOB1007-RSP
Antennas RF Overview

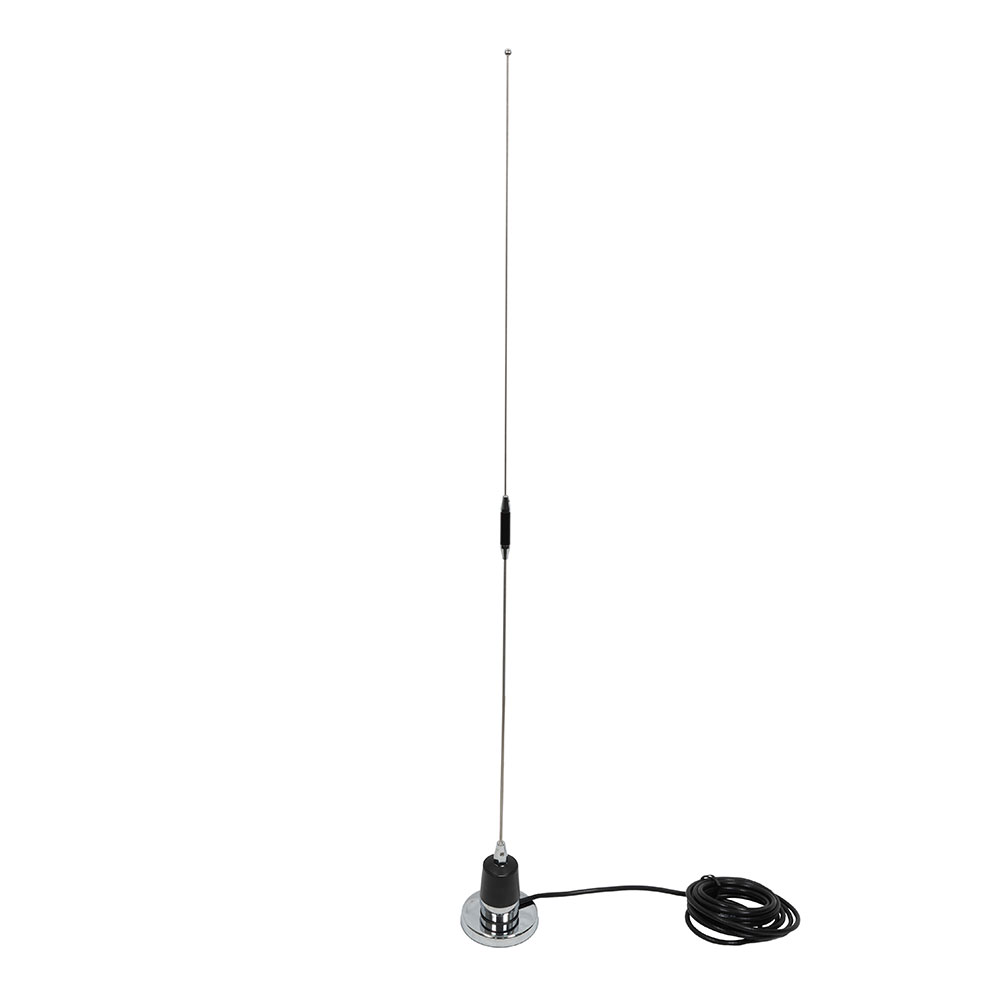

The FMANMOB1007-RSP is an omnidirectional antenna manufactured by Fairview Microwave, designed for operation within the 144 MHz to 430 MHz frequency range. It provides a gain of 5.5 dBi and utilizes a reverse polarity SMA plug connector. The unit features an NMO magnetic mount for temporary installation and is rated for outdoor use.
Antennas RF Feature Summary
- Omni-directional radiation pattern for broad coverage
- Magnetic NMO mount for temporary installation
- Outdoor rated construction
- Reverse polarity SMA plug connector
Antennas RF Applications
- Mobile radio communications
- Two-way radio systems
- Marine VHF applications
- Temporary field deployment
Antennas RF Procurement Notes
Verify connector type compatibility with existing equipment due to the reverse polarity SMA plug configuration. Confirm that the magnetic NMO mount is suitable for the intended mounting surface and environmental conditions. Ensure the operating frequency range aligns with system requirements.
Antennas RF Selection Notes
Select this model when a temporary, high-gain solution is required for VHF/UHF bands. The magnetic mount facilitates quick setup without permanent fixtures. Consider the reverse polarity connector if standard SMA interfaces are not available on the target device.
Antennas RF Part Context
This component belongs to Fairview Microwave's line of RF antennas. It is categorized under mobile and outdoor antennas, distinct from fixed indoor or specialized directional arrays. The product supports general communication needs in the specified frequency band.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Check for compatible antennas with matching frequency ranges and connector types if direct replacement is needed.
