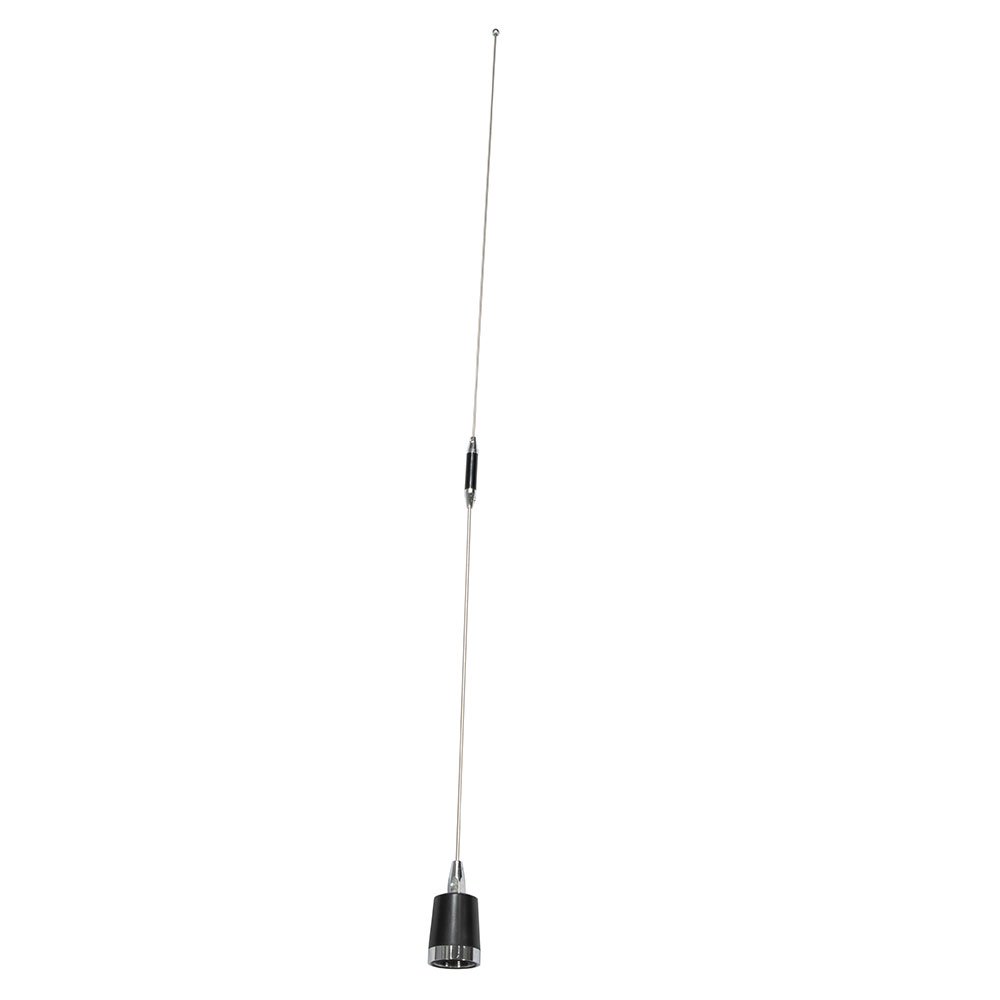

FMANOM1085

$36.02

Description：ANTENNA NMO143 MHZ-432 MHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:c4a33a401ec7 Category: RF Antennas Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMANOM1085 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is ANTENNA NMO143 MHZ-432 MHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FMANOM1085

Description：ANTENNA NMO143 MHZ-432 MHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
RF Family/Standard：General ISM
Frequency Group：VHF (f < 300MHz)
Frequency (Center/Band)：287.5MHz
Frequency Range：143MHz ~ 432MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：5.5dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：NMO Male
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Base Mount
Height (Max)：33.430" (849.12mm)
Applications：General Purpose
Power - Max：100 W

Antennas RF datasheet and documents for FMANOM1085

FMANOM1085

Antennas RF Overview

The FMANOM1085 is an omnidirectional antenna manufactured by Fairview Microwave, designed for operation within the 144 MHz to 430 MHz frequency range. It provides a gain of 5.5 dBi and utilizes an NMO connector interface. The unit features a stainless steel reflector construction and supports vertical polarization. This component is packaged individually in a bag.

Antennas RF Feature Summary

Omnidirectional radiation pattern with vertical polarization
Stainless steel reflector construction
NMO connector interface

Antennas RF Applications

Vehicle-mounted radio communications
Marine communication systems
Mobile two-way radio installations

Antennas RF Procurement Notes

Verify the specific datasheet version before procurement, as product specifications may be subject to change. Confirm that the NMO connector type matches the mounting base on the target vehicle or platform. Ensure the operating frequency range aligns with the intended transmission requirements. Check current supply status through authorized distributors, as availability may vary.

Antennas RF Selection Notes

Select this model when a compact omnidirectional solution is required for VHF/UHF mobile applications. The NMO connector ensures compatibility with standard magnetic or fixed mounts. Consider the 5.5 dBi gain for balanced coverage in urban or open environments. Verify environmental sealing needs if exposed to harsh weather conditions.

Antennas RF Part Context

This part belongs to the Fairview Microwave antenna portfolio, which includes various RF components for wireless applications. The FMANOM series typically focuses on mobile and vehicular mounting solutions. It is distinct from broadband or high-gain directional antennas offered by the manufacturer.
