FMAT9007

Overview

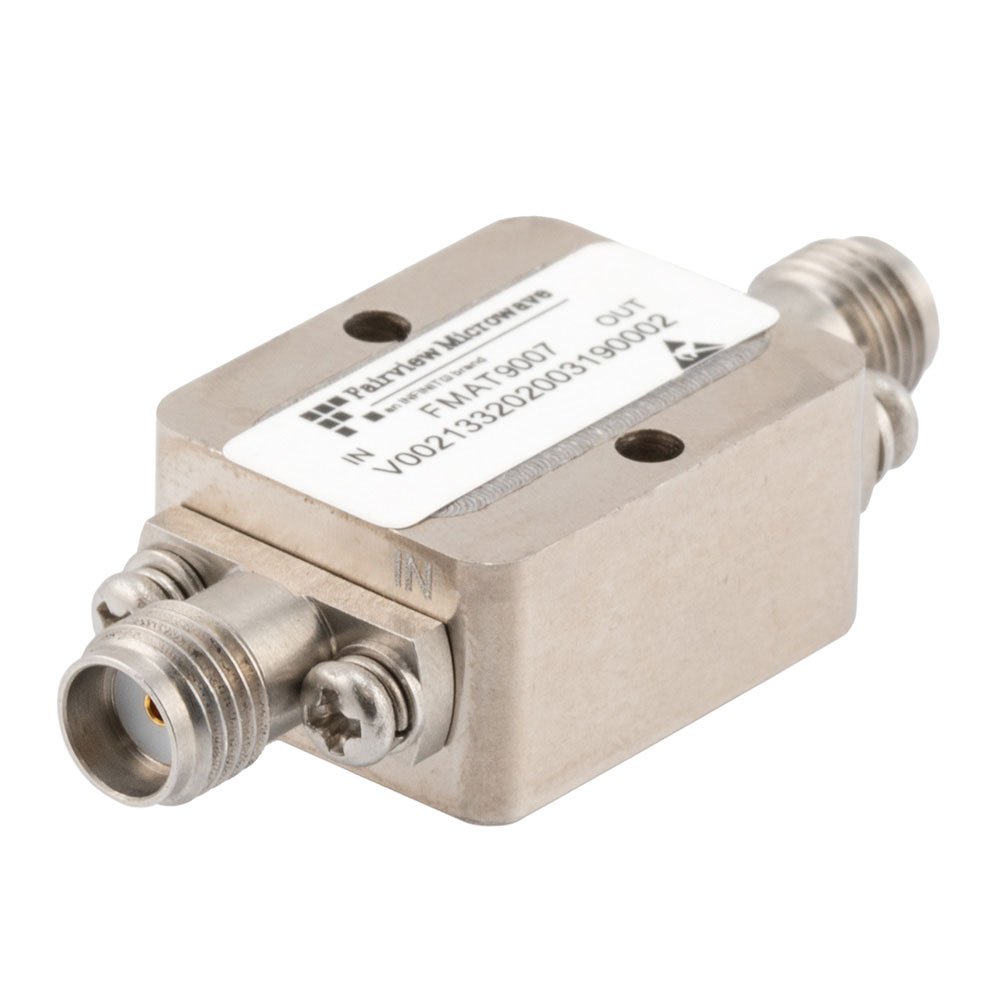

The FMAT9007 is a gain equalizer manufactured by Fairview Microwave, designed for RF applications within the 2 GHz to 6 GHz frequency range. The component provides gain equalization ranging from 3.5 dB to 4.5 dB and exhibits an insertion loss between 1.5 dB and 2 dB. It functions as a passive RF module intended to stabilize signal amplitude across its operational bandwidth.

Feature Summary

• Provides controlled gain equalization within a specified range
• Operates effectively in the 2 GHz to 6 GHz frequency band
• Maintains low insertion loss characteristics

Applications

• RF signal conditioning systems
• Test and measurement equipment
• Communication infrastructure modules

Procurement Notes

Verify the specific gain equalization value (3.5 dB to 4.5 dB) and insertion loss (1.5 dB to 2 dB) against your system requirements before ordering. Confirm the operating frequency range of 2 GHz to 6 GHz matches your application needs. Ensure compatibility with existing RF interfaces and mounting configurations. Check current availability status through authorized distributors as supply may vary.

Selection Notes

Select this component when precise gain flattening is required between 2 GHz and 6 GHz. Consider the insertion loss specifications to ensure they fit within your link budget constraints. Evaluate if the fixed equalization range meets your signal integrity goals compared to adjustable alternatives. Verify mechanical form factor suitability for your assembly process.

Part Context

This part belongs to Fairview Microwave's portfolio of RF and wireless integrated circuits and misc ICs. It serves as a specialized passive component for managing signal amplitude variations in high-frequency environments. The product supports engineers requiring stable gain performance across defined microwave bands without active power consumption.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Consult manufacturer documentation for potential family replacements or updated series equivalents that match the 2-6 GHz gain equalization requirements.
