FMAT9008

Overview

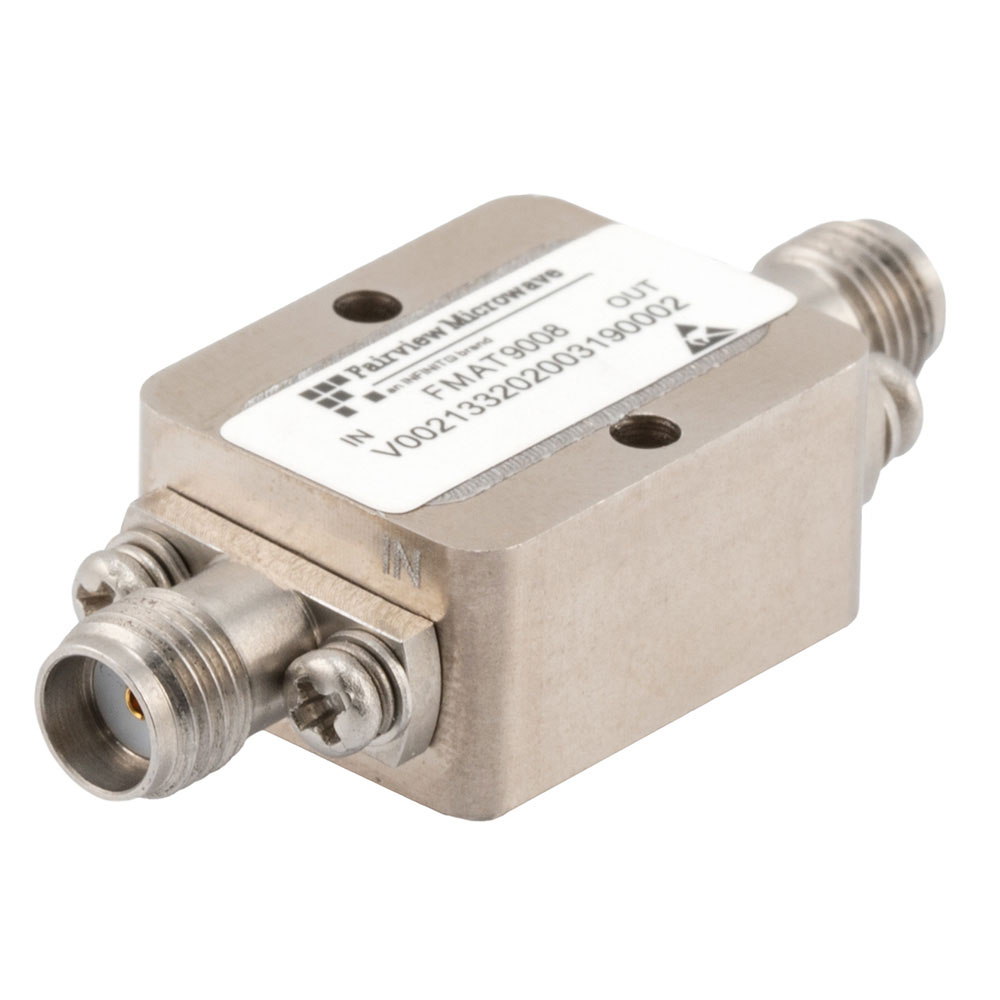

The FMAT9008 is a field-replaceable equalizer manufactured by Fairview Microwave, designed for high-frequency signal conditioning. It operates within a frequency range of 2 GHz to 12 GHz and utilizes SMA connectors with a positive slope characteristic. The component supports a maximum input power of +30 dBm, ensuring robust performance in demanding RF environments. This equalizer addresses phase and amplitude discrepancies in transmission lines, maintaining signal integrity across the specified bandwidth.

Feature Summary

• Field-replaceable design for simplified maintenance
• Positive slope equalization characteristics
• High power handling capability

Applications

• RF test and measurement systems
• Communication infrastructure maintenance
• Signal integrity correction in high-frequency circuits

Procurement Notes

Verify the specific SMA connector gender and mating requirements against system interfaces before procurement. Confirm that the +30 dBm maximum input power rating aligns with the operational signal levels of the target application. Ensure compatibility with existing mounting hardware and field replacement procedures defined by the system manufacturer.

Selection Notes

Select this component when positive slope equalization is required between 2 GHz and 12 GHz. Consider the field-replaceable nature for applications requiring minimal downtime during maintenance. Evaluate the +30 dBm power limit against peak signal conditions to prevent damage.

Part Context

This part belongs to Fairview Microwave's lineup of passive RF components focused on signal conditioning. It serves as a specialized tool for correcting frequency response deviations in high-frequency applications, distinct from standard attenuators or amplifiers.

Replacement Considerations

No public confirmed substitute part numbers are available.
