FMAT9010

Overview

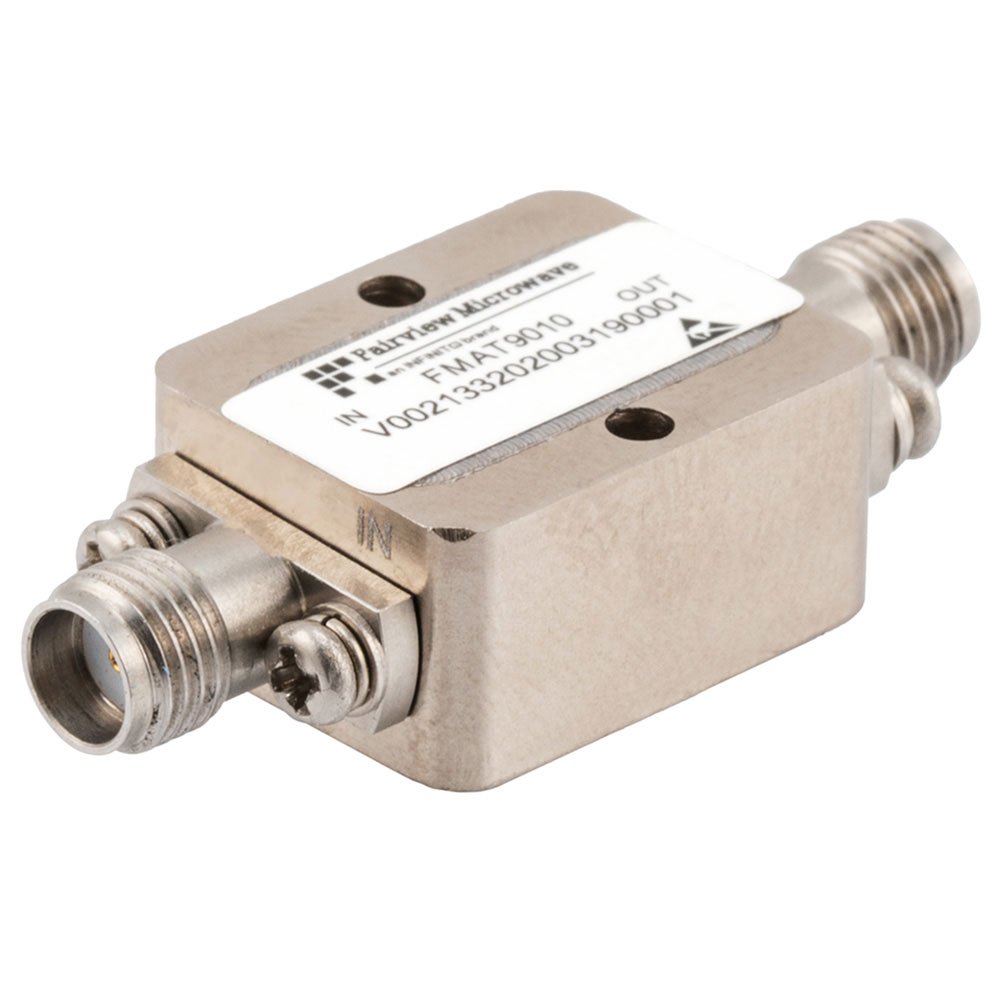

The FMAT9010 is a field replaceable positive slope equalizer manufactured by Fairview Microwave. It operates within a frequency range of 6 GHz to 18 GHz and utilizes an SMA connector interface. The component is designed for signal conditioning applications requiring gain adjustment across the specified microwave band.

Feature Summary

• Field replaceable design for system maintenance
• Positive slope equalization characteristics
• SMA connector interface compatibility

Applications

• Microwave signal conditioning systems
• RF test and measurement equipment
• Communication infrastructure maintenance

Procurement Notes

Verify the specific datasheet for the FMAT9010 to confirm detailed electrical parameters such as insertion loss, return loss, and power handling capabilities. Ensure the SMA connector gender and polarity match the system requirements before integration. Confirm RoHS compliance status through official documentation.

Selection Notes

Select this component when positive slope equalization is required between 6 GHz and 18 GHz. The SMA interface dictates compatibility with standard coaxial systems. Verify that the field replaceable form factor aligns with the maintenance strategy of the target application environment.

Part Context

This component belongs to the Fairview Microwave RF equalizer product line. It serves as a passive signal conditioning device used to correct frequency response variations in microwave circuits. The model number identifies the specific slope characteristic and frequency range defined by the manufacturer.

Replacement Considerations

No public substitute part numbers are confirmed for the FMAT9010. Replacement requires matching the exact frequency range, slope characteristic, and connector type specified in the original design documentation.
