FMAT9013

Overview

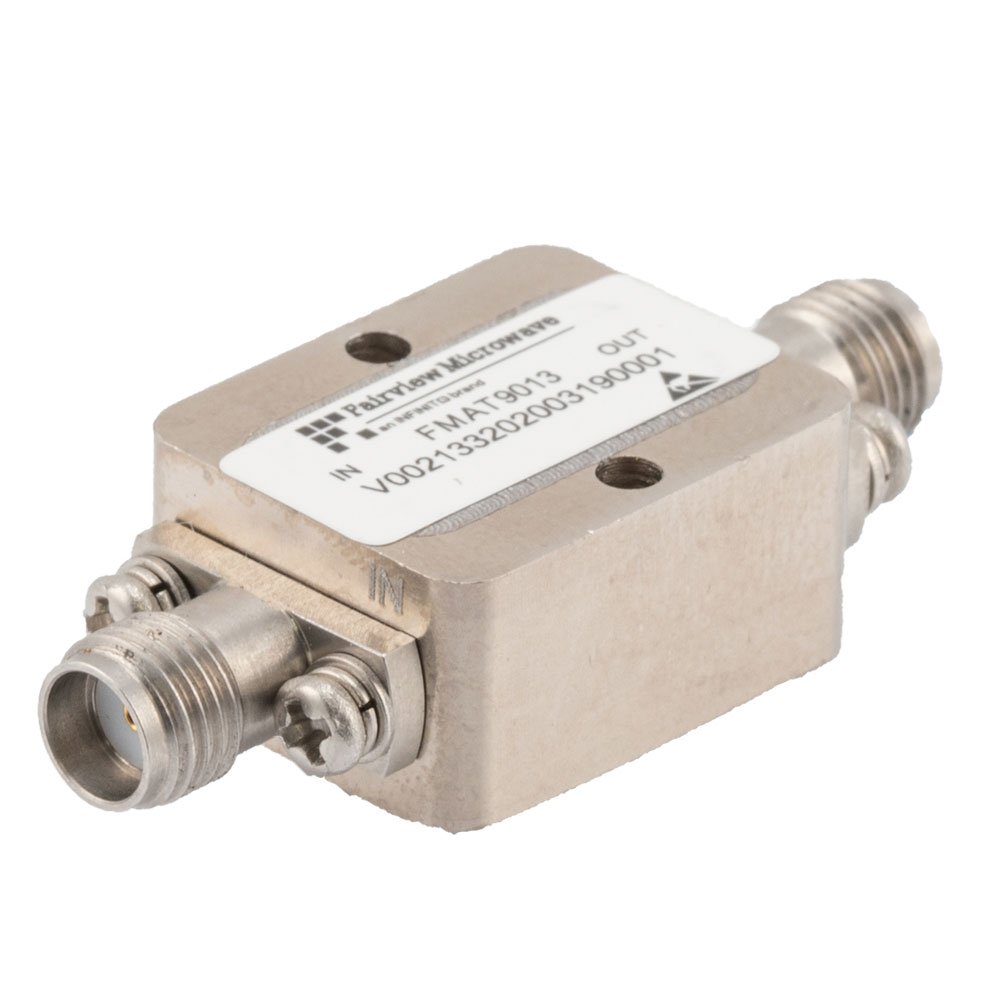

The Fairview Microwave FMAT9013 is a field-replaceable SMA positive slope equalizer designed for operation within the 6 GHz to 18 GHz frequency range. This component provides signal compensation through a defined positive gain slope characteristic, addressing frequency-dependent loss in transmission paths. It features an SMA connector interface and supports a maximum input power of +30 dBm. The unit is constructed as a standalone module intended for integration into RF test and measurement setups or communication systems requiring precise amplitude-frequency response correction across the specified millimeter-wave band.

Feature Summary

• Provides positive slope signal equalization to compensate for system loss variations
• Field-replaceable modular design facilitates easy integration and maintenance
• Supports high input power handling up to +30 dBm for robust operation

Applications

• RF test and measurement equipment calibration
• Wireless communication system link budget optimization
• Millimeter-wave signal path compensation

Procurement Notes

Verify the specific datasheet version and manufacturing batch details upon order confirmation. Ensure that the SMA connector gender and polarity match the existing system infrastructure requirements. Confirm that the operating environment temperature ranges align with the component specifications. Request updated compliance documentation if required for specific regulatory standards in your region.

Selection Notes

Select this component when a fixed positive slope compensation profile is required between 6 GHz and 18 GHz. Consider the +30 dBm power limit when designing for high-power signal chains. Evaluate the physical dimensions and mounting options against available space constraints in the assembly. Compare alternative equalizers if variable slope adjustment or different connector types are necessary for the application.

Part Context

This equalizer belongs to Fairview Microwave's portfolio of precision RF components aimed at maintaining signal integrity in high-frequency applications. It complements their range of cables, connectors, and antennas by providing active or passive signal conditioning solutions. The product line focuses on reliability and performance in demanding electromagnetic environments, supporting both commercial and industrial RF engineering needs.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
