FMAT9014

Overview

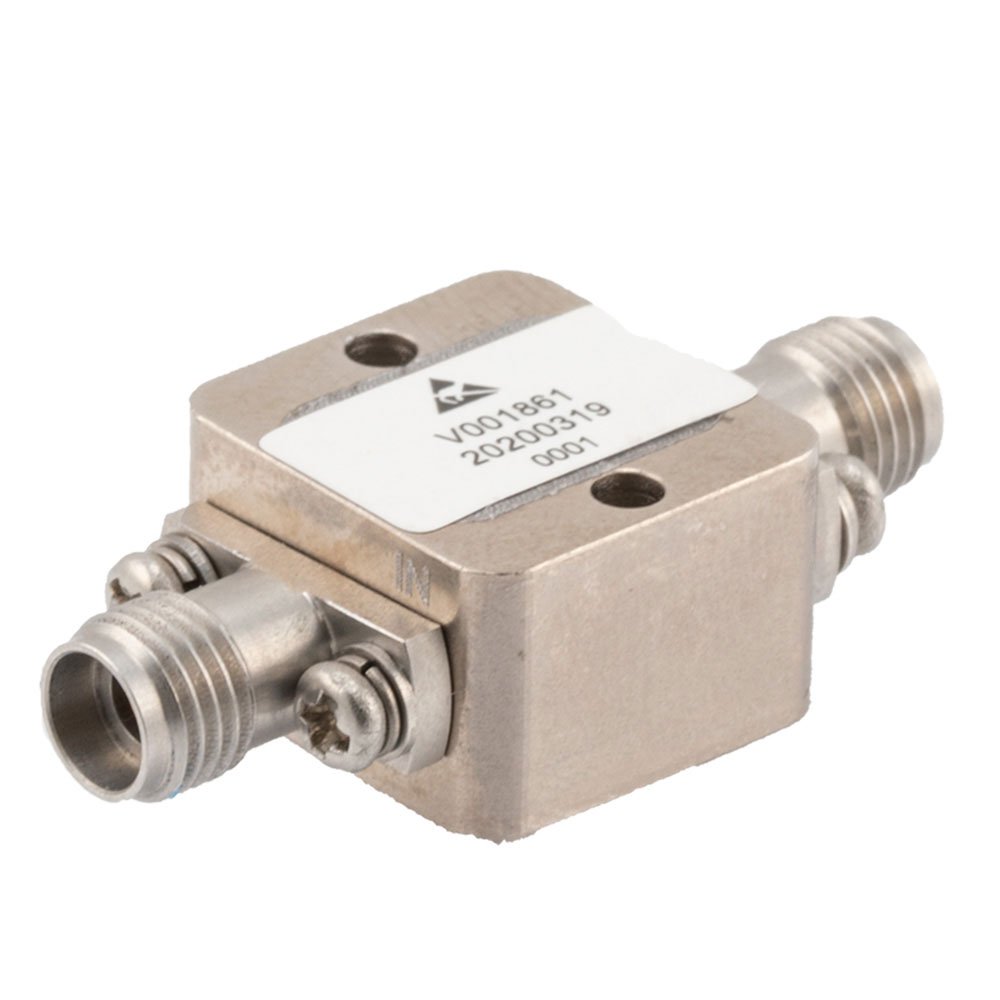

The FMAT9014 is a gain equalizer from Fairview Microwave designed for the 1.5 to 2 GHz frequency range. This component provides flat amplitude response across its operational bandwidth, ensuring consistent signal integrity in RF systems. It utilizes SMA connectors for reliable interconnection and is constructed with high-quality materials to maintain performance stability under various environmental conditions.

Feature Summary

• Provides flat amplitude response across the specified frequency band
• Utilizes SMA connectors for secure signal transmission
• Engineered for stable performance in RF applications

Applications

• RF signal conditioning
• Test and measurement equipment
• Communication systems requiring amplitude stability

Procurement Notes

Verify the specific model number FMAT9014 against official Fairview Microwave documentation to confirm compatibility with your system requirements. Ensure that the SMA connector interface matches your existing infrastructure. Check for any updated datasheets or technical notes regarding installation and handling procedures before procurement.

Selection Notes

Select this component when a flat amplitude response is required between 1.5 and 2 GHz. Consider the SMA connector type for integration. Evaluate the physical size and mounting options if space constraints exist. Confirm that the insertion loss and return loss specifications meet your system's performance criteria.

Part Context

Fairview Microwave specializes in RF cable assemblies and components. The FMAT9014 belongs to their line of gain equalizers, which are used to correct amplitude variations in RF signals. This product supports applications needing precise signal shaping within the UHF to L-band frequencies.
