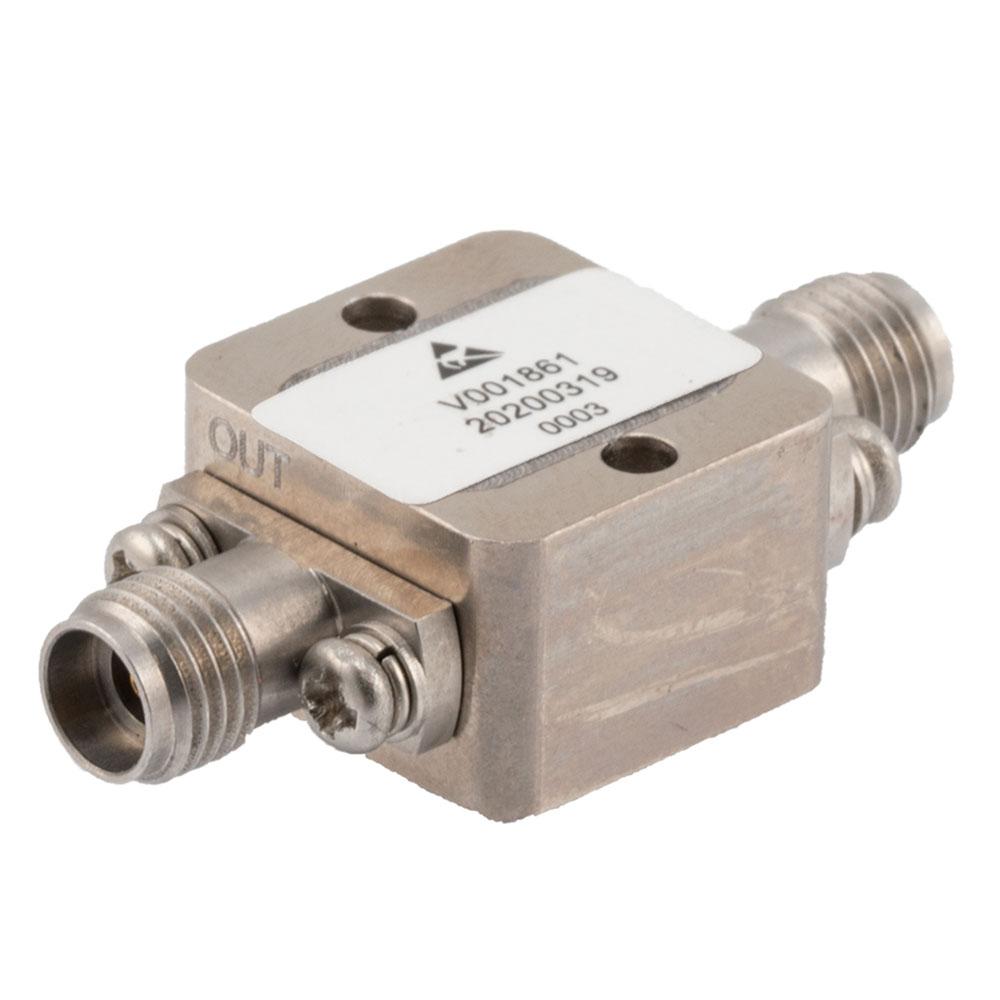

FMAT9015

$706.95

Description：EQUALIZER 2.92MM 18-40 GHZ 4 DB
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:6460d550cb6a Category: RF Misc ICs and Modules Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：EQUALIZER 2.92MM 18-40 GHZ 4 DB
Series：-
Mfr：Fairview Microwave
Package：Bag
Function：Linear Equalizer
Frequency：18GHz ~ 40GHz
RF Type：General Purpose
Secondary Attributes：SMA Connectors
Mounting Type：Chassis Mount
Package / Case：2.92mm In-Line Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FMAT9015

Overview

The FMAT9015 is a field replaceable equalizer manufactured by Fairview Microwave, designed for high-frequency applications spanning from 18 GHz to 40 GHz. This component utilizes the 2.92mm connector interface and features a positive slope characteristic to compensate for signal loss in transmission lines. It supports a maximum input power of +30 dBm, ensuring reliable operation in demanding RF environments. The unit is engineered for direct integration into test and measurement setups requiring precise amplitude correction across the specified millimeter-wave frequency range.

Feature Summary

Field replaceable design for simplified maintenance
Positive slope equalization for loss compensation
Operates within the 18 GHz to 40 GHz frequency band

Applications

Millimeter-wave test and measurement systems
Signal integrity correction in high-frequency circuits
Vector network analyzer calibration setups

Procurement Notes

Verify the specific datasheet for detailed electrical performance curves and mechanical dimensions before integration. Confirm that the system environment supports the 2.92mm interface type. Ensure input signals do not exceed the rated maximum power level to prevent component damage. Check for any required mounting hardware or torque specifications during installation.

Selection Notes

Select this component when positive slope equalization is required between 18 GHz and 40 GHz. The 2.92mm interface ensures compatibility with standard high-frequency test equipment. Consider the field replaceable nature for long-term system maintenance efficiency. Verify power handling capabilities match the application's signal levels.

Part Context

Fairview Microwave produces specialized RF components for precision testing. The FMAT9015 belongs to their line of high-frequency equalizers. These devices address signal attenuation issues in millimeter-wave frequencies. The product series focuses on maintaining signal accuracy in advanced communication and radar systems.
