Product Detailed Parameters
- Description：EQUALIZER SMA 1-4 GHZ 3 DB
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Linear Equalizer
- Frequency：1GHz ~ 4GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

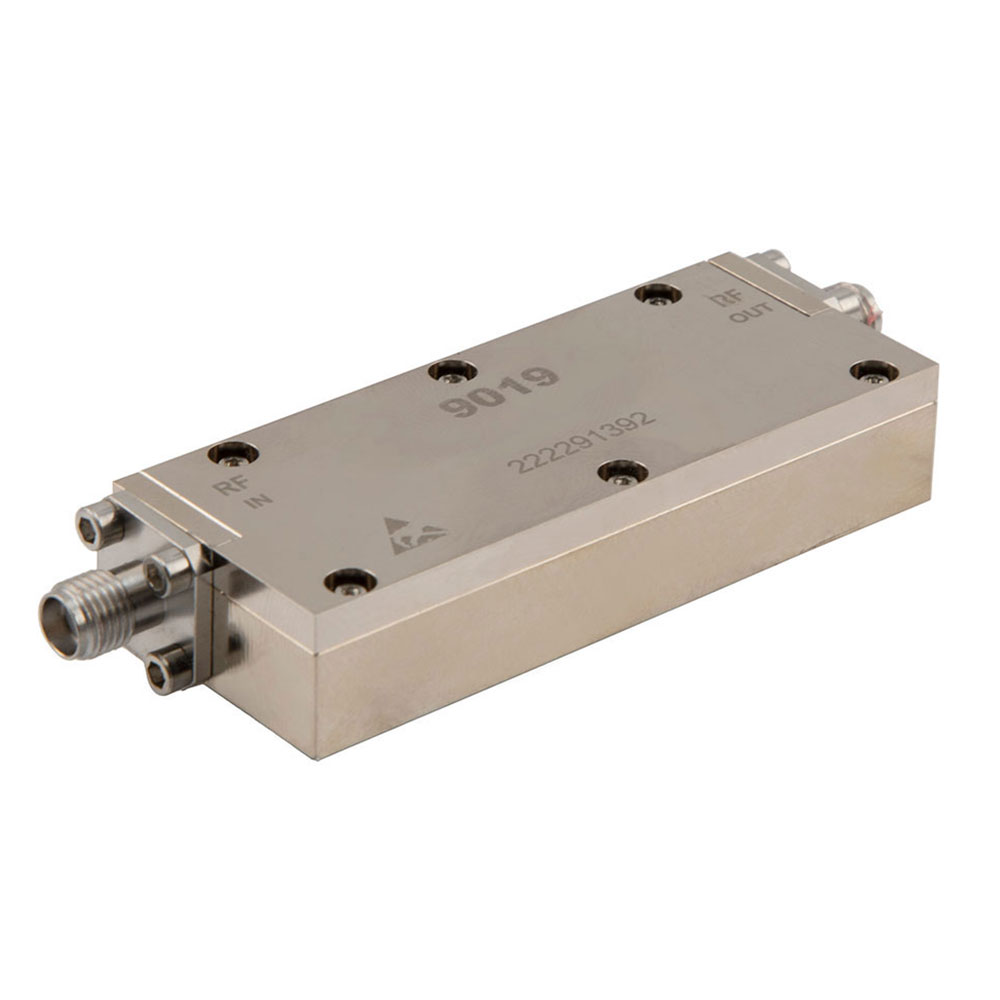

The FMAT9019 is a negative slope RF equalizer manufactured by Fairview Microwave, designed for signal conditioning within the 1 GHz to 4 GHz frequency range. It provides a fixed attenuation value of 3 dB with a maximum insertion loss of 0.7 dB. The component utilizes SMA connectors and supports a maximum input power of 250 mW. This module is engineered to compensate for frequency-dependent signal variations in high-frequency applications.
Feature Summary
- Provides a fixed 3 dB negative slope equalizing value across the operational bandwidth
- Features SMA connectors for standard interface compatibility
- Engineered for general-purpose linear equalization in RF systems
Applications
- RF signal conditioning modules
- General purpose linear equalization circuits
- High-frequency system compensation
Procurement Notes
Verify the specific datasheet version for the FMAT9019 to confirm exact electrical tolerances and connector specifications before integration. Ensure that the maximum input power rating of 250 mW aligns with your system's signal levels to prevent component damage. Cross-reference the SMA connector gender and mating requirements with your existing infrastructure to guarantee physical compatibility.
Selection Notes
Select the FMAT9019 when a fixed negative slope characteristic is required between 1 GHz and 4 GHz. This component is suitable for applications needing precise 3 dB attenuation correction without variable adjustment capabilities. Consider the 0.7 dB insertion loss and 250 mW power handling limits when designing the surrounding circuitry to maintain signal integrity and device safety.
Part Context
Fairview Microwave produces specialized RF components for signal integrity management. The FMAT9019 belongs to their line of passive RF modules, specifically addressing frequency response shaping. These components are typically used in test, measurement, and communication systems where precise amplitude versus frequency characteristics are critical for performance optimization.
