FMAT9023

Overview

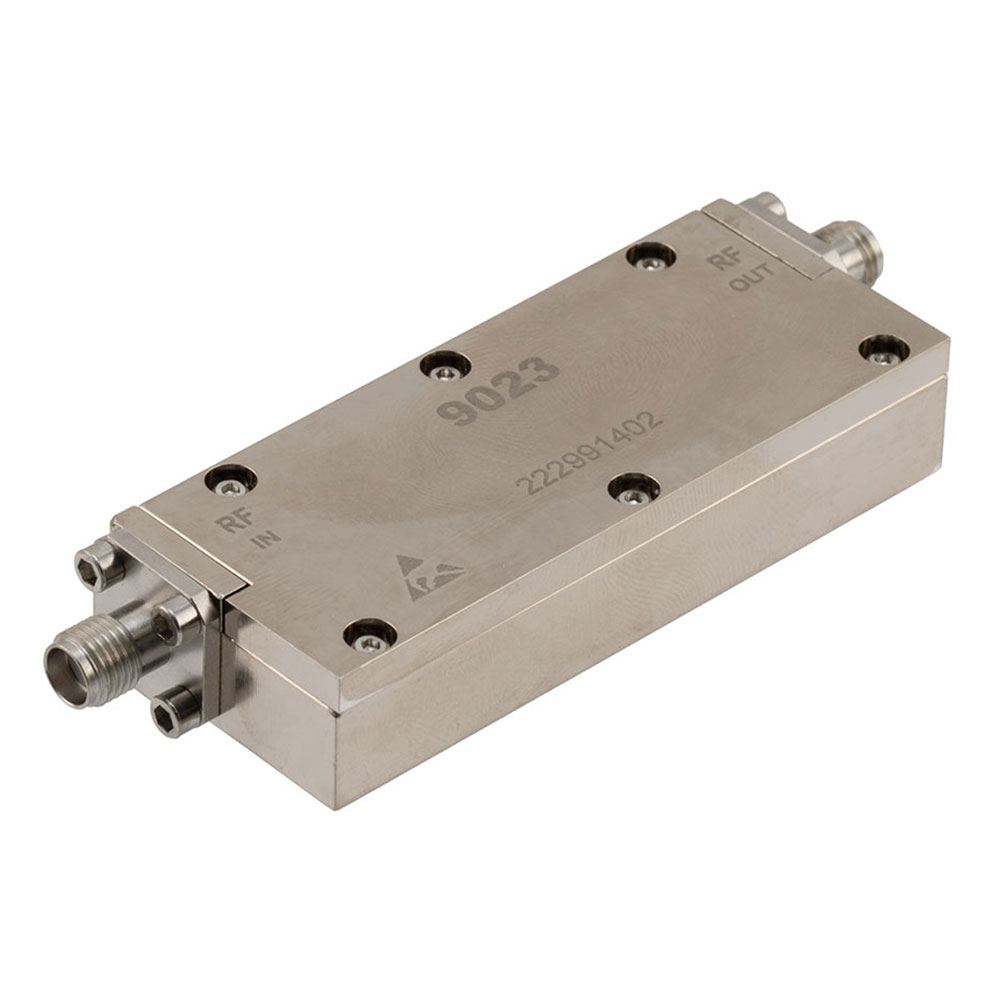

The FMAT9023 is a negative slope equalizer manufactured by Fairview Microwave. It operates within a frequency range of 2 GHz to 6 GHz and provides an 8 dB fixed equalizing value. The component exhibits a maximum insertion loss of 0.6 dB and supports a maximum power handling capacity of 150 mW at Pin 1. It utilizes SMA connectors for interface connectivity.

Feature Summary

• Provides fixed negative slope signal equalization
• Operates across the 2 GHz to 6 GHz frequency spectrum
• Features low insertion loss characteristics

Applications

• RF signal path compensation
• Frequency response correction in microwave systems
• Test and measurement equipment calibration

Procurement Notes

Verify the specific connector type and power rating requirements against system specifications before procurement. Confirm that the 150 mW maximum power handling is sufficient for the intended application environment. Ensure compatibility with existing SMA interfaces in the assembly.

Selection Notes

Select this component when a fixed negative slope characteristic is required between 2 GHz and 6 GHz. Consider the 0.6 dB insertion loss impact on overall system gain. Evaluate if the 150 mW power limit meets operational demands without derating.

Part Context

This device belongs to the category of passive RF equalizers designed for high-frequency applications. It addresses signal distortion issues in wideband systems by applying a specific attenuation profile relative to frequency.

FAQ

What is the operating frequency range?

The FMAT9023 operates from 2 GHz to 6 GHz.

What is the maximum power handling?

The maximum power handling is 150 mW at Pin 1.
