FMAT9029

Overview

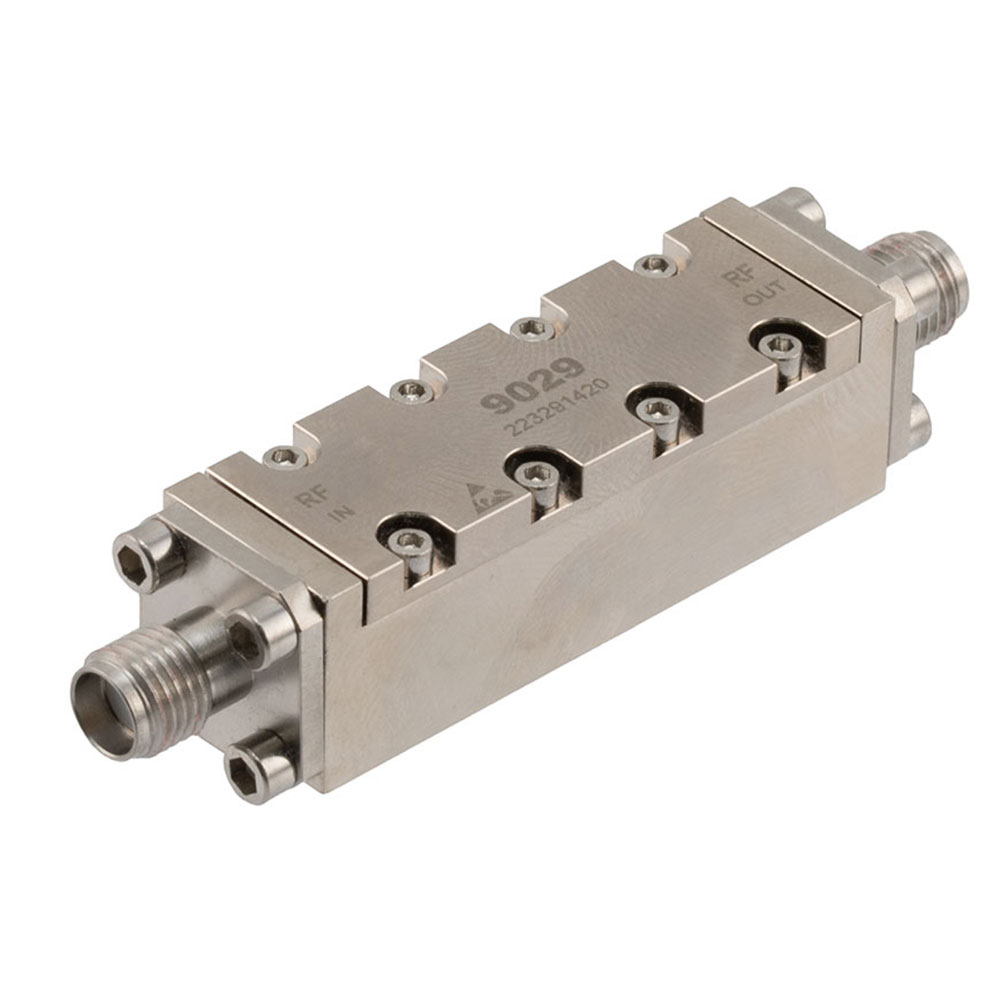

The FMAT9029 is a linear equalizer module manufactured by Fairview Microwave, designed for general-purpose RF signal conditioning. It operates within a frequency range of 4 GHz to 12 GHz and utilizes SMA connectors for interface connectivity. The unit is constructed as an in-line module intended for chassis mounting, providing stable performance across its specified bandwidth.

Feature Summary

• Provides linear equalization for RF signals within the 4 GHz to 12 GHz operational band
• Features SMA connector interfaces for direct integration into existing RF pathways
• Designed as a chassis-mountable in-line module for robust system installation

Applications

• General-purpose RF signal conditioning
• Chassis-mounted RF subsystems requiring linear equalization
• Broadband communication systems operating between 4 GHz and 12 GHz

Procurement Notes

Verify the specific datasheet for the FMAT9029 to confirm current manufacturing status and detailed electrical specifications. Ensure that the SMA connector types and chassis mounting requirements align with your system design constraints before procurement.

Selection Notes

Select this component when linear equalization is required for frequencies between 4 GHz and 12 GHz. The SMA interface and chassis mount form factor make it suitable for fixed installations where standardized connectors are preferred.

Part Context

Fairview Microwave produces specialized RF components including equalizers, cables, and antennas. The FMAT9029 belongs to their RF IC Linear Equalizer category, offering modular solutions for signal integrity management in high-frequency applications.
