FMAT9033

Overview

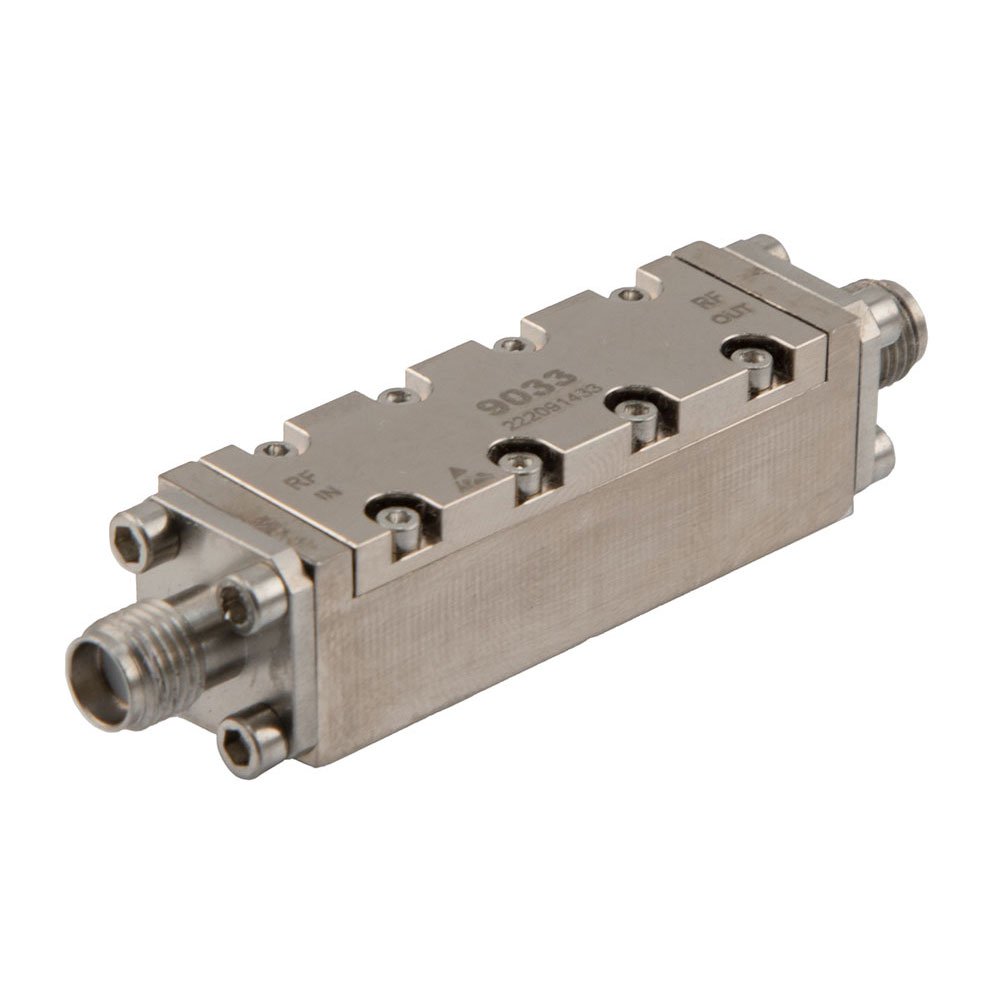

The FMAT9033 is an RF equalizer module manufactured by Fairview Microwave, designed for operation within the 8 GHz to 12 GHz frequency range. This component provides a fixed attenuation characteristic of 6 dB to manage signal levels in high-frequency circuits. The device utilizes SMA connectors for both input and output interfaces, ensuring compatibility with standard coaxial systems. It serves as a passive signal conditioning element intended to maintain signal integrity across its specified bandwidth.

Feature Summary

• Provides fixed 6 dB attenuation
• Operates from 8 GHz to 12 GHz
• Features SMA connectors

Applications

• Signal level adjustment in RF test setups
• Attenuation in microwave measurement systems
• Component integration in 8-12 GHz circuit designs

Procurement Notes

Verify the specific connector gender and cable length requirements against system schematics before ordering. Confirm that the SMA interface matches the mating hardware in the target application. Ensure the operating environment remains within the thermal limits defined in the official datasheet. Cross-reference the part number FMAT9033 with current manufacturer documentation to confirm availability and specifications.

Selection Notes

Select this component when a precise 6 dB reduction is required within the 8-12 GHz band. Consider the SMA interface compatibility with existing infrastructure. Evaluate if the fixed attenuation meets the dynamic range needs of the specific RF chain. Verify power handling capabilities against the maximum input signal levels expected in the operational scenario.

Part Context

Fairview Microwave produces specialized RF components including cables, adapters, and modules. The FMAT9033 belongs to their line of signal conditioning devices. These products support applications requiring stable performance in high-frequency environments. The company focuses on providing reliable interconnect solutions for communication and testing industries.
