Product Detailed Parameters
- Description：EQUALIZER SMA 8-12 GHZ 10 DB
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Linear Equalizer
- Frequency：8GHz ~ 12GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

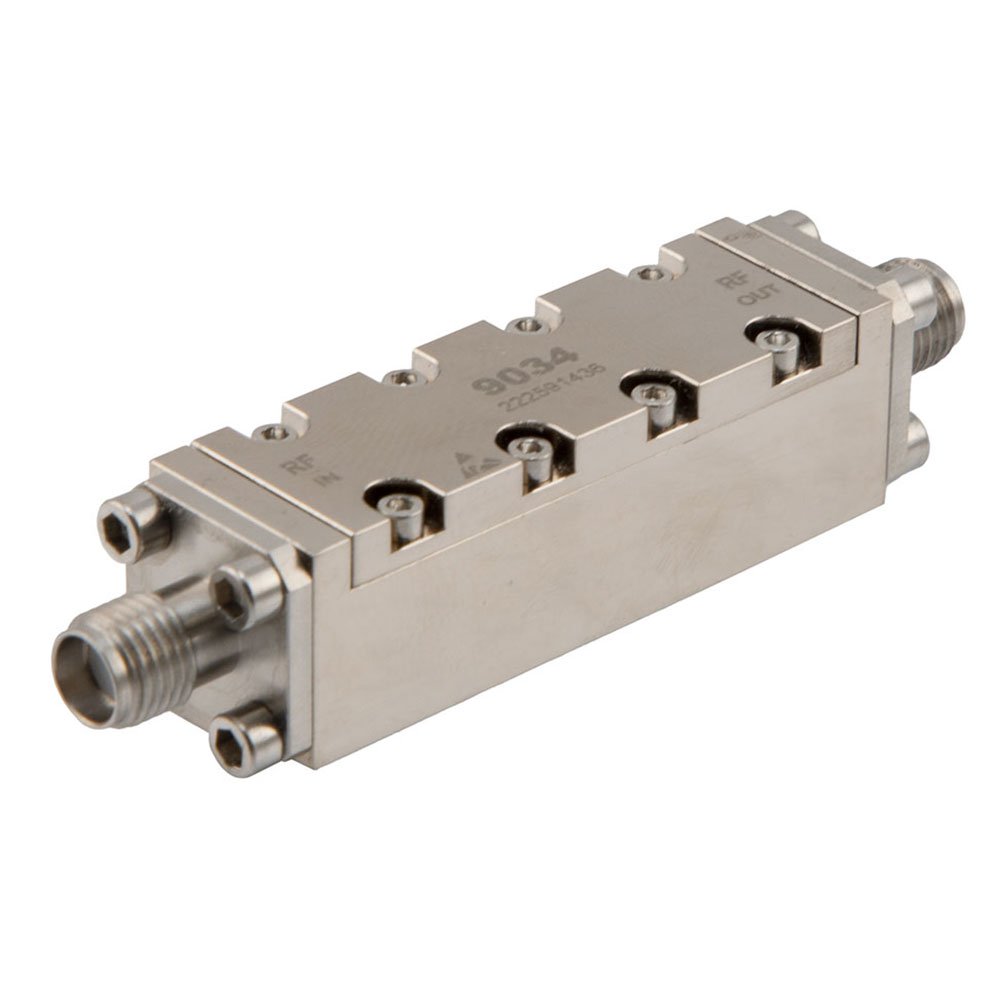

The FMAT9034 is an SMA equalizer designed by Fairview Microwave for signal conditioning applications. It operates within a frequency range of 8 GHz to 12 GHz and provides a nominal attenuation of 10 dB. The component utilizes SMA connectors for interface compatibility. This device is engineered to maintain signal integrity across the specified microwave band, offering consistent performance characteristics for RF system integration.
Feature Summary
- Provides standardized 10 dB attenuation for signal level adjustment
- Operates effectively within the 8 GHz to 12 GHz frequency spectrum
- Features SMA connector interfaces for direct system integration
Applications
- Microwave signal chain attenuation
- RF test and measurement setups
- Communication system signal conditioning
Procurement Notes
Verify the specific SMA connector gender and mating requirements against your existing infrastructure before procurement. Confirm that the 10 dB attenuation value aligns with your system's power budget and noise floor calculations. Ensure the 8-12 GHz operational range covers your entire application bandwidth without significant insertion loss variations outside this specification.
Selection Notes
Select this component when a fixed 10 dB reduction is required in the 8-12 GHz band. Consider the SMA interface compatibility with your current cabling and fixture hardware. Evaluate if the fixed attenuation meets your dynamic range needs compared to variable attenuators. Verify thermal management requirements for continuous operation at target frequencies.
Part Context
Fairview Microwave produces specialized RF components for precision testing and communication systems. The FMAT9034 belongs to their line of passive signal conditioning devices. These components support engineers in managing signal levels and maintaining system stability in high-frequency environments requiring reliable passive attenuation solutions.
Replacement Considerations
No public substitute part numbers are documented for this specific model. Direct replacement requires matching the 10 dB attenuation, 8-12 GHz frequency range, and SMA interface specifications exactly to ensure system performance continuity.
