FMBT1641

Overview

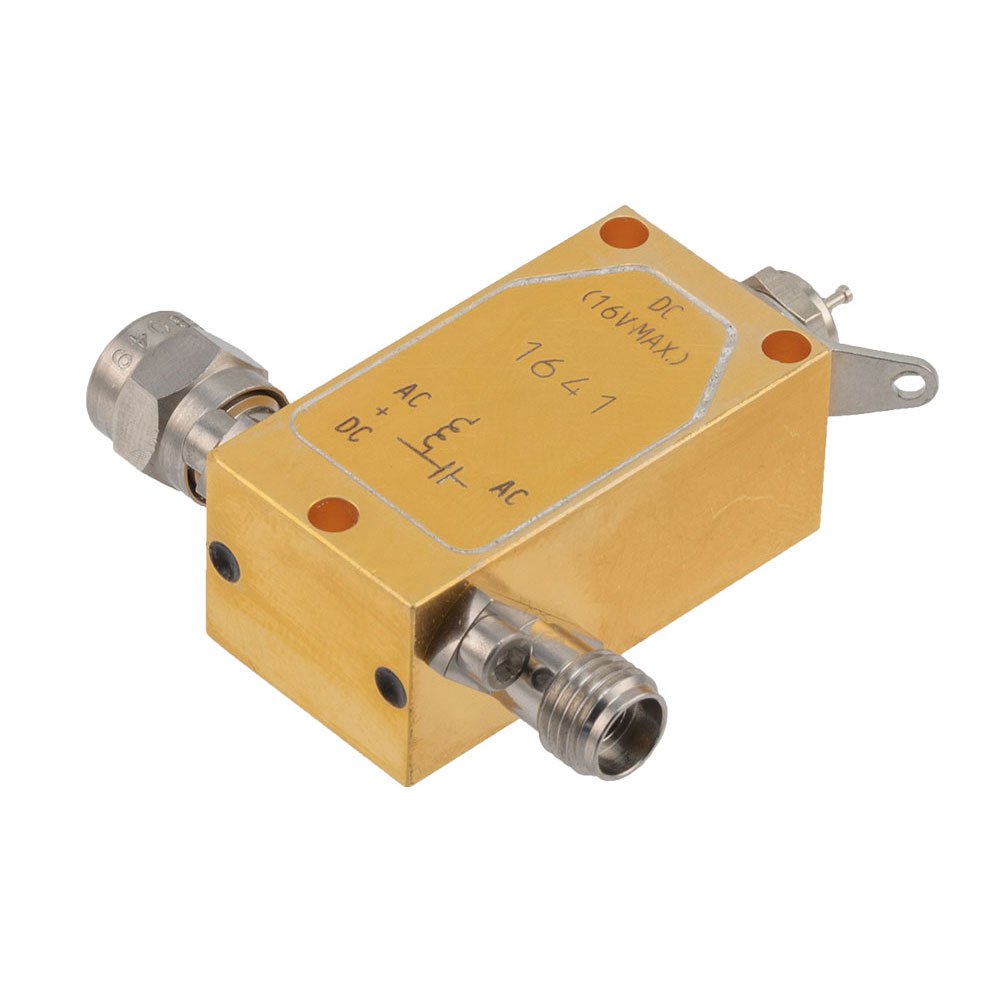

The FMBT1641 is a broadband bias tee manufactured by Fairview Microwave, designed for radio frequency applications spanning from 12 kHz to 40 GHz. It supports a maximum voltage of 16 volts and a maximum current of 0.15 amperes. The component exhibits an insertion loss ranging between 1.5 dB and 3 dB across its operational bandwidth.

Feature Summary

• Provides broadband DC bias injection capability within the specified frequency range
• Supports high-frequency operation up to 40 GHz
• Rated for specific maximum electrical limits regarding voltage and current

Applications

• RF signal conditioning circuits requiring DC power injection
• Test and measurement setups involving high-frequency components
• Communication systems utilizing broadband bias tees

Procurement Notes

Verify the exact connector interface type and physical dimensions against your system requirements before procurement. Confirm that the maximum voltage and current ratings align with your circuit design constraints. Ensure the insertion loss characteristics meet your signal integrity specifications for the intended frequency band.

Selection Notes

Select this component when a broadband bias tee covering frequencies up to 40 GHz is required. Consider the specific insertion loss values and electrical ratings to ensure compatibility with your RF chain. Evaluate the physical form factor and connector types to match existing infrastructure.

Part Context

This bias tee belongs to Fairview Microwave's portfolio of RF adapters and accessories. It serves as a passive component facilitating the combination of RF signals and DC power. The device is engineered for precision applications demanding wideband performance and stable electrical characteristics.
