Product Detailed Parameters
- Description：BIAS TEE SMA 1000MHZ-6GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Bias Tee
- Frequency：1GHz ~ 6GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

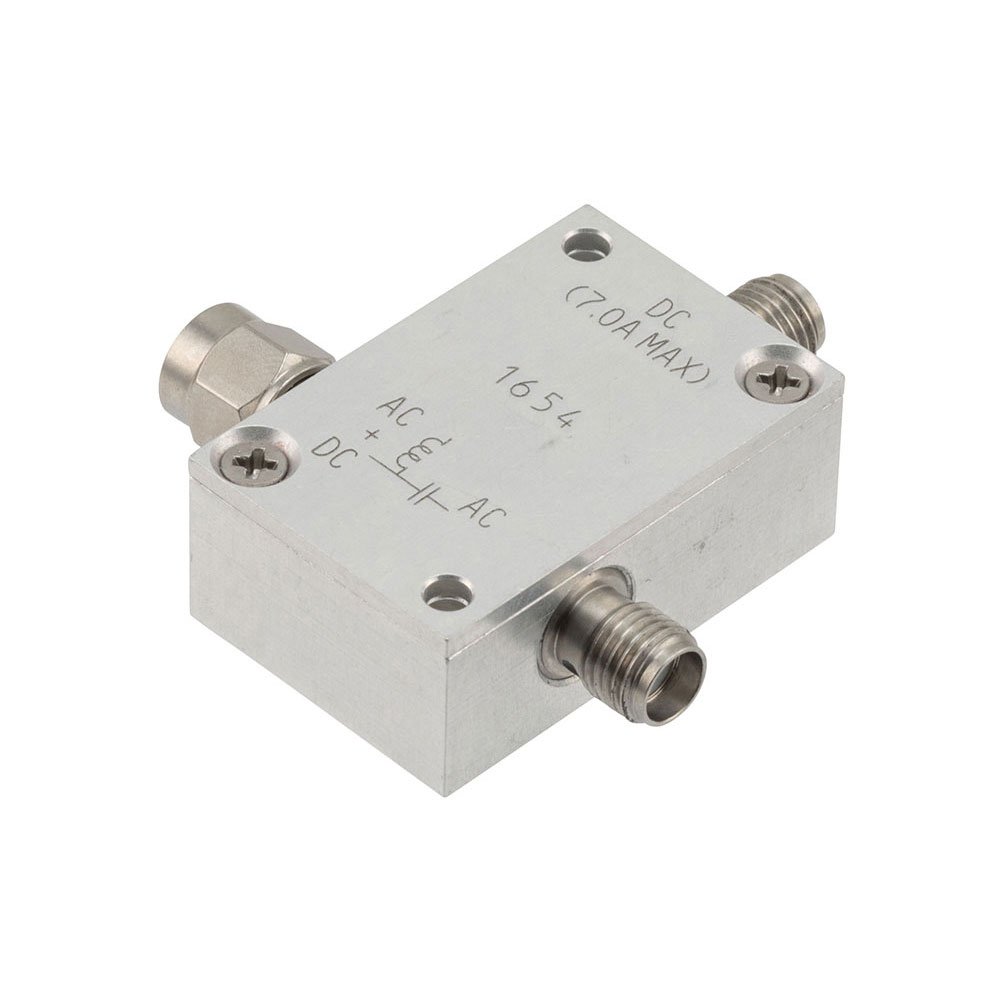

The FMBT1654 is an SMA high current bias tee manufactured by Fairview Microwave. It operates within a frequency range of 1 GHz to 6 GHz and supports a maximum DC current rating of 7 Amps at 100 Volts. The component features SMA connectors for RF and DC paths, designed for chassis mounting applications. This device integrates RF signal transmission with DC power injection capabilities in a single compact unit.
Feature Summary
- Integrates RF signal path with DC power injection capability
- Supports high current DC bias up to 7 Amps
- Operates effectively across the 1 GHz to 6 GHz frequency spectrum
- Designed for secure chassis mounting installation
Applications
- RF test and measurement setups requiring combined signal and power delivery
- Wireless communication system biasing
- Active antenna power injection
- Laboratory equipment interfacing
Procurement Notes
Verify the specific connector gender and pin configuration against your system requirements before ordering. Confirm that the 7 Amp current rating and 100 Volt voltage limit align with your DC power supply specifications. Ensure the chassis mounting style fits your enclosure design constraints. Check for any RoHS or compliance certifications required for your project.
Selection Notes
Select this component when simultaneous RF transmission and high-current DC biasing are needed through a single interface. The 1-6 GHz bandwidth suits many microwave applications. Consider the chassis mount form factor for permanent installations rather than portable use. Verify impedance matching requirements if connecting to non-standard systems.
Part Context
This bias tee belongs to Fairview Microwave's line of RF coaxial adapters and accessories. It serves as a passive component facilitating power delivery to active RF devices without disrupting signal integrity. The SMA interface ensures compatibility with standard microwave interconnects commonly used in industrial and laboratory environments.
Replacement Considerations
No public substitute part numbers are documented for this specific model.
