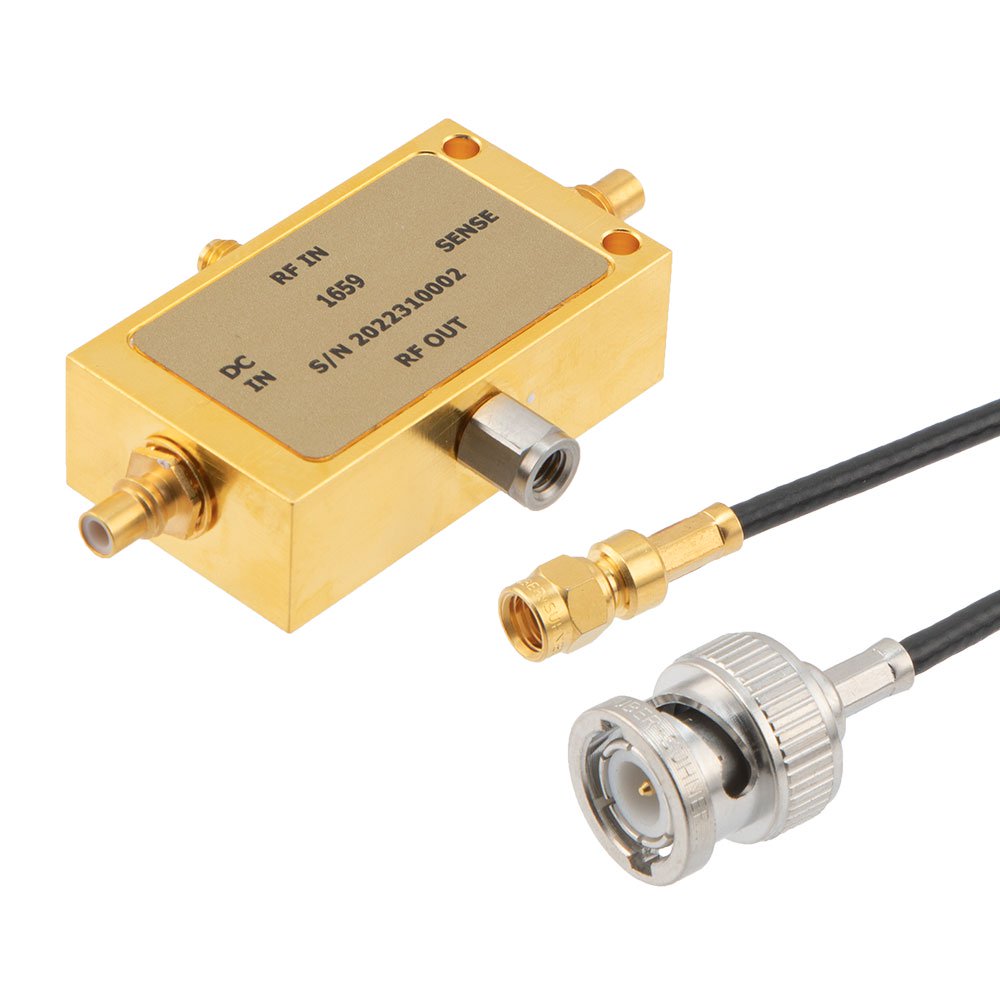

FMBT1659

$9,764.90

Description：BIAS TEE W1 (1.0 MM) 100MHZ-110G
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:ef4291d83378 Category: RF Misc ICs and Modules Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：BIAS TEE W1 (1.0 MM) 100MHZ-110G
Series：-
Mfr：Fairview Microwave
Package：Bag
Function：Bias Tee
Frequency：100MHz ~ 110GHz
RF Type：General Purpose
Secondary Attributes：16V Supply
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Grade：-
Qualification：-

Download product information

FMBT1659

Overview

The FMBT1659 is a general-purpose RF bias tee manufactured by Fairview Microwave. It operates within a frequency range of 100 MHz to 110 GHz. The component supports a maximum voltage of 16 V and a maximum current of 0.4 A, with a power rating of 1 W. It exhibits an insertion loss of 2 dB. This device integrates DC injection capabilities into high-frequency signal paths, designed for applications requiring stable biasing across ultra-wide bandwidths.

Feature Summary

Ultra-wideband operation extending from 100 MHz to 110 GHz
Integrated DC bias injection with defined voltage and current limits
General-purpose design suitable for diverse RF module integration

Applications

High-frequency test and measurement equipment
Active antenna systems requiring DC bias
RF amplifier modules needing integrated power delivery

Procurement Notes

Verify the specific electrical parameters against the official Fairview Microwave datasheet before integration. Confirm that the 16 V maximum voltage and 0.4 A current limits align with your system's DC requirements. Ensure the 100 MHz to 110 GHz frequency range covers your operational spectrum. Check for any mechanical interface specifications not detailed in this summary.

Selection Notes

Select the FMBT1659 when ultra-wideband performance up to 110 GHz is required. Consider the 2 dB insertion loss impact on signal integrity. Evaluate if the 1 W power rating and 16 V/0.4 A limits meet your bias network needs. Compare against lower-frequency alternatives if 110 GHz capability is unnecessary.

Part Context

This component belongs to the Fairview Microwave RF misc ICs and modules category. It serves as a passive interconnect solution combining RF transmission with DC power delivery. The product line focuses on high-performance microwave components for demanding electronic applications.
