FMBT1662

Overview

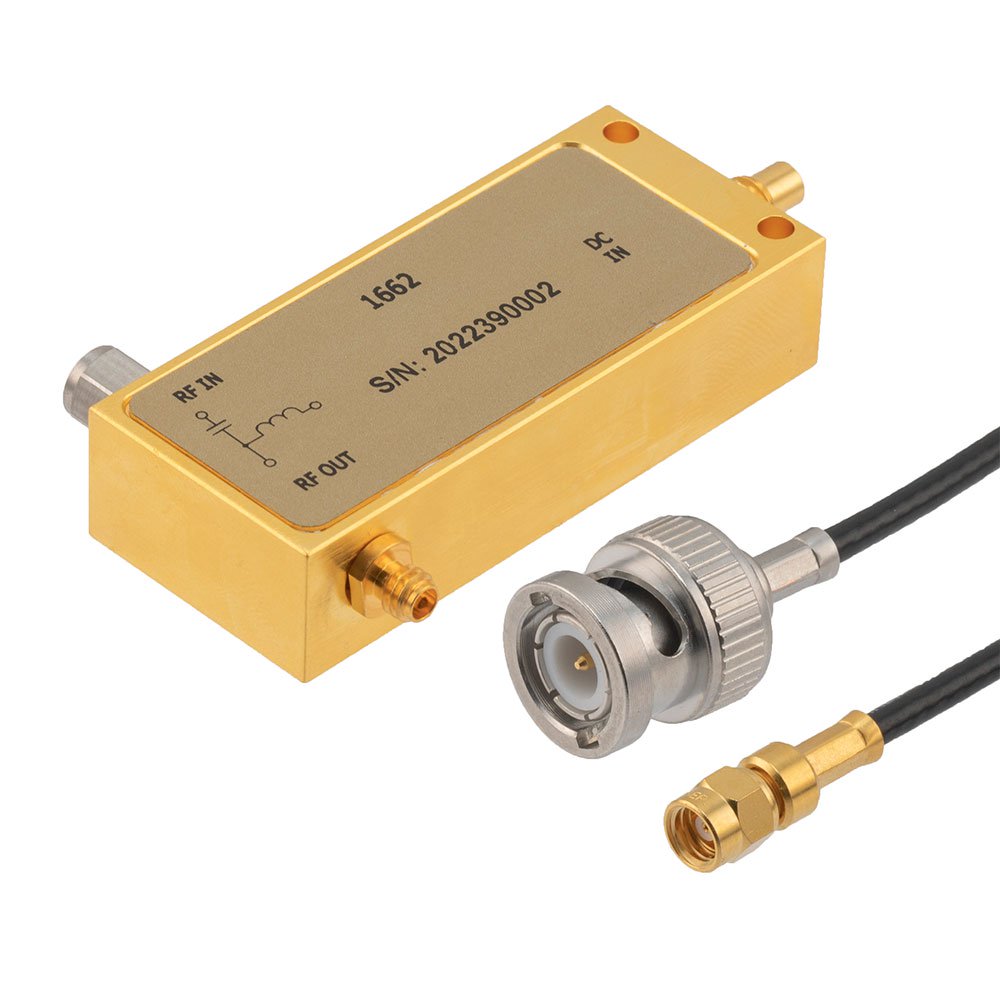

The FMBT1662 is an ultra-wide band bias tee manufactured by Fairview Microwave. It features a 1.0 mm male input and a 1.0 mm female output, with an SMC male connector for DC biasing. The device operates within a frequency range of 0.05 MHz to 110 GHz and maintains a 50 Ohm impedance. It is rated to handle up to 400 mA current and 16V DC voltage.

Feature Summary

• Integrates RF signal transmission with DC bias injection in a single compact component
• Supports ultra-wide bandwidth extending from low frequencies up to 110 GHz
• Utilizes precision 1.0 mm connectors for high-frequency signal integrity

Applications

• Ultra-wideband test and measurement setups requiring simultaneous DC bias and RF signals
• High-frequency component characterization and validation
• Millimeter-wave system integration and prototyping

Procurement Notes

Verify the specific connector gender and interface compatibility before ordering, as the FMBT1662 utilizes distinct 1.0 mm and SMC interfaces. Confirm that the required DC bias parameters remain within the specified 400 mA and 16V limits to ensure safe operation. Check regional availability status through authorized distributors, as supply may be restricted in certain locations.

Selection Notes

Select this component when an ultra-wide frequency response up to 110 GHz is required alongside DC biasing capabilities. Ensure the application environment supports the physical dimensions and mounting requirements of the SMC bias port. Compare against standard bias tees if lower frequency ranges suffice, as specialized 1.0 mm interfaces may impact system cost and complexity.

Part Context

This part belongs to the Fairview Microwave RF Adapters - Tee category. It serves as a specialized interconnect solution designed for high-performance microwave applications. The product line focuses on providing reliable signal paths with integrated power delivery functions for advanced electronic testing and communication systems.
