FMDB1001

Overview

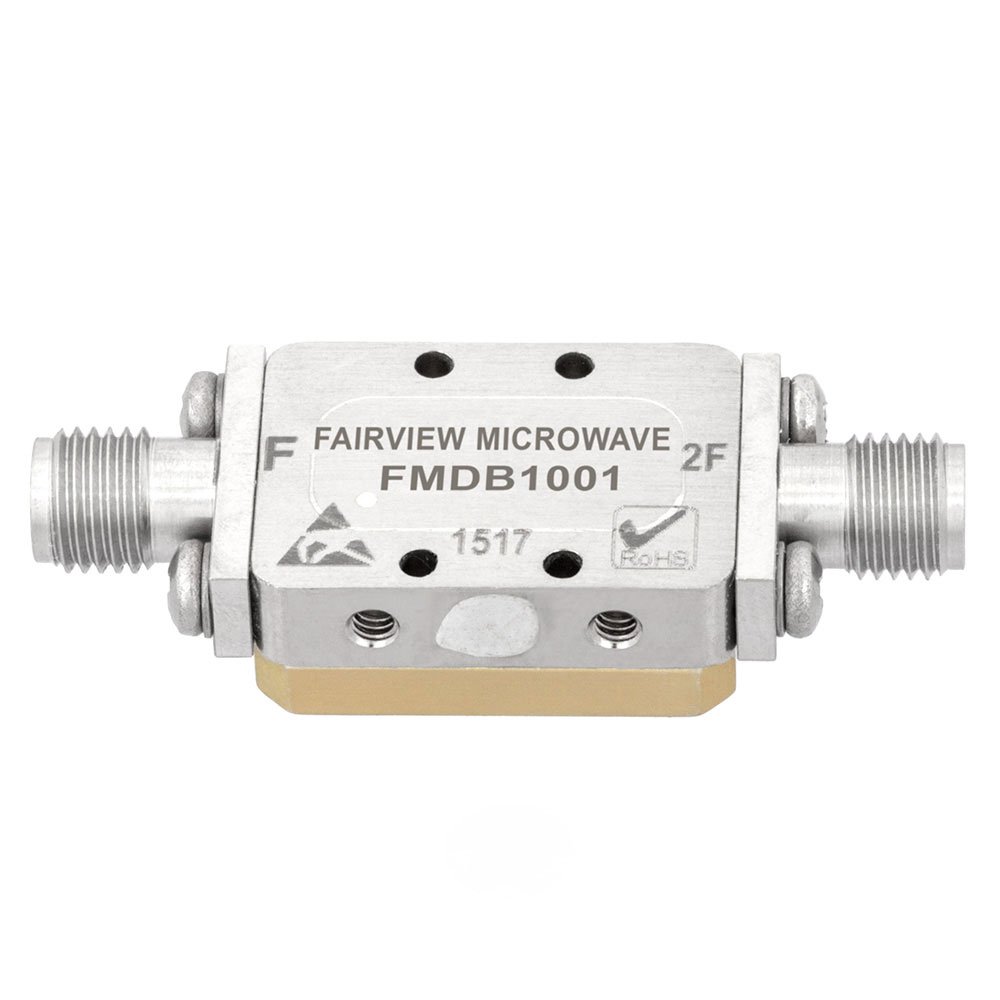

The FMDB1001 is a frequency multiplier manufactured by Fairview Microwave. It utilizes SMA female connectors and provides a 2x multiplication factor. The device operates with an output frequency range of 4 GHz to 12 GHz. This component is designed for signal generation applications requiring precise frequency doubling within the specified microwave band.

Feature Summary

• Provides 2x frequency multiplication functionality
• Features SMA female connector interface
• Supports output frequencies from 4 GHz to 12 GHz

Applications

• Microwave signal generation systems
• Frequency synthesis circuits
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet requirements for the FMDB1001 before integration. Confirm that the SMA female interface aligns with your system's interconnect standards. Ensure the 4 GHz to 12 GHz output range meets your application's spectral needs. Check for any thermal management requirements associated with frequency multipliers in this band.

Selection Notes

Select the FMDB1001 when a compact, SMA-based solution is needed for doubling frequencies between 4 GHz and 12 GHz. Consider the physical size and connector type compatibility with your existing RF chain. Evaluate if the fixed 2x multiplication ratio suits your local oscillator or synthesizer design constraints compared to other multiplier options.

Part Context

Fairview Microwave produces specialized RF components for high-frequency applications. The FMDB1001 belongs to their line of active microwave devices, specifically focusing on frequency conversion. This model complements their passive interconnects and antennas by providing essential signal processing capabilities for modern wireless infrastructure.

Replacement Considerations

No public confirmed substitute part numbers are available for the FMDB1001.
