FMDB1003

Overview

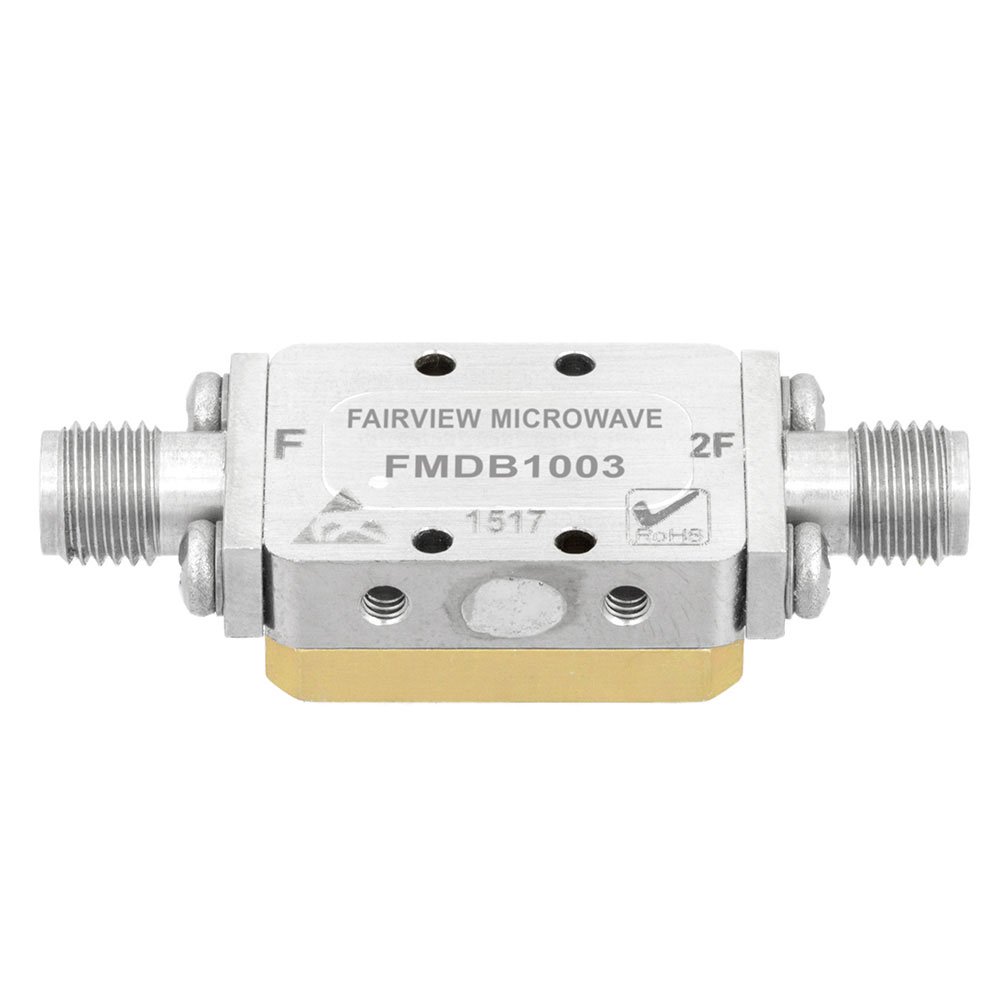

The FMDB1003 is a signal conditioning component manufactured by Fairview Microwave, classified as an SMA Female 2x Frequency Multiplier. It operates with an output frequency range of 18 GHz to 26 GHz and features a conversion loss of 10 dB. The device utilizes an SMA female interface for connectivity. This specific part number represents a specialized RF module designed for frequency multiplication applications within the specified microwave band.

Feature Summary

• Performs 2x frequency multiplication on input signals
• Provides an output frequency range from 18 GHz to 26 GHz
• Features an SMA female connector interface

Applications

• Microwave signal generation systems
• Frequency synthesis circuits
• RF test and measurement equipment

Procurement Notes

Verify the exact datasheet specifications for the FMDB1003 before integration, as manufacturer documentation may contain critical operational limits or pinout details not fully detailed in general listings. Confirm that the SMA female interface matches your system requirements and that the 10 dB conversion loss aligns with your link budget calculations. Ensure thermal management strategies are adequate for the power dissipation characteristics of this multiplier module.

Selection Notes

Select the FMDB1003 when a compact solution for doubling frequencies into the 18-26 GHz range is required. Consider the 10 dB conversion loss impact on overall system gain and noise figure. Verify that the input drive levels are sufficient to achieve the desired output performance. Compare against other multipliers if lower loss or different frequency ranges are necessary for the specific application design.

Part Context

Fairview Microwave specializes in high-performance RF and microwave components, including adapters, connectors, and active modules like frequency multipliers. The FMDB1003 fits within their portfolio of signal conditioning devices designed for precision applications. These components support industries requiring reliable performance in microwave and millimeter-wave frequency bands, often used in communication and testing infrastructure.

FAQ

What is the output frequency range of the FMDB1003?

The FMDB1003 provides an output frequency range of 18 GHz to 26 GHz.

What type of connector does the FMDB1003 use?

The FMDB1003 uses an SMA female connector interface.
