FMFD1002

Overview

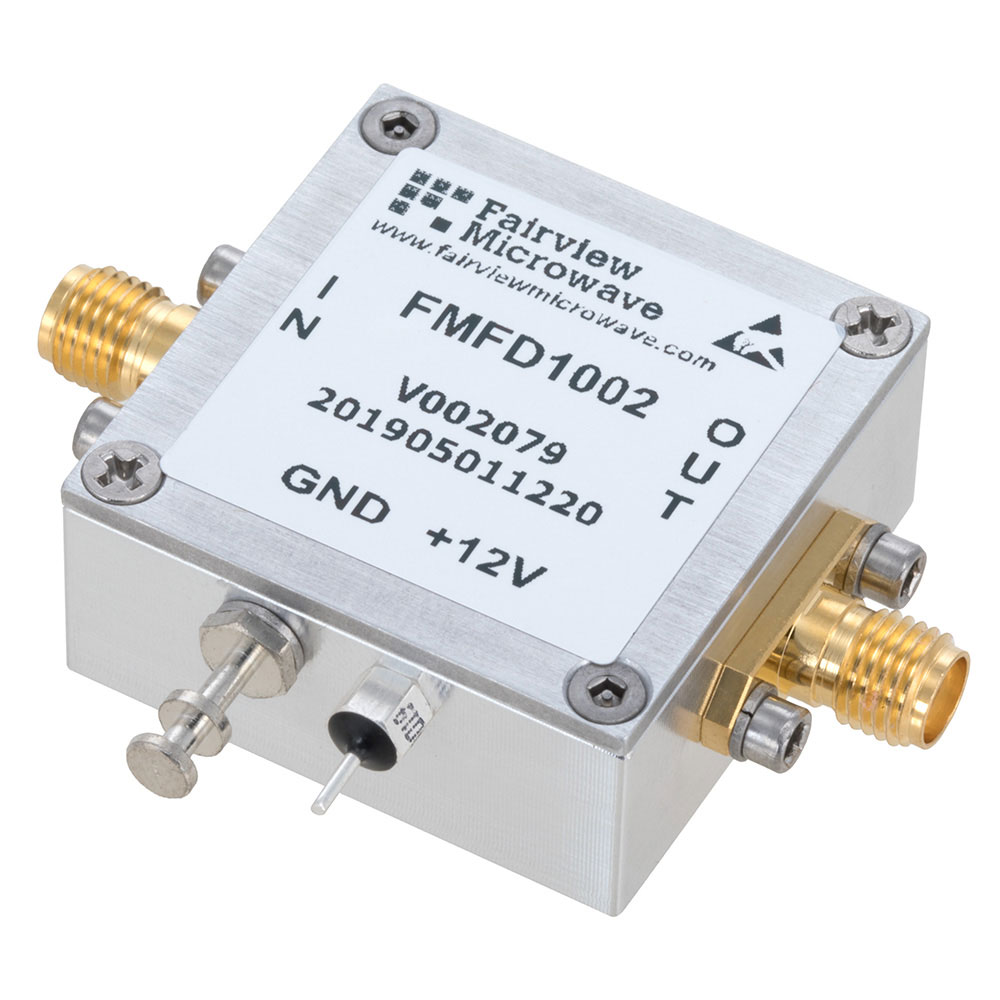

The FMFD1002 is a general-purpose frequency divider module manufactured by Fairview Microwave. It accepts an input frequency range of 0.2 GHz to 6 GHz and provides an output frequency range of 20 MHz to 600 MHz. The device supports an input power level from -12 dBm to +12 dBm. It utilizes SMA connectors for signal interfacing and is designed for applications requiring precise frequency division within the specified microwave spectrum.

Feature Summary

• Performs frequency division with defined input and output spectral ranges
• Utilizes SMA connector interfaces for standard RF integration
• Supports wide input power levels for flexible signal conditioning

Applications

• General purpose frequency synthesis systems
• Microwave test and measurement equipment
• Signal processing modules requiring frequency down-conversion

Procurement Notes

Verify the specific datasheet version and connector polarity (male/female) for SMA interfaces before integration. Confirm that the input power requirements align with your system's output capabilities to ensure optimal performance within the -12 dBm to +12 dBm range. Check for any specific mounting or thermal requirements detailed in the official component documentation.

Selection Notes

Select this module when a fixed frequency division ratio is required between 0.2-6 GHz inputs and 20-600 MHz outputs. Ensure the application environment does not exceed the operational limits defined in the manufacturer's specifications. Consider the SMA interface compatibility with existing PCB or cable infrastructure.

Part Context

Fairview Microwave offers a range of RF ICs and modules, including prescalers and dividers, designed for high-frequency applications. The FMFD1002 belongs to this category of precision components intended for maintaining signal integrity in complex RF systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
