FMFD2001

Overview

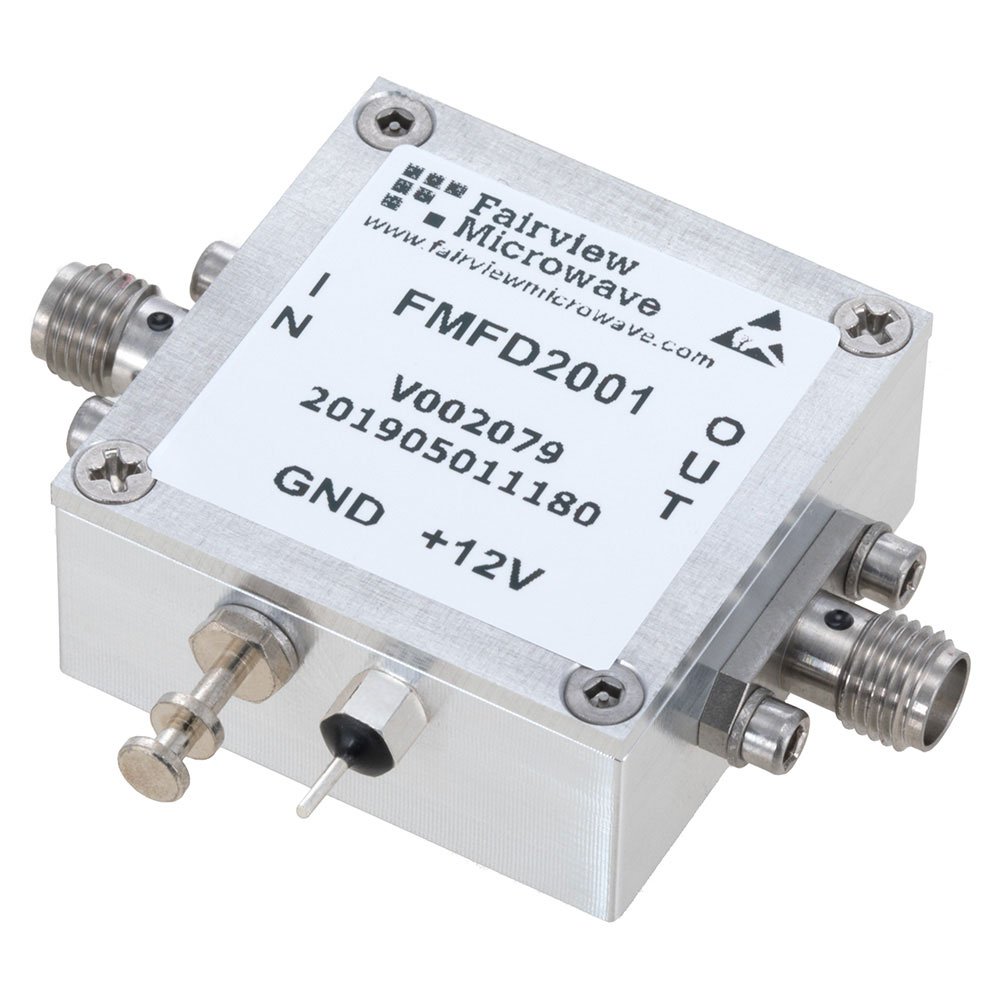

The FMFD2001 is a signal conditioning frequency divider module manufactured by Fairview Microwave. It operates as a divide-by-4 prescaler with SMA connectors. The device supports two distinct frequency ranges: 250 MHz to 9 GHz and 500 MHz to 18 GHz. It is designed for general-purpose RF applications requiring precise frequency division within these specified bands.

Feature Summary

• Provides divide-by-4 frequency division functionality
• Features SMA input and output connectors
• Supports dual operational frequency ranges

Applications

• RF signal processing systems
• Frequency synthesis circuits
• General purpose microwave test equipment

Procurement Notes

Verify the specific frequency range requirement (250 MHz–9 GHz or 500 MHz–18 GHz) against application needs before procurement. Confirm connector type compatibility and ensure environmental conditions match module specifications. Review the official datasheet for detailed electrical characteristics and mechanical dimensions to guarantee system integration success.

Selection Notes

Select this component when a divide-by-4 prescaler is required for frequencies up to 18 GHz. Ensure the system design accommodates the SMA interface and that the chosen frequency band aligns with the module's operational limits. Consider thermal management and PCB layout requirements for optimal performance in high-frequency environments.

Part Context

The FMFD2001 belongs to Fairview Microwave’s signal conditioning portfolio, specifically within the frequency divider category. It serves as a critical component for managing signal frequencies in RF and microwave systems, offering reliable performance across its designated operational bands for professional engineering applications.

Replacement Considerations

FMFD4001 is a confirmed substitute part number offering similar divide-by-4 functionality with an extended frequency range up to 18 GHz. Verify interface compatibility and frequency coverage before substitution.
