Product Detailed Parameters
- Description：FREQ DIVIDER SMA 100MHZ-7GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Frequency Divider
- Frequency：30MHz ~ 2.33GHz, 100MHz ~ 7GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

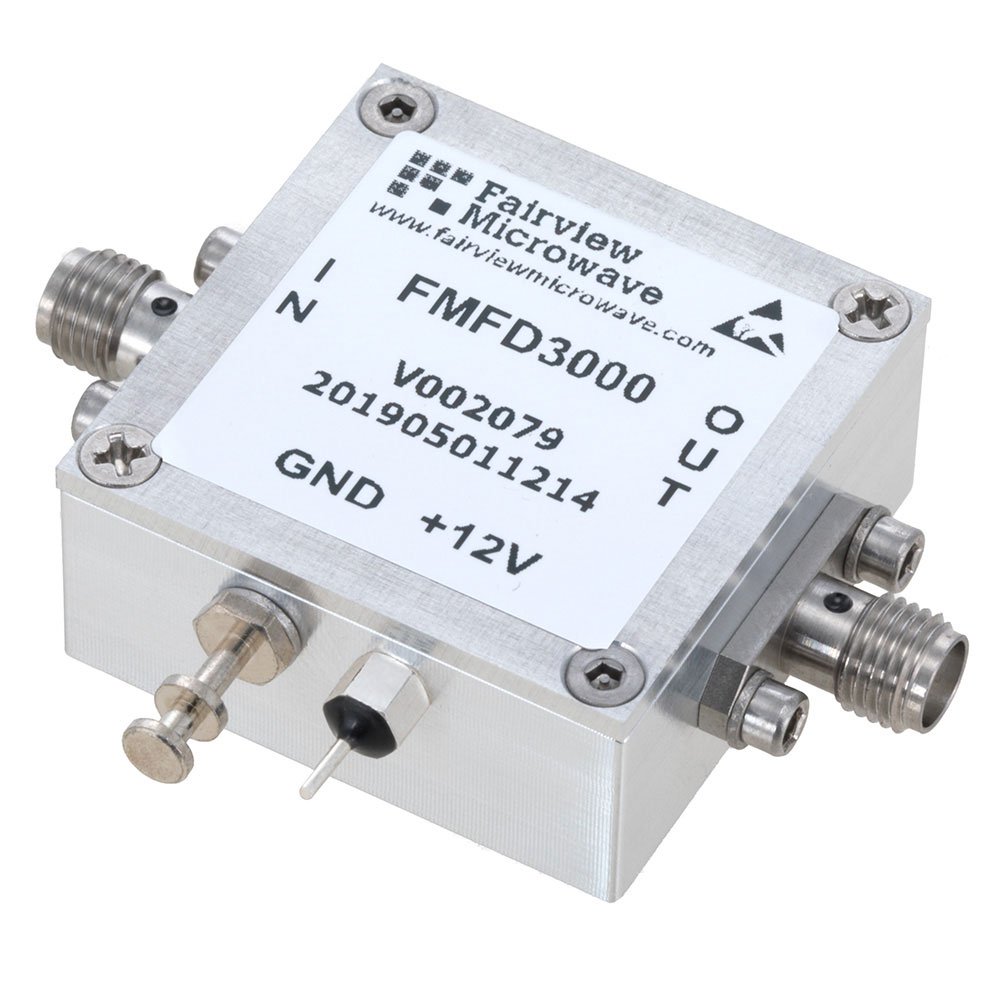

The FMFD3000 is a general-purpose frequency divider module manufactured by Fairview Microwave. It accepts an input frequency range of 100 MHz to 7 GHz and provides an output frequency range of 30 MHz to 2.33 GHz. The device supports an input power level between -12 dBm and +12 dBm. It utilizes SMA connectors for signal interfacing and is designed for integration into RF systems requiring precise frequency division capabilities within the specified microwave spectrum.
Feature Summary
- Provides frequency division functionality with defined input and output spectral ranges
- Utilizes SMA connector interfaces for standard RF system integration
- Operates as a general-purpose module suitable for various RF applications
Applications
- RF signal processing systems
- Frequency synthesis circuits
- Test and measurement instrumentation
Procurement Notes
Verify the specific SMA connector gender and mating requirements against your system interface before procurement. Confirm that the input power levels fall within the -12 dBm to +12 dBm operational window to ensure proper function. Check for any specific mounting or thermal management requirements associated with the module form factor. Ensure compatibility with the target frequency ranges of 100 MHz to 7 GHz input and 30 MHz to 2.33 GHz output.
Selection Notes
Select this component when a fixed frequency division ratio is required within the 100 MHz to 7 GHz input band. Consider the SMA interface compatibility with existing board layouts or cable assemblies. Evaluate if the 30 MHz to 2.33 GHz output range meets the downstream circuit requirements. Assess whether the general-purpose nature of the module aligns with the specific performance needs of the application.
Part Context
Fairview Microwave offers a range of RF components including amplifiers, attenuators, and cable assemblies. The FMFD3000 fits within their portfolio of active RF modules and ICs. It complements passive components by providing active signal processing functions. The product line targets applications in communications, testing, and industrial sectors requiring reliable microwave frequency manipulation.
Replacement Considerations
No public confirmed substitute part numbers are available for the FMFD3000. Direct replacement requires matching the specific frequency ranges, input power limits, and SMA interface characteristics. Alternative solutions may require custom design or selection from different manufacturers with comparable specifications.
FAQ
What is the input frequency range for the FMFD3000?
The input frequency range is 100 MHz to 7 GHz.
What is the output frequency range of the FMFD3000?
The output frequency range is 30 MHz to 2.33 GHz.
What type of connectors does the FMFD3000 use?
The FMFD3000 uses SMA connectors for its input and output interfaces.
