FMFD8000

Overview

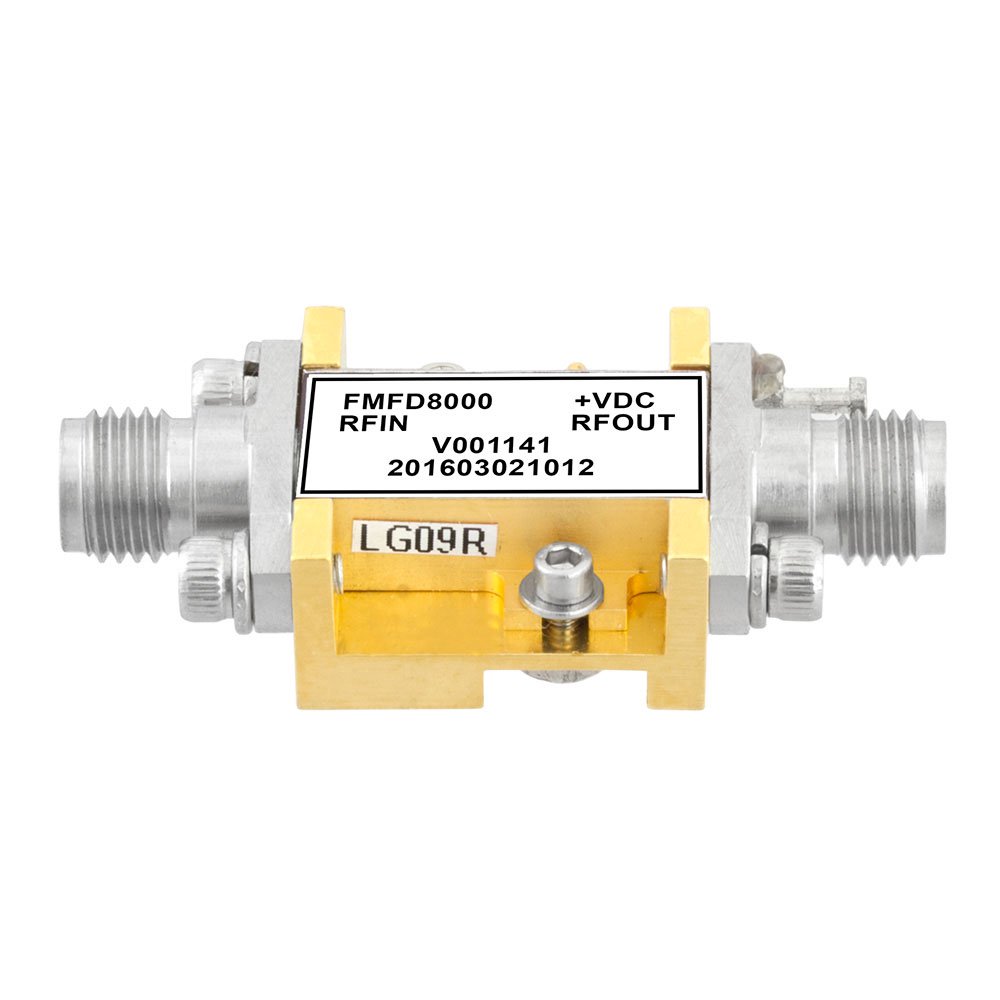

The FMFD8000 is a frequency divider module manufactured by Fairview Microwave. It operates with an input frequency range of 0.5 GHz to 18 GHz and provides an output frequency range of 0.0625 GHz to 2.25 GHz. The component accepts an input power level of -20 dBm. This device functions as a prescaler, dividing the input signal frequency to generate lower frequency outputs suitable for various radio frequency applications.

Feature Summary

• Performs frequency division from high-frequency inputs to lower output frequencies
• Operates within a wide input bandwidth covering microwave ranges
• Designed as a modular component for integration into RF systems

Applications

• High-frequency signal processing systems
• RF test and measurement equipment
• Microwave communication infrastructure

Procurement Notes

Verify the specific datasheet requirements for input power levels and impedance matching before integration. Confirm that the operating temperature range and environmental conditions align with the system design specifications. Ensure compatibility with the surrounding circuitry regarding signal integrity and noise performance.

Selection Notes

Select this component when a fixed division ratio is required for signals between 0.5 GHz and 18 GHz. Consider the output frequency limits and input power sensitivity. Evaluate mechanical form factor and connector types against existing board layouts or chassis constraints.

Part Context

Fairview Microwave specializes in providing a broad portfolio of RF, microwave, and millimeter-wave components. The FMFD8000 belongs to their signal conditioning category, specifically addressing frequency conversion needs. The manufacturer supports these components with technical documentation and global distribution channels.

FAQ

What is the input power specification for the FMFD8000?

The specified input power for the FMFD8000 is -20 dBm.

Does the FMFD8000 support DC input frequencies?

No, the input frequency range starts at 0.5 GHz (500 MHz).
