Product Detailed Parameters
- Description：FREQ DIVIDER SMA 500MHZ-18GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Prescaler
- Frequency：62.5MHz ~ 2.25GHz, 500MHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

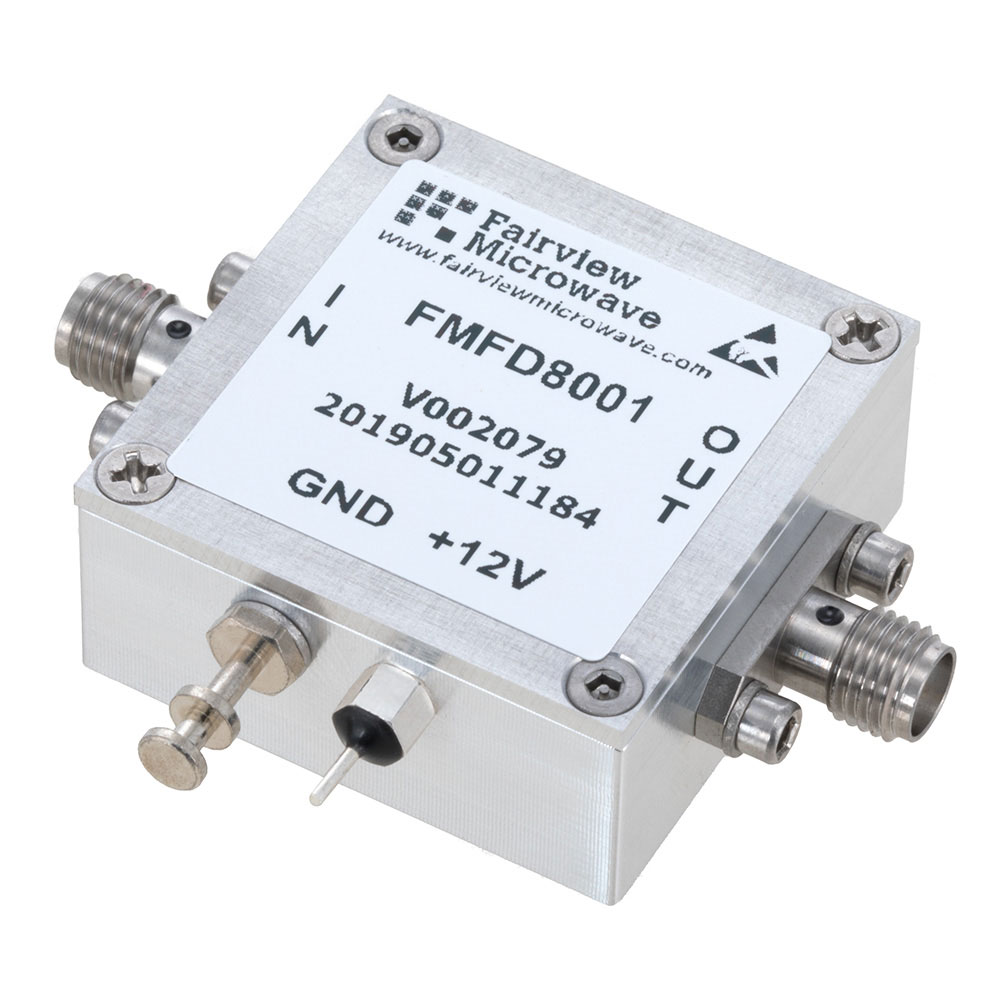

The FMFD8001 is a divide-by-8 prescaler module manufactured by Fairview Microwave. It operates with an input frequency range of 500 MHz to 18 GHz and provides an output frequency range of 62.5 MHz to 2.25 GHz. The device accepts an input power level between -15 dBm and +10 dBm. It utilizes SMA connectors for signal interfacing and is designed for general-purpose RF applications requiring frequency division.
Feature Summary
- Performs divide-by-8 frequency division on high-frequency signals
- Supports wideband operation from 500 MHz up to 18 GHz
- Features standard SMA connector interfaces for integration
Applications
- RF test and measurement instrumentation
- Frequency synthesis systems
- Microwave communication subsystems
Procurement Notes
Verify the specific datasheet version for precise DC bias requirements and pinout definitions before integration. Confirm that the SMA connector polarity matches the system design. Ensure input power levels remain within the specified -15 dBm to +10 dBm range to prevent damage or performance degradation during operation.
Selection Notes
Select this component when a divide-by-8 ratio is required for frequencies up to 18 GHz. Consider the SMA interface compatibility and the specific output frequency range of 62.5 MHz to 2.25 GHz. Evaluate if the general-purpose classification meets the noise and linearity requirements of the target application compared to specialized low-noise dividers.
Part Context
Fairview Microwave offers a broad portfolio of RF, microwave, and mmWave components. The FMFD8001 belongs to their signal conditioning category, specifically functioning as a frequency divider module. This product supports various electronic engineering needs requiring precise frequency scaling in high-frequency environments.
FAQ
What is the frequency division ratio of the FMFD8001?
The FMFD8001 is a divide-by-8 prescaler module.
What are the input and output frequency ranges?
The input frequency range is 500 MHz to 18 GHz, and the output frequency range is 62.5 MHz to 2.25 GHz.
