FMFD8002

Overview

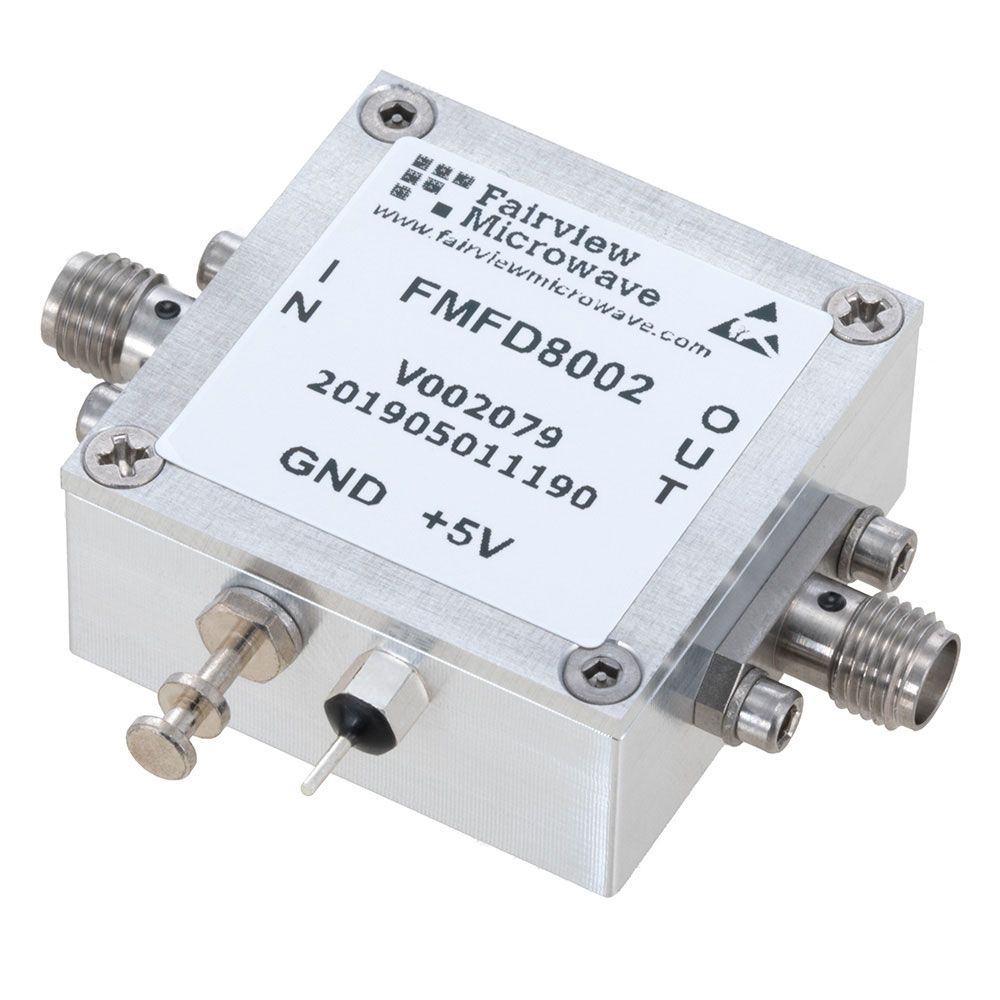

The FMFD8002 is an SMA frequency divider module manufactured by Fairview Microwave. It functions as a divide-by-8 prescaler designed for signal conditioning applications. The component operates within a frequency range of 100 MHz to 20 GHz, utilizing SMA connectors for interface connectivity. Packaged in a bag, this module serves as a general-purpose RF IC solution for high-frequency signal processing tasks.

Feature Summary

• Divides input frequency by eight
• Operates from 100 MHz to 20 GHz
• Utilizes SMA connector interfaces

Applications

• RF signal processing systems
• Frequency synthesis circuits
• General-purpose prescaler modules

Procurement Notes

Verify the specific SMA connector polarity and mating requirements against your system design before procurement. Confirm that the operating frequency range aligns with your application needs. Ensure proper handling procedures are followed due to the sensitive nature of RF components. Check for any specific environmental ratings if deployment in harsh conditions is planned.

Selection Notes

Select this module when a divide-by-8 function is required within the 100 MHz to 20 GHz spectrum. Consider the SMA interface compatibility with existing infrastructure. Evaluate the thermal performance if continuous operation at maximum frequencies is anticipated. Compare against other prescaler options if different division ratios or connector types are necessary.

Part Context

Fairview Microwave specializes in providing a wide range of RF, microwave, and millimeter-wave components. The FMFD8002 falls under their signal conditioning category, offering specialized solutions for frequency manipulation. This product line supports various industrial and communication applications requiring precise signal management.

FAQ

What is the division ratio of the FMFD8002?

The FMFD8002 is a divide-by-8 prescaler.

What type of connectors does the FMFD8002 use?

It utilizes SMA connectors for its interface.
