Product Detailed Parameters
- Description：FREQ MULT SMA JACK 1.8-4 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Frequency Multiplier
- Frequency：900MHz ~ 1.8GHz, 1.8GHz ~ 4GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

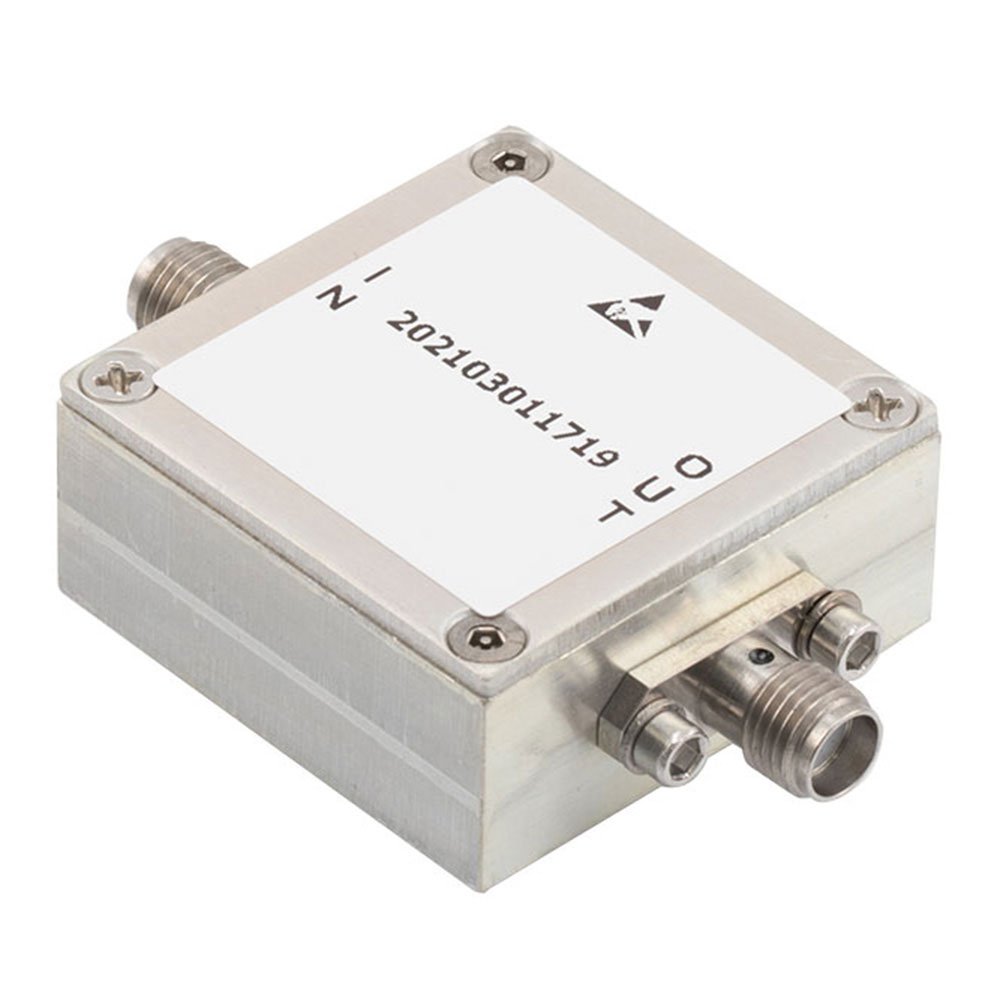

The FMFX2011 is an SMA female signal conditioning frequency multiplier manufactured by Fairview Microwave. It operates with an output frequency range of 1.8 GHz to 4 GHz and exhibits a conversion loss of 14 dB. The component is packaged in a bag and has a factory pack quantity of one unit.
Feature Summary
- Provides frequency multiplication functionality for RF signal conditioning applications
- Features SMA female connectors for interface compatibility
- Designed for general-purpose use within specified frequency bands
Applications
- RF signal generation systems requiring frequency translation
- General-purpose microwave circuit design
- Signal conditioning modules in wireless infrastructure
Procurement Notes
Verify the specific datasheet version and technical specifications directly from Fairview Microwave or authorized distributors before procurement. Confirm that the SMA female interface and 1.8 GHz to 4 GHz output range align with system requirements. Ensure compliance with environmental operating conditions and mechanical dimensions specified in the official documentation to guarantee proper integration.
Selection Notes
Select this component when a fixed frequency multiplication ratio is required for signals between 900 MHz and 1.8 GHz input, resulting in 1.8 GHz to 4 GHz output. Consider the 14 dB conversion loss impact on system gain budget. Verify that the SMA female connector type matches existing board layouts and that the package style fits the assembly constraints.
Part Context
This part belongs to Fairview Microwave's portfolio of passive RF and microwave components. It serves as a specialized integrated module for frequency synthesis tasks. The device complements other signal conditioning products like attenuators and couplers offered by the manufacturer for complete RF chain solutions.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Evaluate alternative frequency multipliers based on matching SMA interfaces, output ranges, and conversion loss characteristics if replacement is necessary.
