FMFX2016

Overview

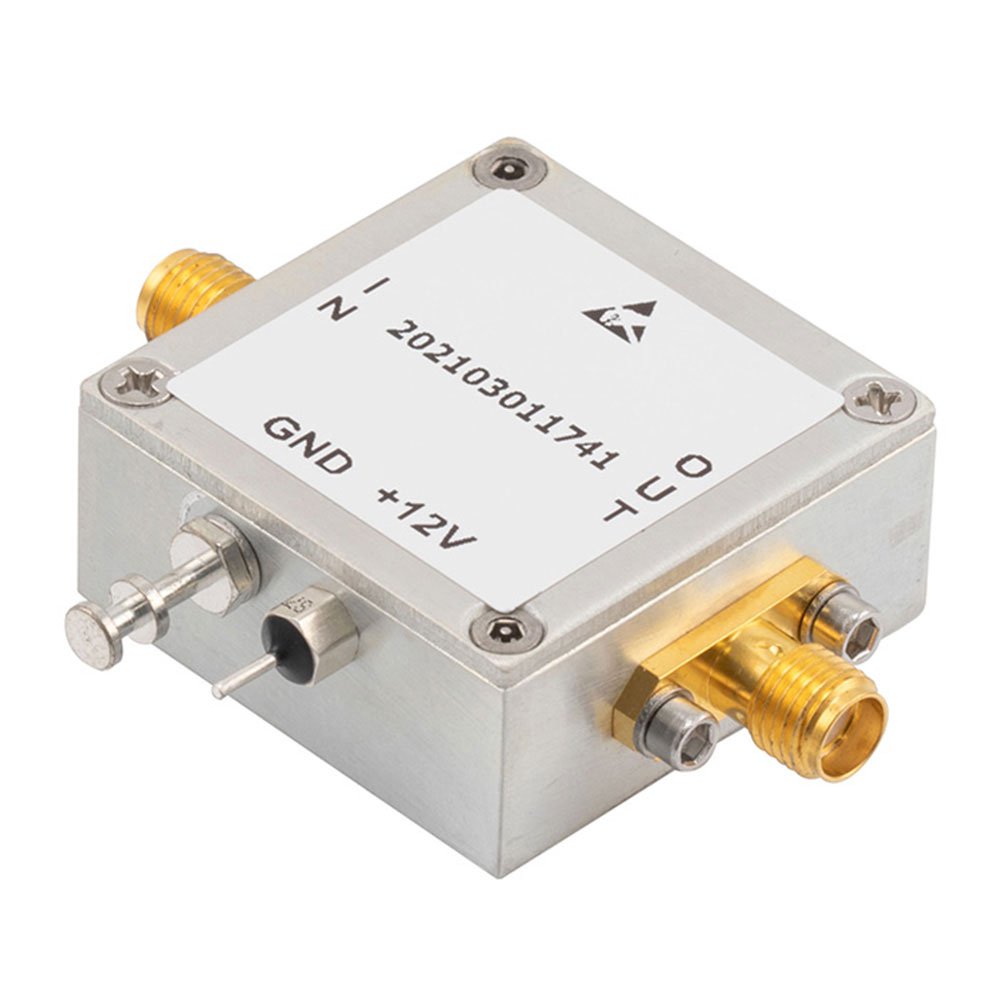

The FMFX2016 is an active frequency multiplier module manufactured by Fairview Microwave. It operates within a general-purpose range of 320 MHz to 450 MHz input and produces an output between 960 MHz and 1.35 GHz. The device utilizes SMA female connectors for interface connectivity. This component is designed for signal conditioning applications requiring frequency multiplication in RF systems.

Feature Summary

• Active frequency multiplication functionality
• General-purpose operational design
• SMA female connector interface

Applications

• RF signal generation systems
• Frequency synthesis circuits
• Microwave communication equipment

Procurement Notes

Verify the specific datasheet version for detailed electrical characteristics such as conversion gain, harmonic suppression, and power consumption levels. Confirm that the SMA female connector compatibility matches your system requirements. Ensure the operating temperature range aligns with your environmental conditions before integration into final assemblies.

Selection Notes

Select this module when a compact solution for multiplying frequencies from the VHF/UHF range to the L-band/S-band is required. Consider the SMA interface constraints and the need for active biasing supplies. Evaluate thermal management needs based on the power dissipation specifications found in the official technical documentation.

Part Context

This component belongs to Fairview Microwave's portfolio of RF integrated circuits and modules. It serves as a specialized signal conditioning element distinct from passive components like attenuators or couplers. The product line focuses on providing ready-to-use active solutions for frequency conversion tasks in microwave engineering.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Engineers must evaluate alternative frequency multipliers based on matching frequency ranges, connector types, and active power requirements when seeking replacements.

FAQ

What is the input frequency range for the FMFX2016?

The input frequency range is 320 MHz to 450 MHz.

What type of connectors does the FMFX2016 use?

The module uses SMA female connectors.

What is the output frequency range of this multiplier?

The output frequency range is 960 MHz to 1.35 GHz.
