Product Detailed Parameters
- Description：LIMITER SMA 11-18 GHZ 16 DBM
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Limiter
- Frequency：11GHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：SMA In-Line Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

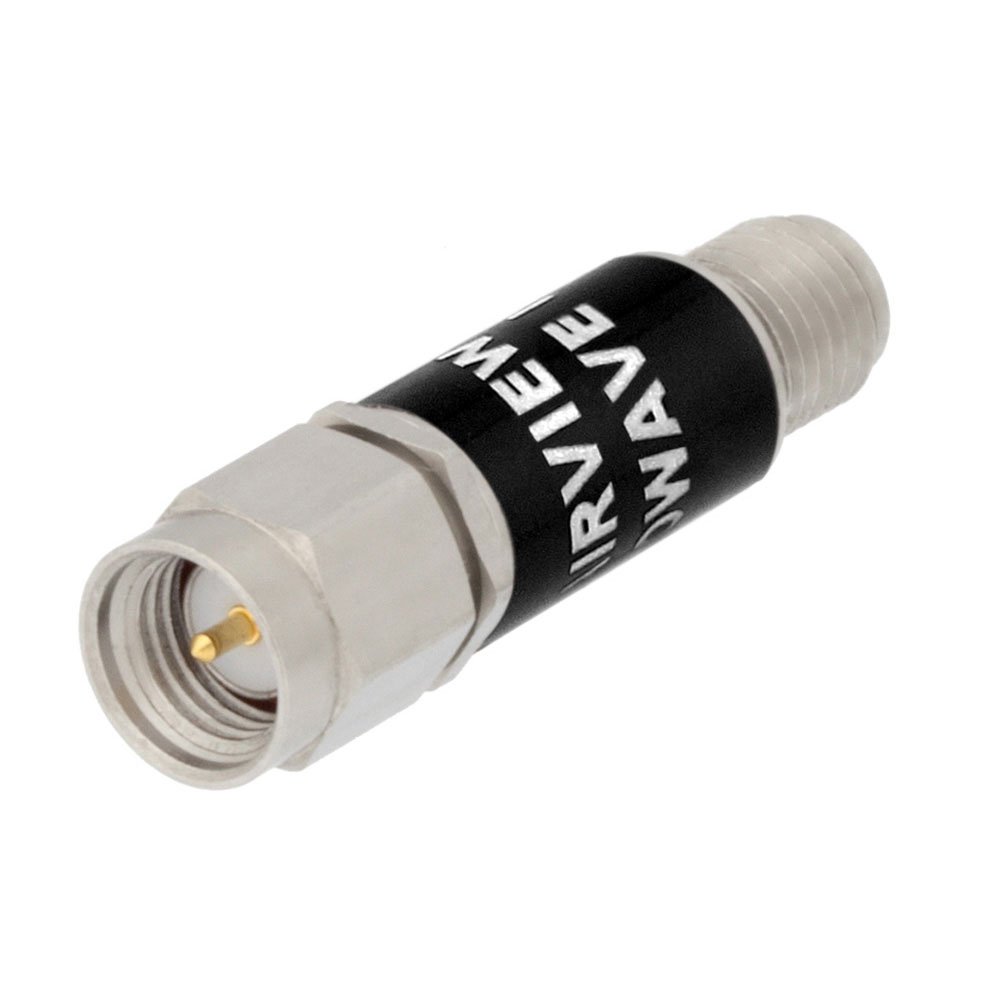

The FMMS10027 is a high-power signal limiter manufactured by Fairview Microwave, designed for RF applications within the 11 GHz to 18 GHz frequency range. It features an SMA interface and supports a peak power handling capacity of 100 Watts. The device exhibits a recovery time of 20 nanoseconds and maintains a flat leakage level of 16 dBm, with a peak flat leakage specification of 23 dBm.
Feature Summary
- Provides high-power signal limiting capabilities up to 100 Watts peak power
- Ensures rapid signal recovery with a 20 nanosecond response time
- Maintains controlled leakage levels at 16 dBm flat and 23 dBm peak
Applications
- RF system protection against high-power signal surges
- Signal conditioning in microwave communication links
- Limiter integration in radar receiver front-ends
Procurement Notes
Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the received unit matches the FMMS10027 designation and SMA interface specifications. Request official documentation to validate performance parameters against the datasheet requirements before deployment.
Selection Notes
Select this component when high-power handling and fast recovery are critical for protecting sensitive downstream equipment. Ensure the operating environment aligns with the specified 11 GHz to 18 GHz frequency band. Evaluate thermal management requirements given the 100 Watt peak power rating to maintain reliable operation under continuous stress conditions.
Part Context
This limiter belongs to Fairview Microwave's signal conditioning portfolio, which includes various RF components for test and measurement applications. It complements other passive devices like adapters and cables by providing active protection functions within high-frequency signal chains.
Replacement Considerations
No public confirmed substitute part numbers are available for the FMMS10027. Verify compatibility with existing SMA connectors and ensure replacement units meet identical frequency and power specifications if sourcing from alternative suppliers.
