FMMT10036

Overview

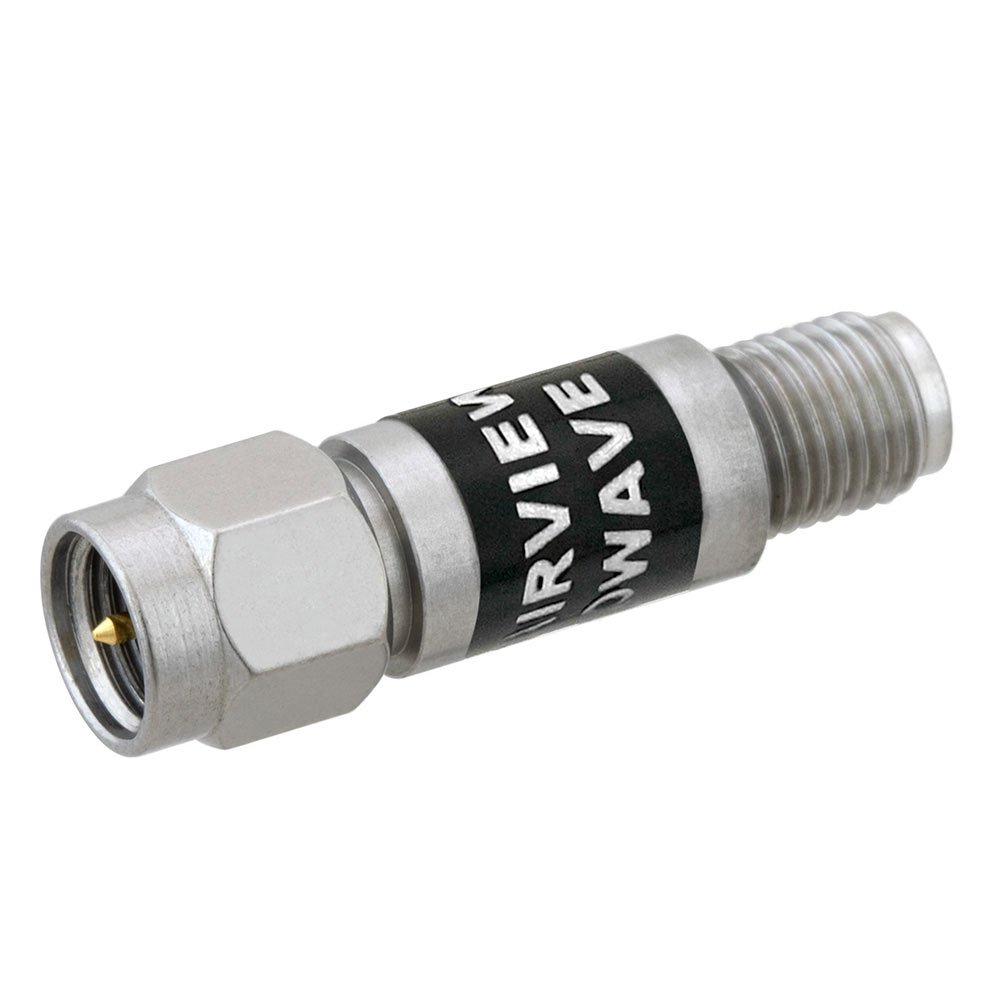

The FMMT10036 is a high-power signal limiter manufactured by Fairview Microwave, designed for RF signal conditioning applications. It features SMA connectors and operates within a frequency range of 7 GHz to 12 GHz. The device handles a peak power of 100W with a recovery time of 200 microseconds. It maintains a flat leakage of 16 dBm. The unit weighs 567 grams and is packaged in a bag.

Feature Summary

• Provides high-power limiting capabilities for RF signal paths
• Ensures stable operation with low flat leakage characteristics
• Features rapid recovery time for continuous signal protection

Applications

• High-power RF signal conditioning systems
• Protection of sensitive receiver components from overload
• Microwave communication infrastructure maintenance

Procurement Notes

Verify availability status as distribution may be restricted in certain regions. Confirm connector type and frequency specifications match system requirements before ordering. Check for updated datasheets to ensure compliance with current technical standards. Validate packaging details upon receipt.

Selection Notes

Select this component when operating frequencies fall between 7 GHz and 12 GHz. Ensure the system can accommodate the 567-gram weight and SMA interface. Verify that the 100W peak power rating exceeds maximum expected input levels. Consider the 200-microsecond recovery time for dynamic signal environments.

Part Context

This limiter belongs to Fairview Microwave's signal conditioning product line, specifically categorized under limiters within the filters subcategory. It serves as a protective element in microwave circuits, distinct from passive cable assemblies or adapters offered by the same manufacturer.

FAQ

What is the operating frequency range?

The device operates effectively from 7 GHz to 12 GHz.

What is the peak power handling capacity?

The limiter supports a peak power of 100W.
