FMMT1019

Overview

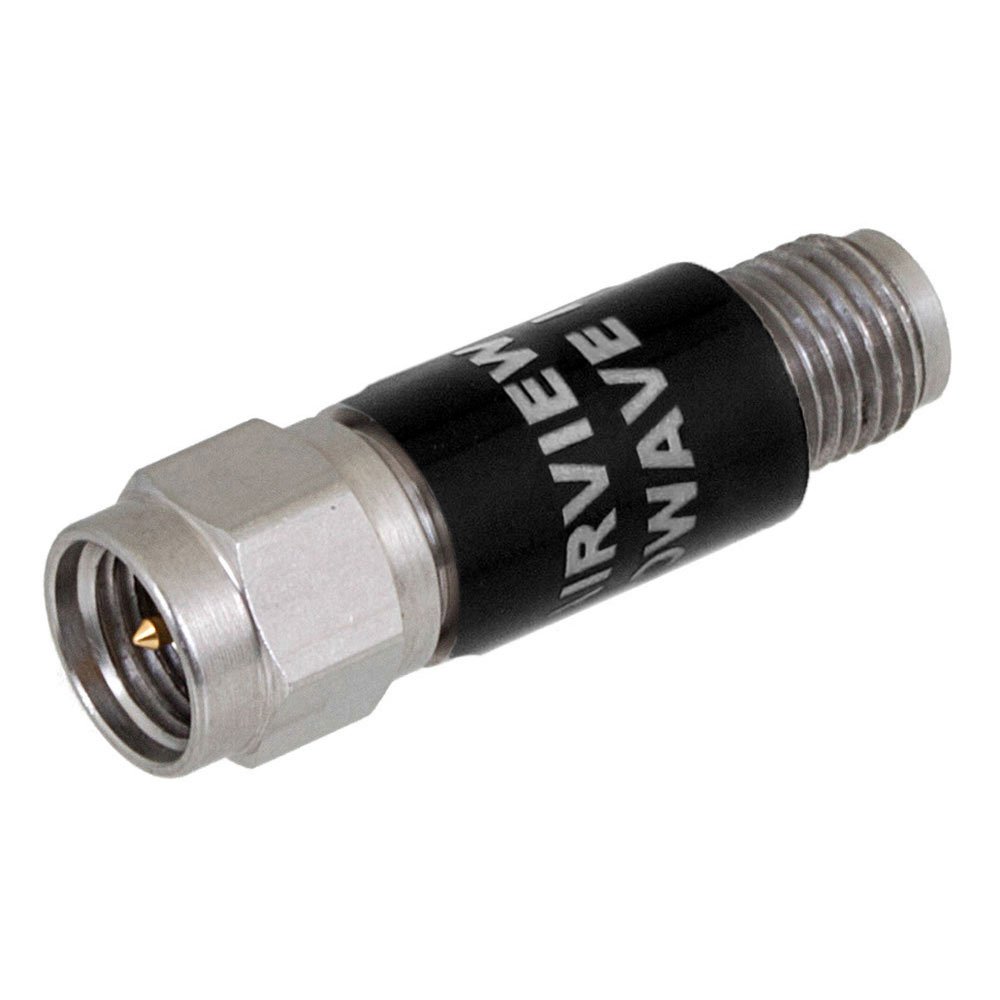

The FMMT1019 is a high power limiter manufactured by Fairview Microwave, designed for signal conditioning applications. It operates within a frequency range of 1 GHz to 2 GHz and features an SMA connector interface. The device supports a peak power handling capability of 100W with a recovery time of 20 ns. It exhibits a flat leakage specification of 19 dBm. This component is categorized under limiters within the signal conditioning product line.

Feature Summary

• Provides high power limiting functionality for RF signal paths
• Ensures rapid recovery from power events
• Maintains consistent leakage performance across the operating band

Applications

• RF signal path protection in communication systems
• High power limiter integration in test and measurement equipment
• Signal conditioning in radar systems

Procurement Notes

Verify the specific SMA connector gender and pin configuration against your system requirements before procurement. Confirm that the 100W peak power rating aligns with your application's maximum expected input levels. Ensure the 1 GHz to 2 GHz frequency range covers your operational bandwidth. Check for any environmental constraints regarding the 20 ns recovery time. Validate compatibility with existing mounting hardware as packaging details may vary.

Selection Notes

Select this component when high power protection is required within the 1-2 GHz spectrum. Consider the 100W peak power handling and 20 ns recovery speed for demanding environments. Evaluate the 19 dBm flat leakage characteristic for signal integrity needs. Compare against other limiters if wider frequency ranges or different connector types are necessary. Ensure the SMA interface matches your cable assembly specifications.

Part Context

Fairview Microwave produces the FMMT1019 as part of its signal conditioning portfolio. This series focuses on protecting sensitive downstream components from excessive RF power. The product falls under the broader category of RF limiters, which are essential for maintaining system reliability in high-power transmission scenarios.

Replacement Considerations

No public confirmed substitute part numbers are available for the FMMT1019.
