FMNS5003

Overview

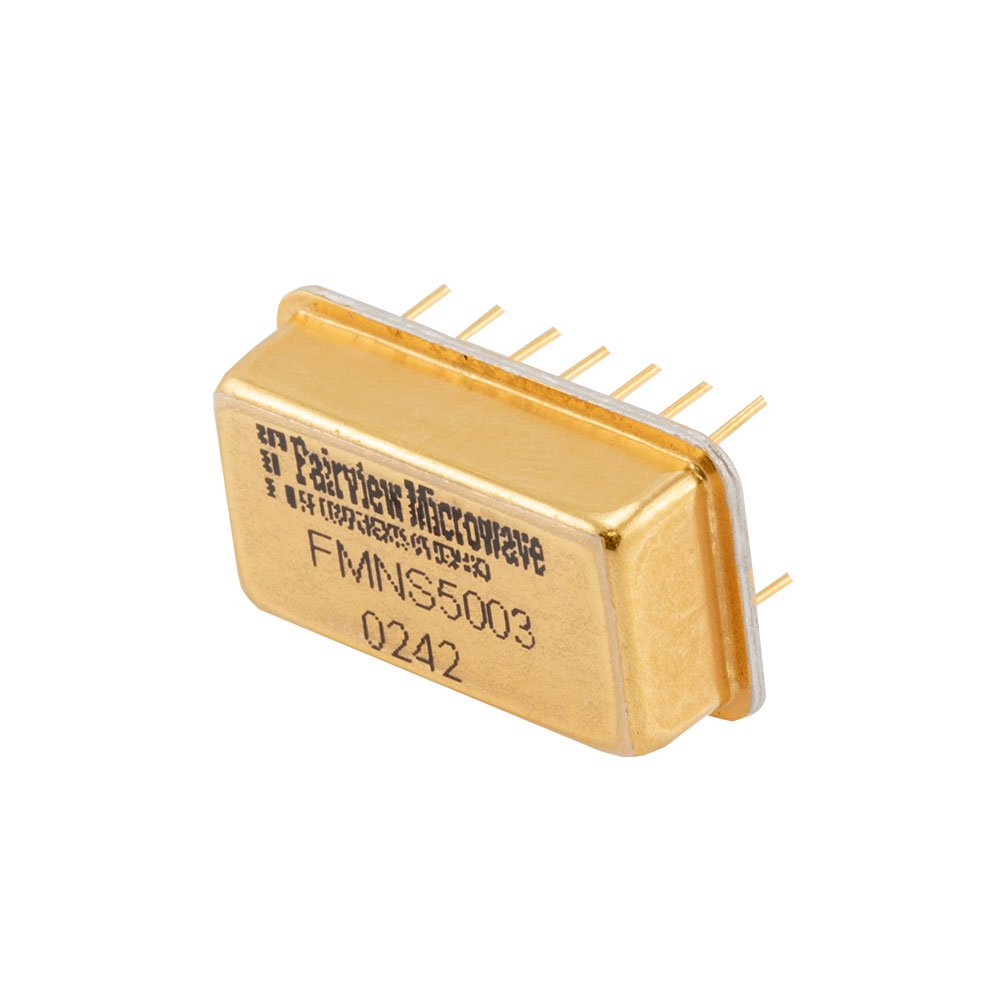

The FMNS5003 is a general-purpose RF noise source manufactured by Fairview Microwave. It operates within a frequency range of 10 MHz to 3 GHz and requires a 15V supply voltage for functionality. The component is housed in a DIP package, designed for integration into test and measurement systems requiring calibrated noise generation.

Feature Summary

• Generates calibrated noise signals across the specified microwave frequency spectrum
• Utilizes a standard DIP package format for straightforward circuit board integration
• Operates with a single 15V DC power supply requirement

Applications

• Noise figure measurement of amplifiers and receivers
• System sensitivity testing in communication equipment
• Calibration of spectrum analyzers and signal generators

Procurement Notes

Verify the specific datasheet version and pinout configuration before integration. Confirm that the 15V supply rail meets the current requirements outlined in the official documentation. Ensure thermal management aligns with the DIP package specifications during continuous operation.

Selection Notes

Select this component when a broadband noise source covering up to 3 GHz is required. The DIP packaging facilitates easy prototyping and insertion into standard test fixtures. Consider the 15V supply constraint when designing the power delivery network for the application.

Part Context

Fairview Microwave provides specialized RF components for test and measurement applications. The FMNS5003 belongs to their line of general-purpose RF ICs and modules, supporting engineers in characterizing high-frequency system performance through standardized noise generation techniques.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
