FMSN3901

Overview

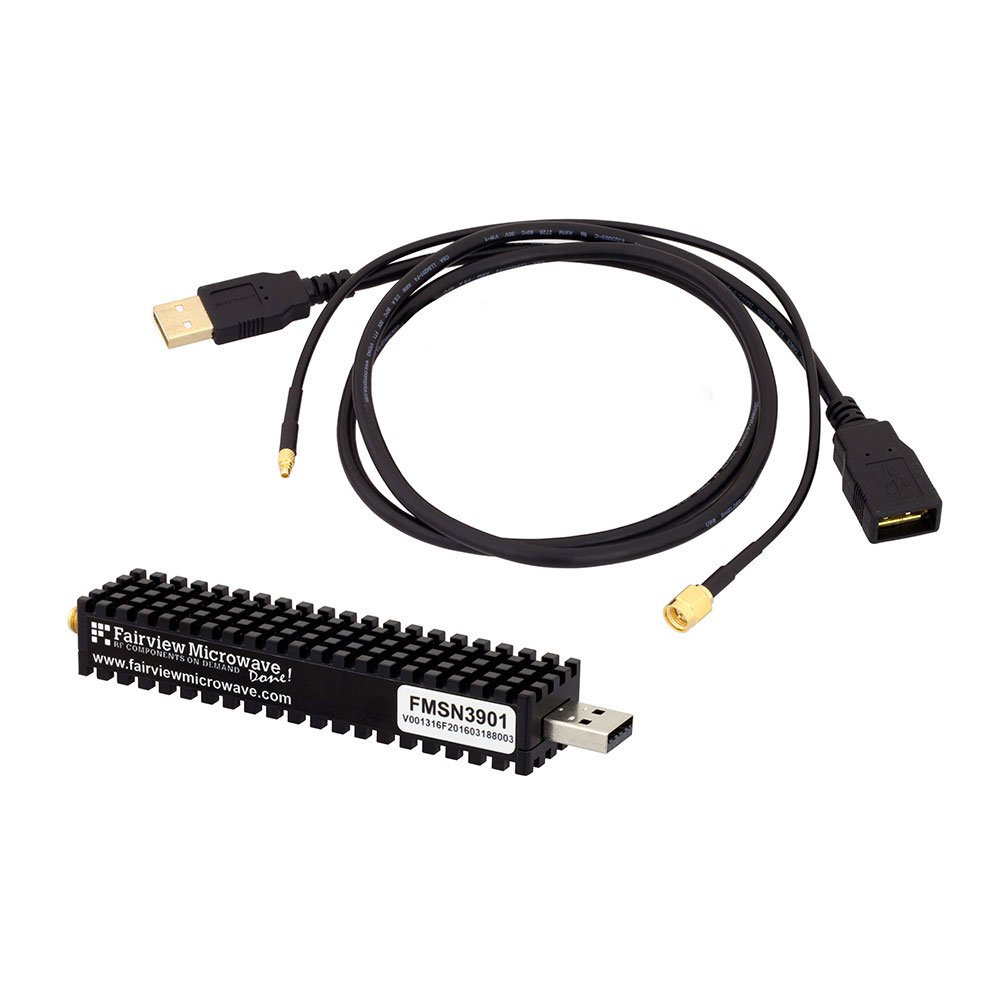

The FMSN3901 is a USB Frequency Synthesizer utilizing Phase Locked Loop (PLL) technology, manufactured by Fairview Microwave. It operates within an output frequency range of 25 MHz to 6 GHz and requires a 20 MHz reference input signal. The module delivers an output power of -17 dBm with a phase noise specification of -86 dBc/Hz at the SMA interface. Designed for robust performance, it functions within a temperature range of 0°C to +55°C and draws a typical operating supply current of 470 mA.

Feature Summary

• Generates stable RF signals across a wide microwave frequency spectrum using integrated PLL architecture
• Provides low phase noise performance suitable for high-fidelity signal generation applications
• Features standard SMA connectors for straightforward integration into existing RF test setups

Applications

• Radar system signal generation
• Wireless communication test equipment
• Instrumentation and measurement devices

Procurement Notes

Verify component authenticity through authorized Fairview Microwave channels or certified distributors. Confirm that the specific part number matches the required frequency range and connector type. Ensure environmental conditions align with the specified operating temperature limits. Request official datasheets to validate electrical parameters before finalizing procurement decisions.

Selection Notes

Select this module when a compact solution is needed for generating frequencies up to 6 GHz with precise stability. Consider the 20 MHz reference requirement and -17 dBm output power level against system needs. Evaluate the SMA interface compatibility and 470 mA current consumption for power budgeting. This unit suits applications requiring reliable synthesizer performance in a small form factor.

Part Context

Fairview Microwave specializes in providing high-quality RF, microwave, and mmWave components. The FMSN3901 belongs to their line of wireless and RF integrated circuits, specifically focusing on frequency synthesis solutions. This product supports engineers designing systems that require precise frequency control and signal integrity in demanding environments.

Replacement Considerations

Consult Fairview Microwave technical documentation for direct cross-references. Verify that any substitute maintains identical frequency ranges, phase noise specifications, and connector types. Ensure replacement modules meet the same thermal and electrical requirements.
