Product Detailed Parameters
- Description：WG TERMINATION WR-137 5.38-8.17
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Termination
- Frequency：5.38GHz ~ 8.17GHz
- RF Type：Radar
- Secondary Attributes：500W
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

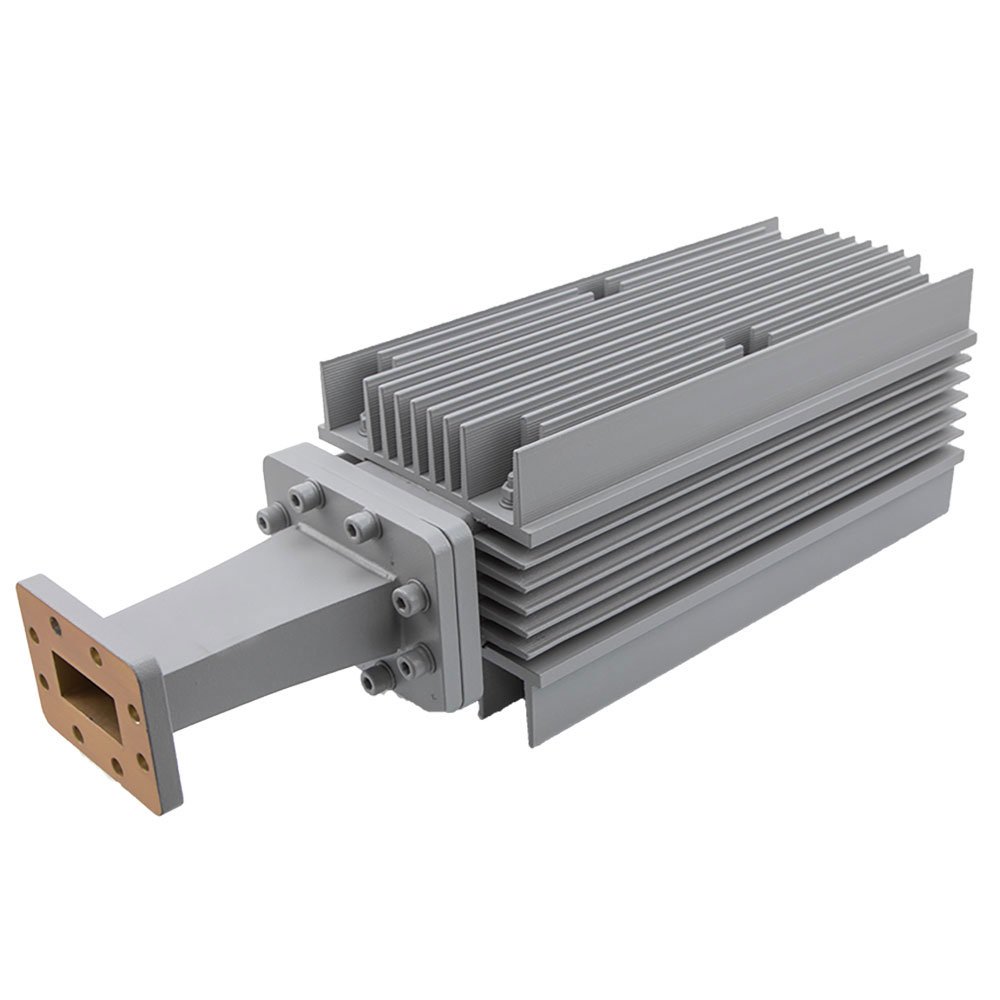

The FMW137TR1001 is a WR-137 waveguide termination manufactured by Fairview Microwave. It operates within a frequency range of 5.38 GHz to 8.17 GHz and handles a power rating of 500 watts. The unit is constructed from aluminum and features a CPR-137F flange interface. This component serves as an RF terminator designed for high-power applications in the specified millimeter-wave band.
Feature Summary
- High power handling capability rated at 500 watts
- Constructed from durable aluminum material
- Utilizes CPR-137F flange configuration
Applications
- RF system load testing
- Waveguide circuit termination
- Millimeter-wave signal absorption
Procurement Notes
Verify the CPR-137F flange compatibility with existing waveguide infrastructure before integration. Confirm that operational power levels remain within the 500-watt limit to prevent thermal damage. Ensure the frequency range aligns with system requirements between 5.38 GHz and 8.17 GHz. Check for RoHS compliance status if environmental regulations apply to the deployment environment.
Selection Notes
Select this model when a robust, high-power termination is required for WR-137 waveguide systems. The aluminum construction offers durability for demanding environments. Consider the specific CPR-137F flange requirement to ensure mechanical fit. Evaluate the 500-watt capacity against peak system loads to maintain safety margins during operation.
Part Context
This component belongs to the RF Terminators category under Wireless & RF Integrated Circuits. It is part of Fairview Microwave's waveguide accessories line. The product supports standard WR-137 dimensions. It complements other waveguide components like isolators and flexible sections in complete transmission setups.
Replacement Considerations
Direct substitutes include models with identical WR-137 dimensions and CPR-137F flanges. Verify equivalent 500-watt power ratings and matching 5.38-8.17 GHz frequency ranges. Aluminum construction should be maintained for similar thermal properties.
