FMW159TR1002

Overview

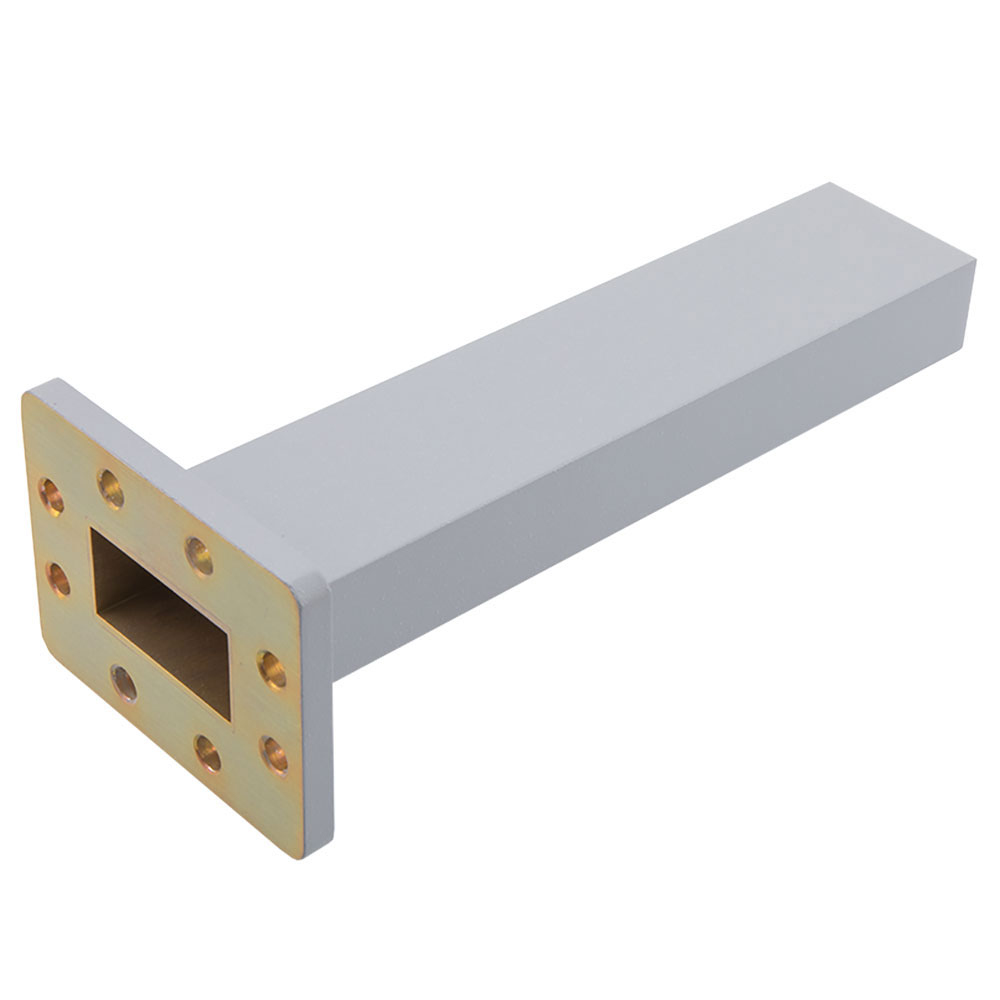

The FMW159TR1002 is an RF terminator manufactured by Fairview Microwave, designed for WR-159 waveguide applications. It operates within a frequency range of 4.64 GHz to 7.05 GHz and supports an average power handling capacity of 5 Watts. The component features an aluminum body and utilizes a CPR-159F flange interface for secure mounting. This termination is intended to absorb microwave energy in waveguide systems.

Feature Summary

• Designed specifically for WR-159 waveguide systems
• Constructed with an aluminum housing for durability
• Utilizes a CPR-159F flange connection style

Applications

• Microwave test and measurement setups
• Waveguide system load termination
• Radar signal absorption applications

Procurement Notes

Verify the specific flange type compatibility with existing waveguide infrastructure before procurement. Confirm that the operating frequency range aligns with system requirements. Ensure the average power rating of 5 Watts is sufficient for the intended application environment. Check for any specific environmental ratings if used in harsh conditions.

Selection Notes

Select this component when a termination for WR-159 waveguides is required. Consider the 4.64 GHz to 7.05 GHz operational bandwidth. Evaluate the 5 Watt power handling against system signals. The CPR-159F flange must match the mating hardware in the assembly.

Part Context

This part belongs to Fairview Microwave's line of RF terminators. It serves as a passive component to prevent signal reflection in high-frequency circuits. The WR-159 designation indicates its physical size and standard compliance within the broader waveguide interconnect ecosystem.

Replacement Considerations

No public confirmed substitute part numbers are available.
