FMW187TR1002

Overview

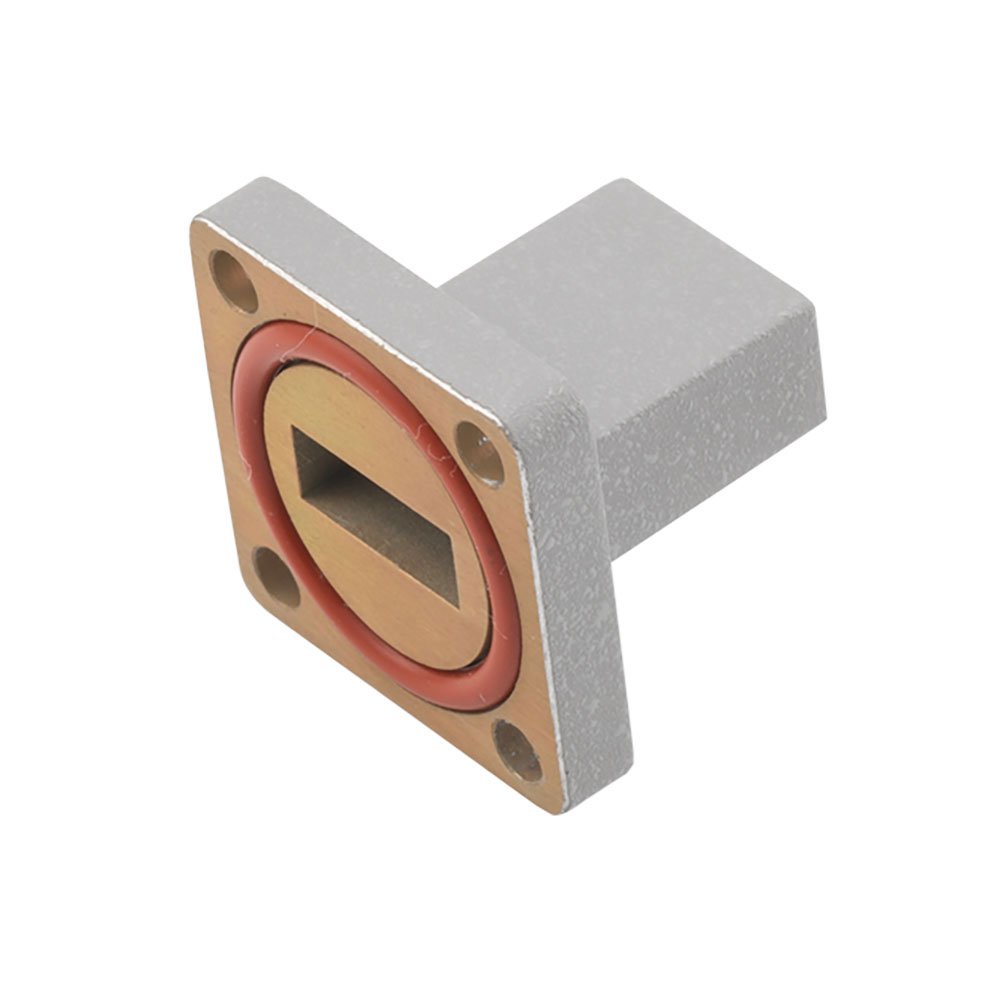

The FMW187TR1002 is an RF terminator manufactured by Fairview Microwave, designed for WR-187 waveguide applications. It operates within a frequency range of 3.94 GHz to 5.99 GHz and supports a power handling capacity of 5 Watts. The unit features an aluminum construction with a CPR-187F flange configuration, ensuring compatibility with standard waveguide interfaces in high-frequency systems.

Feature Summary

• Designed specifically for WR-187 waveguide systems
• Utilizes aluminum construction for durability
• Equipped with CPR-187F flange configuration

Applications

• WR-187 waveguide system termination
• High-frequency signal absorption
• RF testing and measurement setups

Procurement Notes

Verify the specific CPR-187F flange compatibility before integration into existing waveguide assemblies. Confirm that the 5-watt power rating aligns with operational requirements. Ensure the frequency range covers the intended application spectrum. Check manufacturer documentation for any updates regarding material specifications or dimensional tolerances.

Selection Notes

Select this component when terminating WR-187 waveguides in the 3.94 GHz to 5.99 GHz band. Consider the 5-watt power limit for thermal management. The aluminum body and CPR-187F flange are critical for mechanical fit. Evaluate if higher power ratings are needed for more demanding environments.

Part Context

This part belongs to Fairview Microwave's line of RF terminators. It complements other waveguide accessories like shims and pressurizing sections. The product serves as a passive component for managing signal reflections in microwave circuits.

Replacement Considerations

No public confirmed substitute part numbers are available.
