Product Detailed Parameters
- Description：WG TERMINATION WR-284 2.6-3.95 G
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Termination
- Frequency：2.6GHz ~ 3.95GHz
- RF Type：Radar
- Secondary Attributes：5W
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

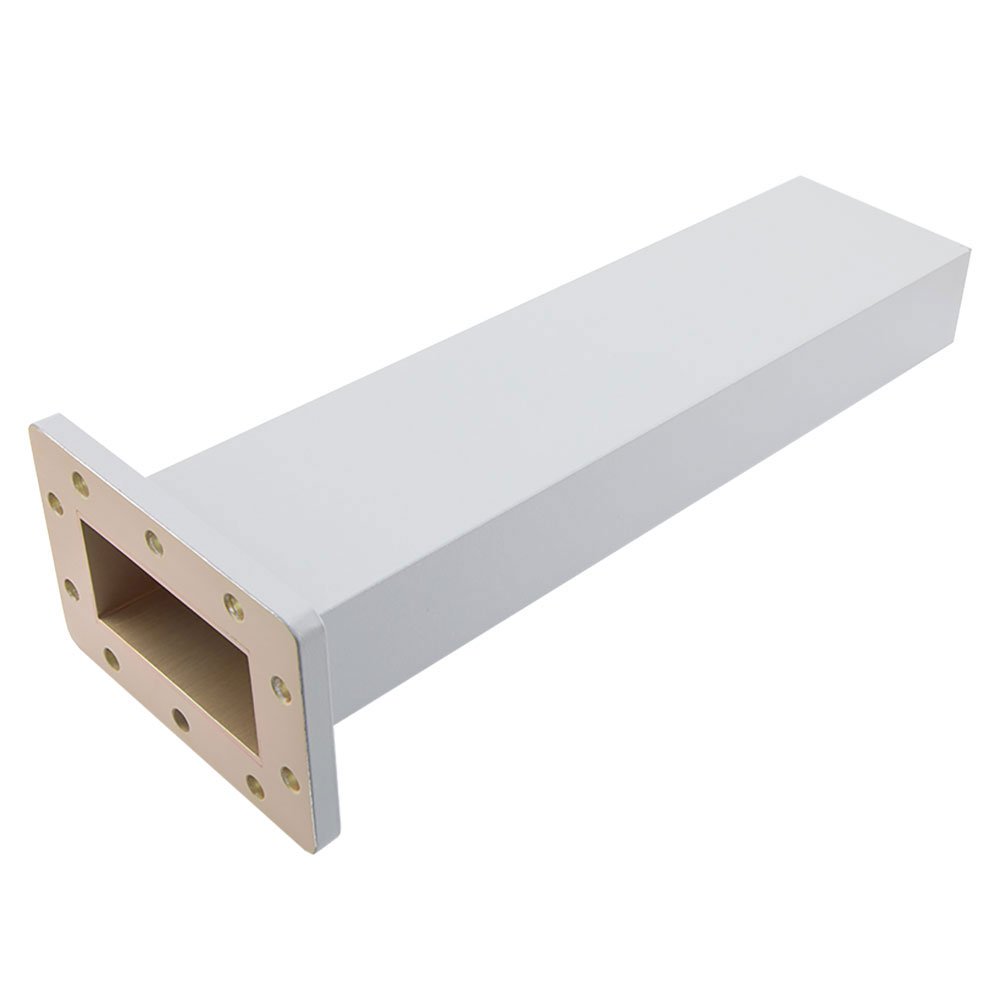

The FMW284TR1001 is a WR-284 waveguide termination manufactured by Fairview Microwave. It operates within a frequency range of 2.6 GHz to 3.95 GHz and supports an average power handling capacity of 5 Watts. The component features an aluminum body and utilizes a CPR-284F flange for connection. This RF termination is designed for use in radar applications, providing signal absorption within the specified microwave band.
Feature Summary
- Provides precise impedance matching and signal absorption for WR-284 waveguide systems
- Constructed with an aluminum housing for durability and thermal management
- Equipped with a CPR-284F flange interface for secure mechanical integration
Applications
- Radar system load termination
- Microwave test and measurement setups
- Waveguide circuit isolation
Procurement Notes
Verify the specific flange type compatibility, ensuring the CPR-284F interface matches the host waveguide assembly. Confirm that the operational frequency range of 2.6 GHz to 3.95 GHz aligns with the system requirements. Check for RoHS compliance status if environmental regulations apply to the deployment environment. Ensure the 5 Watt average power rating is sufficient for the intended application load.
Selection Notes
Select this component when a fixed load is required for WR-284 waveguide lines operating below 4 GHz. The aluminum construction offers a balance of weight and thermal performance. Consider the physical dimensions and flange style to ensure proper fit within the existing waveguide infrastructure. Verify that the power handling capabilities meet the peak and average power demands of the signal source.
Part Context
This part belongs to the RF Termination category under Wireless & RF Integrated Circuits or RF Interconnects. It serves as a passive component for managing electromagnetic energy in high-frequency circuits. The product is distributed by Fairview Microwave and is categorized alongside other waveguide accessories and terminations.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should verify dimensional tolerances and flange specifications when considering alternative manufacturers.
