Product Detailed Parameters
- Description：WG TERMINATION WR-28 26.5-40 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Termination
- Frequency：26.5GHz ~ 40GHz
- RF Type：Radar
- Secondary Attributes：50W
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

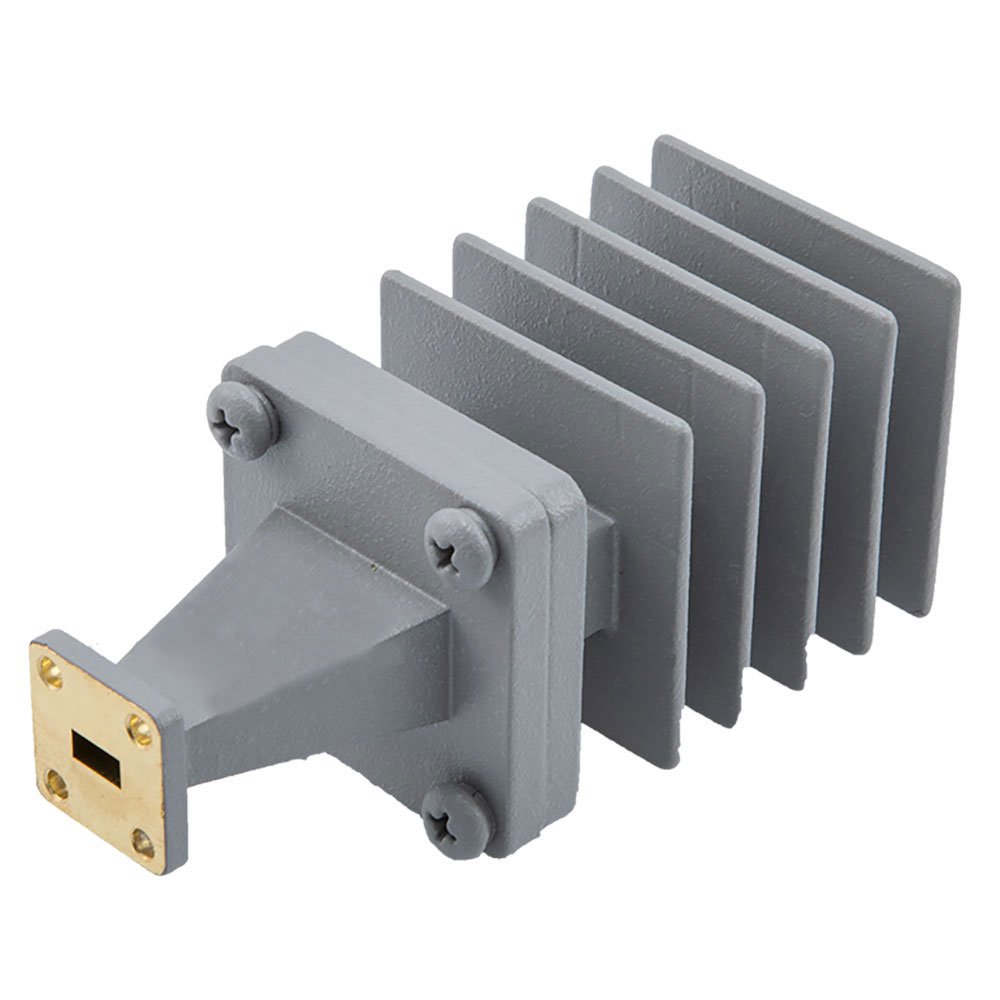

The FMW28TR1004 is a WR-28 waveguide termination manufactured by Fairview Microwave. It operates within a frequency range of 26.5 GHz to 40 GHz. The component features a brass body and includes a UG style flange for secure mounting. It is rated for a power handling capacity of 50 Watts. This device serves as an RF terminator designed for high-frequency applications requiring precise impedance matching and signal absorption.
Feature Summary
- Constructs a robust termination using a brass body material suitable for high-power environments
- Integrates a UG style flange to ensure standardized waveguide interface compatibility
- Provides effective signal absorption across the specified millimeter-wave frequency spectrum
Applications
- High-frequency test and measurement setups requiring precise load termination
- Millimeter-wave radar systems needing stable signal absorption
- Communication equipment testing in the WR-28 band
Procurement Notes
Verify the specific flange configuration and material composition against project requirements before ordering. Confirm that the 50 Watt power rating aligns with operational thermal limits. Ensure the WR-28 waveguide dimensions match existing system interfaces. Check for any regional distribution restrictions or availability constraints directly with authorized suppliers.
Selection Notes
Select this model when a 50 Watt power handling capability is required for WR-28 waveguide applications. Consider the brass construction for durability in high-power scenarios. Evaluate the UG style flange compatibility with current system hardware. Compare performance specifications against alternative terminators if lower power ratings suffice for the intended use case.
Part Context
This component belongs to the RF Terminators category, specifically designed for waveguide applications. It complements other Fairview Microwave products such as adapters and isolators within the same frequency bands. The part supports system integration by providing reliable signal termination in complex RF environments.
