Product Detailed Parameters
- Description：WG TERMINATION WR-90 9-10 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Termination
- Frequency：9GHz ~ 10GHz
- RF Type：Radar
- Secondary Attributes：2W
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

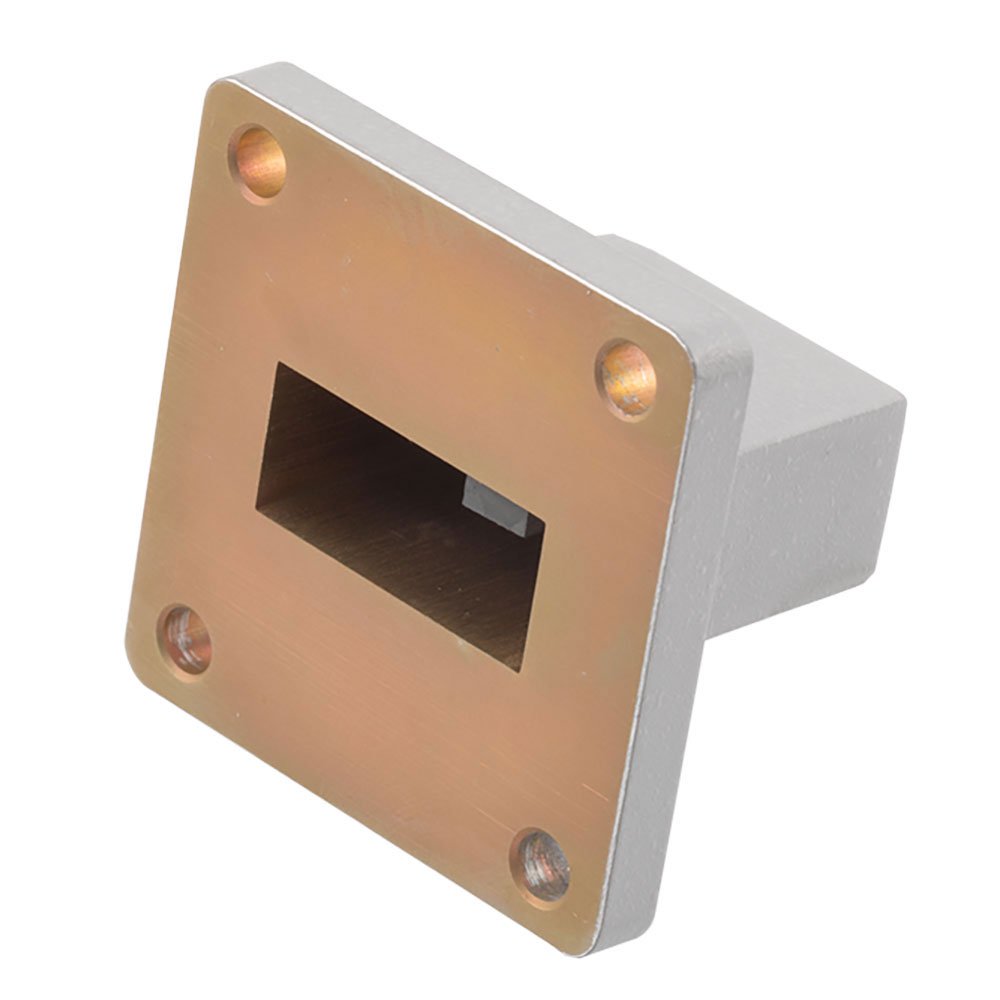

The FMW90TR1001 is a precision RF terminator designed for WR-90 waveguide applications. It operates within a frequency range of 9 GHz to 10 GHz and supports a maximum power rating of 2 Watts. The component features an aluminum body with a UG-style flange configuration, ensuring compatibility with standard waveguide interfaces. This termination device provides reliable signal absorption in microwave systems.
Feature Summary
- Precision waveguide termination for WR-90 dimensions
- Aluminum construction with UG-style flange interface
- Operates within 9 GHz to 10 GHz frequency band
Applications
- Microwave test and measurement setups
- Waveguide system load termination
- Radar and communication equipment testing
Procurement Notes
Verify the specific WR-90 waveguide compatibility and UG-style flange requirements against your system specifications before procurement. Confirm that the 2-watt power rating and 9-10 GHz operational range align with your application's thermal and frequency constraints. Ensure proper handling procedures are followed due to the precision nature of the aluminum waveguide components.
Selection Notes
Select this model when a fixed load termination is required for WR-90 waveguide lines operating between 9 and 10 GHz. The aluminum construction offers durability while maintaining precise electrical characteristics. Consider the UG-style flange for standard mounting compatibility. Evaluate if the 2-watt power handling meets the peak power demands of your specific microwave circuit design.
Part Context
Fairview Microwave specializes in RF, microwave, and millimeter-wave components. The FMW90TR1001 belongs to their line of waveguide terminators, which are essential passive components for absorbing signals in high-frequency systems. These products support various waveguide standards and frequency bands used in industrial and defense applications.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Verify exact dimensional and electrical tolerances if considering alternative manufacturers' waveguide terminators for WR-90 applications.
