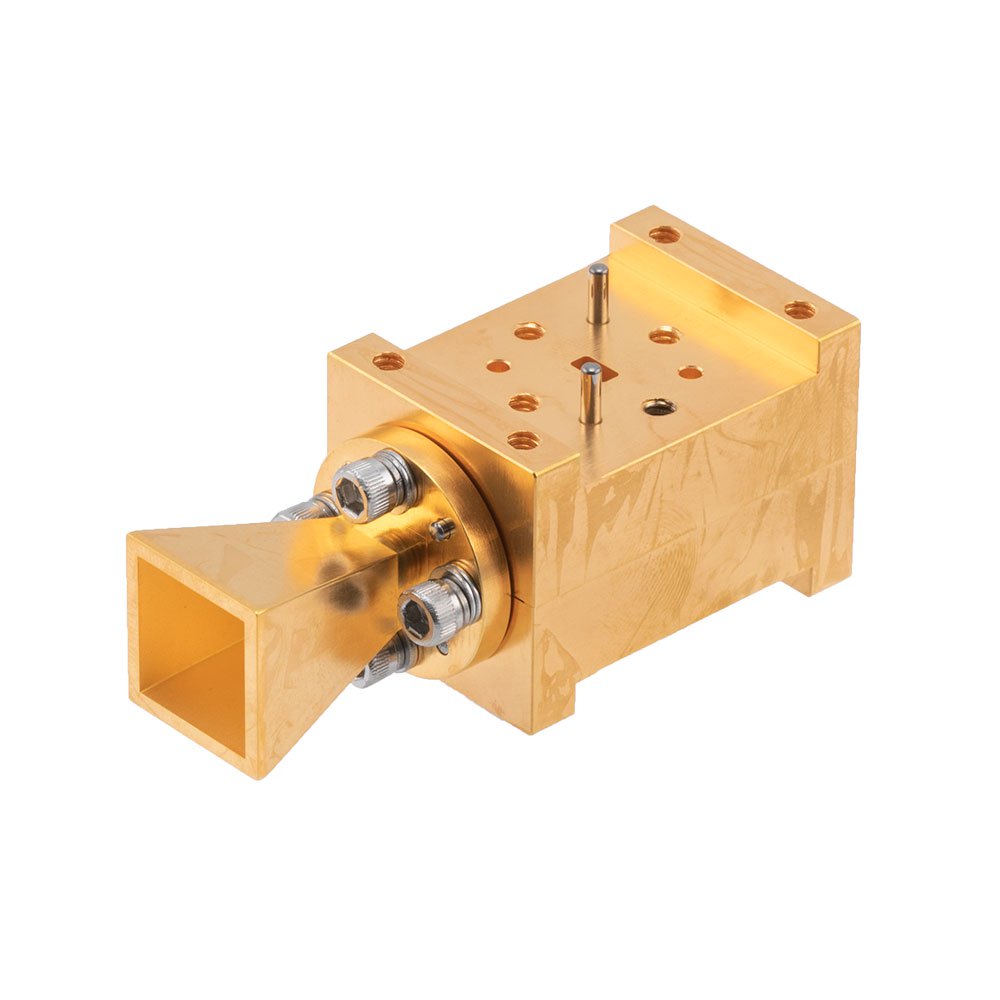

Antennas RF FMWAN012-14OMT product image

FMWAN012-14OMT

$4,728.02

Description：WG ANTENNA WR-15 50-75 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:cb2cb0df7628 Category: RF Antennas Brand: Fairview Microwave

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMWAN012-14OMT is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is WG ANTENNA WR-15 50-75 GHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FMWAN012-14OMT

Description：WG ANTENNA WR-15 50-75 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
RF Family/Standard：General ISM
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：60GHz
Frequency Range：50GHz ~ 70GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.3
Return Loss：-
Gain：15dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：Screw-Mount
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Waveguide Mount
Height (Max)：0.530" (13.46mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for FMWAN012-14OMT

FMWAN012-14OMT

Antennas RF Overview

The FMWAN012-14OMT is a WR-15 waveguide dual polarized horn antenna manufactured by Fairview Microwave. It operates within the 50 GHz to 75 GHz frequency range, providing a gain of 15 dBi. The antenna features an E-plane beamwidth of 33 degrees and an H-plane beamwidth of 28 degrees. It has a physical weight of 41.73 grams.

Antennas RF Feature Summary

Dual polarization capability for versatile signal transmission
WR-15 waveguide interface design
Optimized for high-frequency millimeter-wave applications

Antennas RF Applications

Millimeter-wave communication systems
High-frequency test and measurement setups
Radar system components
