FMWAN075-10ELNF

Antennas RF Overview

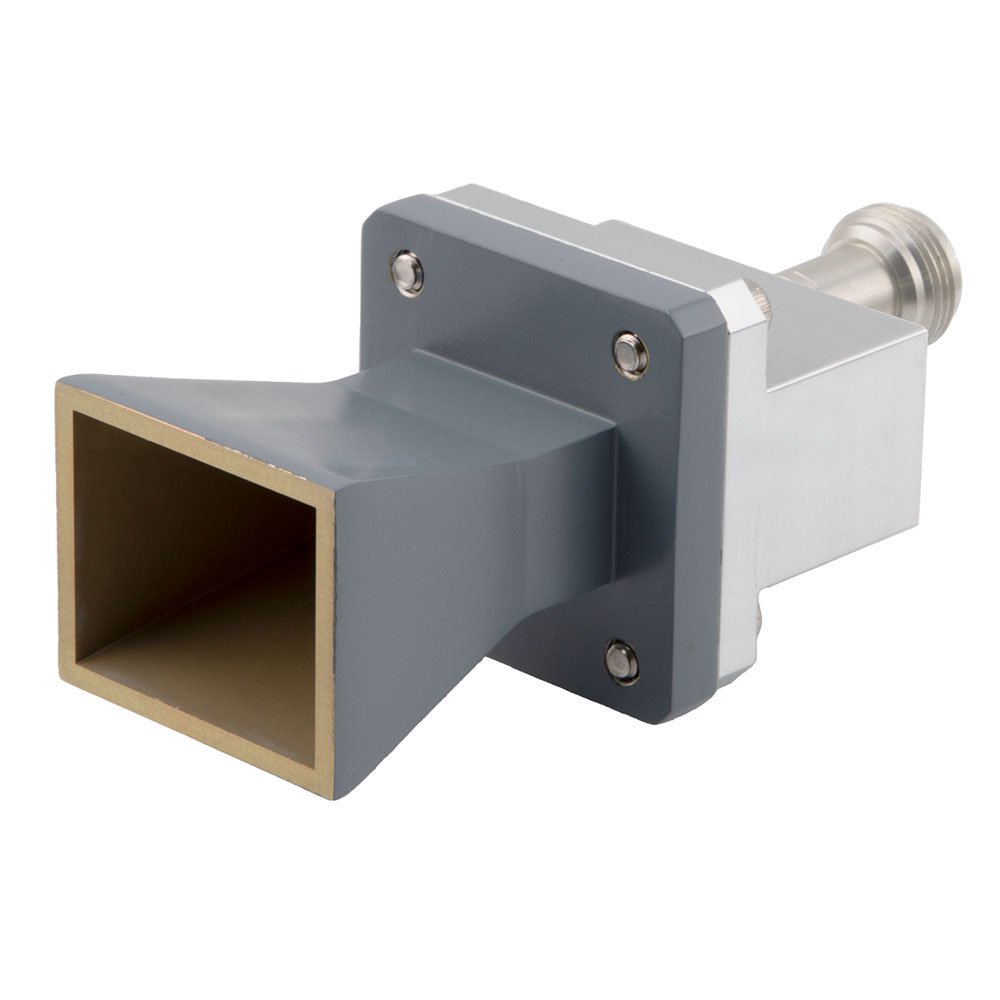

The FMWAN075-10ELNF is a standard gain horn antenna manufactured by Fairview Microwave. It operates within the WR-75 waveguide frequency range of 10 GHz to 15 GHz, with a center frequency of 12.5 GHz. The device provides a nominal gain of 10 dBi and features an N-type female connector for interfacing. Designed for general-purpose applications, it utilizes waveguide mounting methods to ensure stable performance in RF environments.

Antennas RF Feature Summary

• Standard gain horn design optimized for the WR-75 waveguide band
• Integrated N-type female connector for direct cable attachment
• Rugged construction suitable for general-purpose RF applications

Antennas RF Applications

• General-purpose RF signal transmission and reception
• Waveguide system integration at 10-15 GHz
• Test and measurement setups requiring standard gain antennas

Antennas RF Procurement Notes

Verify the specific connector type and mounting configuration against your system requirements before ordering. Confirm that the N-type female interface is compatible with your existing cabling infrastructure. Ensure the operating frequency range aligns with your application needs. Check current availability status as supply may be subject to manufacturer lead times or regional restrictions.

Antennas RF Selection Notes

Select this model when a standard gain solution is required for the 10-15 GHz range. The N-type connector offers convenience for lower-frequency interconnects compared to waveguide flanges. Consider the physical dimensions and weight if space constraints exist. Verify polarization requirements, noting typical horizontal and vertical beamwidth specifications for system alignment.

Antennas RF Part Context

This component belongs to Fairview Microwave's line of RF antennas and passive components. It serves as a bridge between waveguide systems and coaxial connections using the N-type interface. The product supports applications needing reliable performance in the C-band and upper microwave frequencies without complex waveguide transitions.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate other models from the same manufacturer offering similar gain and frequency characteristics if replacement is necessary.
