FMWAN102-15NM

Antennas RF Overview

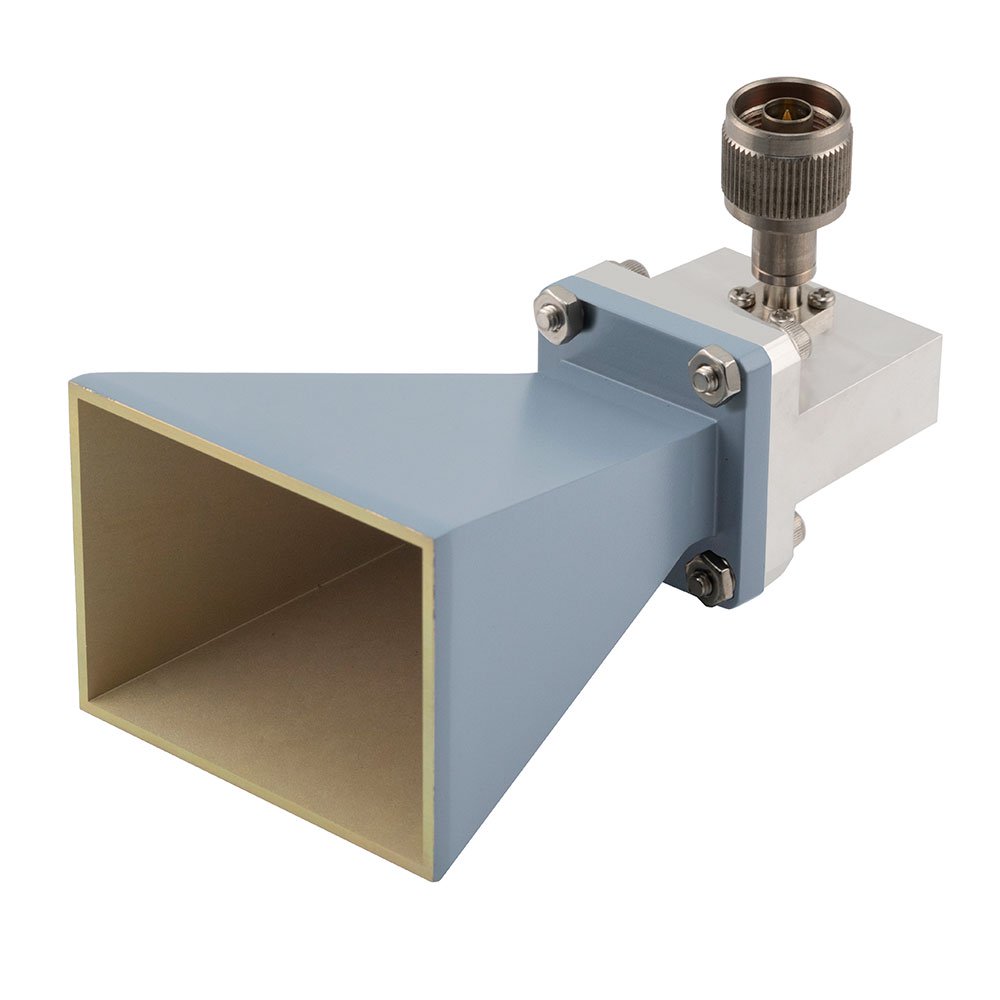

The FMWAN102-15NM is a WR-102 waveguide antenna manufactured by Fairview Microwave. It features a standard gain horn design with a nominal 15 dBi gain. The operational frequency range spans from 7 GHz to 11 GHz. The component utilizes a UG-385/U round cover flange interface for secure mounting and connection within waveguide systems.

Antennas RF Feature Summary

• Standard gain horn configuration optimized for directional signal transmission
• Integrated waveguide-to-coaxial adapter functionality
• Robust construction suitable for high-frequency waveguide applications

Antennas RF Applications

• Point-to-point microwave communication links
• Radar system test and measurement setups
• Satellite ground station uplink/downlink antennas

Antennas RF Procurement Notes

Verify the specific flange type and cable length options available, as the product line includes variations in cable lengths such as 305mm, 1.524m, 3.048m, and 7.62m. Confirm that the UG-385/U flange matches your existing waveguide infrastructure requirements before finalizing the order.

Antennas RF Selection Notes

Select this model when a 15 dBi gain is required within the 7-11 GHz band. Ensure compatibility with WR-102 waveguide dimensions. Consider the integrated coaxial adapter feature if direct cable connection is preferred over discrete adapters. Verify environmental sealing needs against the standard bag packaging.

Antennas RF Part Context

This part belongs to Fairview Microwave's WR-102 waveguide antenna series. It complements other models like the FMWAN102-10N which offers lower gain. The series provides standardized solutions for millimeter-wave applications requiring reliable waveguide interfaces and consistent radiation patterns.

Antennas RF Replacement Considerations

Direct substitutes include the FMWAN102-10N for lower gain requirements or other WR-102 horns from Fairview Microwave. Ensure any replacement maintains the UG-385/U flange standard and operates within the same 7-11 GHz frequency range.
