FMWAN102-20NF

Antennas RF Overview

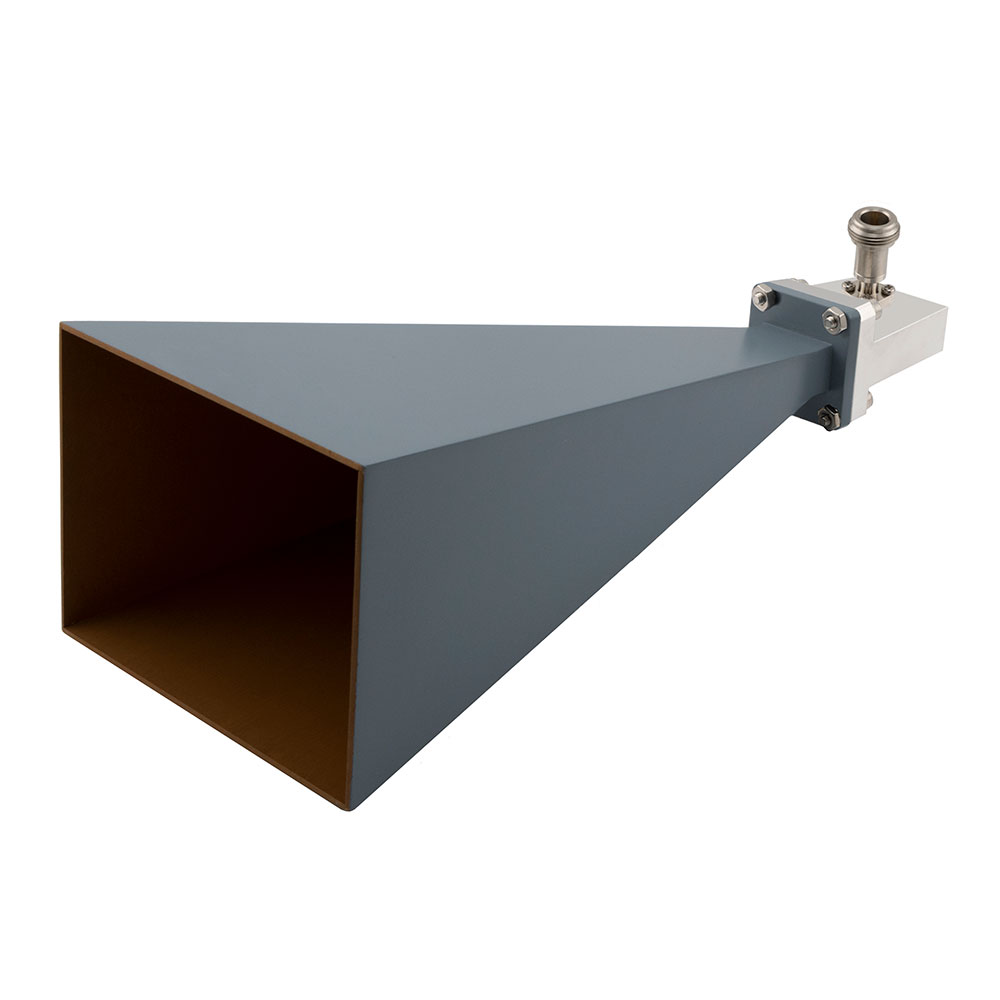

The FMWAN102-20NF is a standard gain horn antenna manufactured by Fairview Microwave, designed for WR-102 waveguide applications. It operates within a frequency range of 7 GHz to 11 GHz and provides a nominal gain of 10 dBi. The unit features an N Female connector interface and maintains a Voltage Standing Wave Ratio (VSWR) of 1.3. The maximum height of the antenna assembly is 93.98 mm.

Antennas RF Feature Summary

• Standard gain horn design optimized for WR-102 waveguide systems
• N Female connector termination for standardized interfacing
• Low VSWR performance ensuring efficient signal transmission

Antennas RF Applications

• General purpose RF testing and measurement setups
• Waveguide system characterization and calibration
• Antenna pattern measurement in laboratory environments

Antennas RF Procurement Notes

Verify the specific suffix 'NF' confirms the N Female connector configuration against your system requirements. Ensure compatibility with WR-102 waveguide dimensions. Confirm operational frequency alignment with your application needs before procurement.

Antennas RF Selection Notes

Select this model when a standard gain reference is required for the 7 GHz to 11 GHz band. The N Female interface suits test equipment with female ports. Consider the physical height constraints if space is limited in the test setup.

Antennas RF Part Context

This component belongs to Fairview Microwave's line of general purpose horn antennas. It serves as a calibrated reference source for measuring other antenna characteristics or system performance within the specified microwave frequency range.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical and electrical compatibility if considering alternative manufacturers.
