FMWAN159-15SF

$1,339.42

Description：WG ANTENNA WG COAX ADAPT WR-159-
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:282f45afced7 Category: RF Antennas Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMWAN159-15SF is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is WG ANTENNA WG COAX ADAPT WR-159-. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FMWAN159-15SF

Description：WG ANTENNA WG COAX ADAPT WR-159-
Series：-
Mfr：Fairview Microwave
Package：Bag
RF Family/Standard：General ISM
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：5.975GHz
Frequency Range：4.9GHz ~ 7.05GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.3
Return Loss：-
Gain：15dBi
Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
Termination：SMA Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Waveguide Mount
Height (Max)：3.100" (78.74mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for FMWAN159-15SF

FMWAN159-15SF

Antennas RF Overview

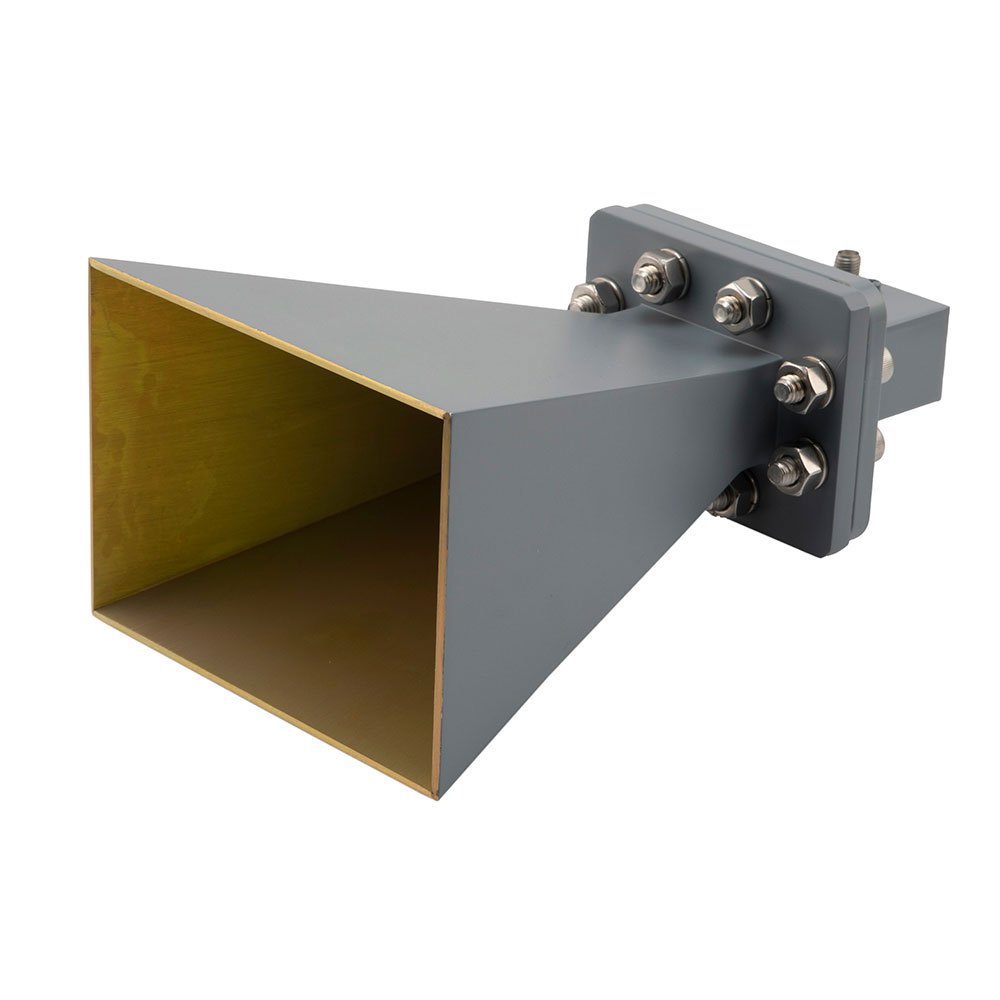

The FMWAN159-15SF is a WR-159 standard gain horn antenna manufactured by Fairview Microwave. It features an SMA female connector and provides a gain of 15 dBi. The operational frequency range spans from 4.64 GHz to 7.05 GHz, aligning with the WR-159 waveguide band specifications.

Antennas RF Feature Summary

Standard gain horn design for consistent radiation patterns
Integrated SMA female interface for direct cable connection
Optimized for WR-159 waveguide frequency bands

Antennas RF Applications

RF test and measurement setups
Waveguide system characterization
Antenna pattern measurements

Antennas RF Procurement Notes

Verify the SMA female connector compatibility with your existing RF cabling infrastructure. Confirm that the WR-159 dimensions match your mounting requirements. Ensure the 4.64 GHz to 7.05 GHz frequency range covers your specific application needs before procurement.

Antennas RF Selection Notes

Select this model when a standard gain reference is required within the WR-159 band. The SMA interface simplifies integration compared to flanged waveguide ports. Consider the 15 dBi gain level for link budget calculations in your specific deployment scenario.

Antennas RF Part Context

This component belongs to Fairview Microwave's line of waveguide antennas. It serves as a standardized radiating element for systems operating in the lower microwave frequencies defined by the WR-159 rectangular waveguide standard.
